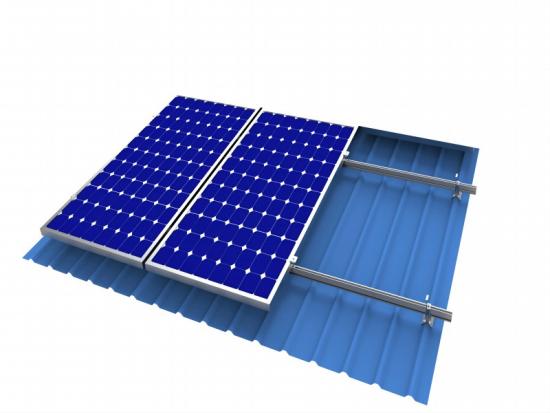

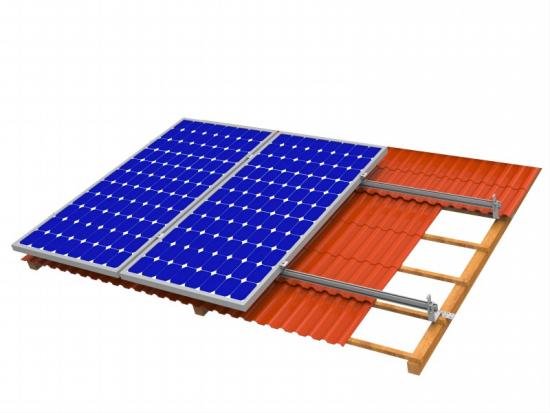

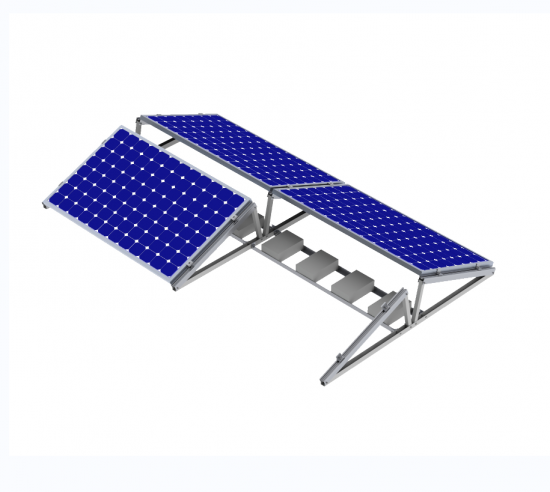

Roof Mounted Solar Panel Aluminum Alloy Mounting Structure

Home Solar Panel Mounting Structure

Roof Mounted Solar Panel Aluminum Alloy Mounting Structure

Roof Mounted Solar
Roof Mounted Solar
Roof Mounted Solar

Roof Mounted Solar Panel Aluminum Alloy Mounting Structure

The circumstance where roof photovoltaic brackets are installed includes sloped roofs and flat roofs. The installation must comply with the roof environment without damaging the inherent structure and self-waterproofing system. Roofing materials include glazed tiles, colored steel tiles, linoleum tiles, concrete surfaces, etc.
  • Item NO.:

    AT-SPM/ RF
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    3,000 MT/ Month

The environment where roof photovoltaic brackets are installed includes sloped roofs and flat roofs. The installation must comply with the roof environment without damaging the inherent structure and self-waterproofing system. Roofing materials include glazed tiles, colored steel tiles, linoleum tiles, concrete surfaces, etc. Different bracket solutions are used for different roofing materials. There are different bracket systems for different roofing materials.

roof solar mount kitsolar panel on roof pv panel roof mounting system

Product Description:

Product Name

Roof Mounted Solar Panel Mounting Structure

Material

Q235 SS304 SS316

Equipment

80T/200T/250T/300T/500T/800T Stamping machine CNC & EDM & Bending. etc.

OEM/ODM

Available

Panel Type:

Framed & Frameless

Wind load

<=60m/s

Tile Angle

0-60 degree

Surface treatment:

Hod dipped galvanization >=65um for Q235 steel and Average Anodizing coating thickness >=8-10um

Panel Orientation

Landscape/portrait

Packing

 15 years quality warranty, 25 years life span warranty



Product Overview:

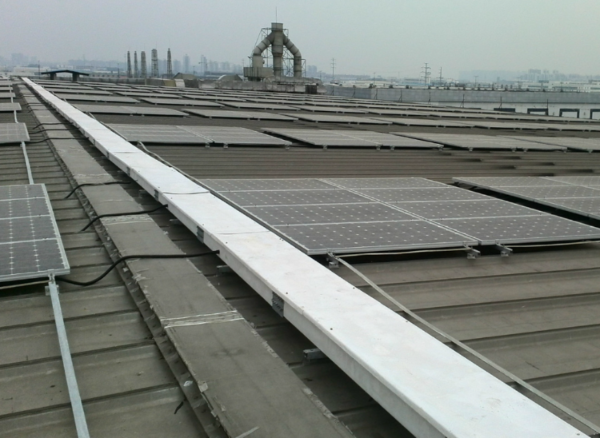

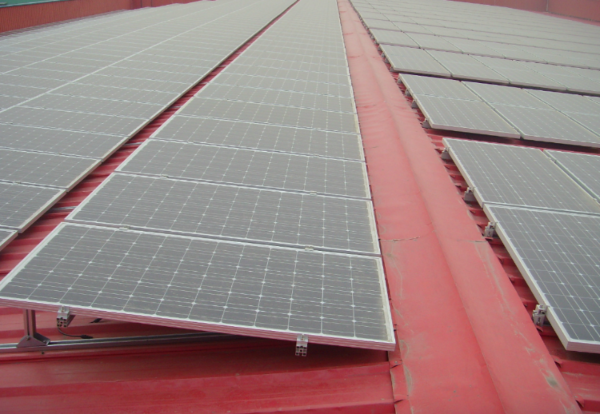

solar pv on roof

roof panel mount



Packaging Details:

Use custom pallets and film coverings to protect goods from damage in transit.

package solar solar panel mounting kit package




Qingdao Altai Tower Co., Ltd



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
