Ground Mounted Solar Panel Mounting Aluminum Alloy Pole Structure

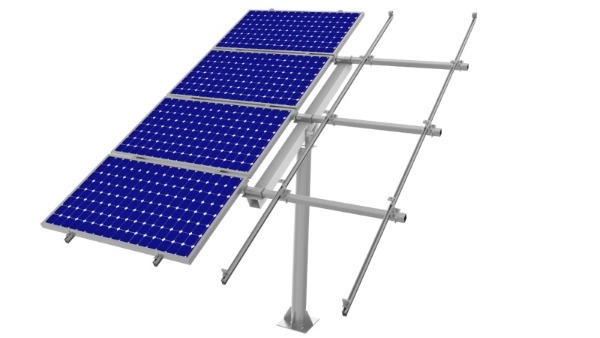

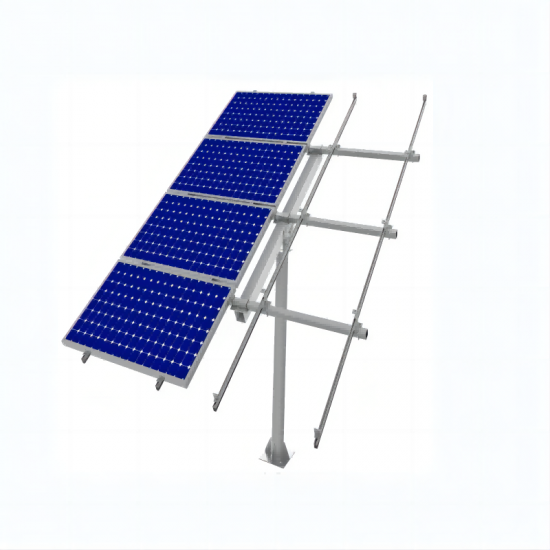

The single-column bracket only needs one single-row column support, and each unit has only a single-row bracket foundation. It mainly consists of columns, diagonal supports, guide rails (beams), component pressure blocks, guide rail connectors, bolt washers, nut sliders and other components.
  • Item NO.:

    AT-PM/ PVS
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    3,000 MT/ Month

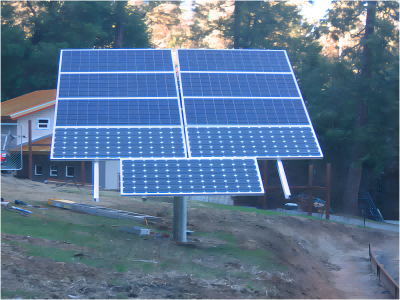

solar mounting pole

Product Description:

Product Name

Ground Mounted Solar Panel Mounting Pole Structure

Material

Q235 SS304 SS316

Equipment

80T/200T/250T/300T/500T/800T Stamping machine CNC & EDM & Bending. etc.

OEM/ODM

Available

Panel Type:

Framed & Frameless

Wind load

<=60m/s

Tile Angle

0-60 degree

Surface treatment:

Hod dipped galvanization >=65um for Q235 steel and Average Anodizing coating thickness >=8-10um

Panel Orientation

Landscape/portrait

Packing

 15 years quality warranty, 25 years life span warranty



Product Details:

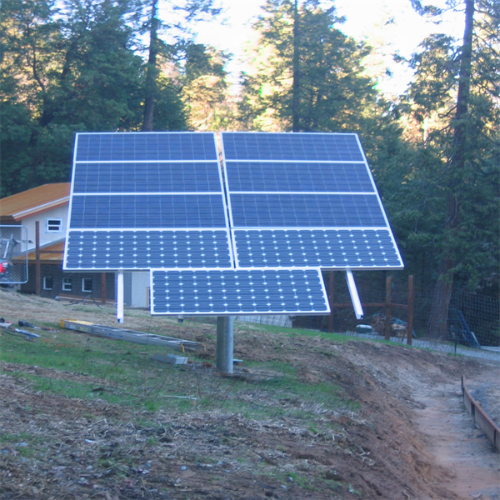

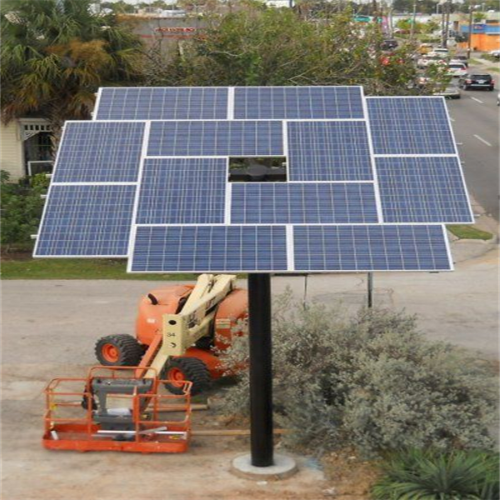

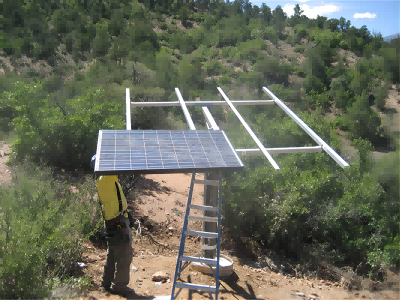

Whether it is installed on hard concrete ground or relatively soft soil, the stability of the single-tube bracket can be performed very well.





Packaging Reference:

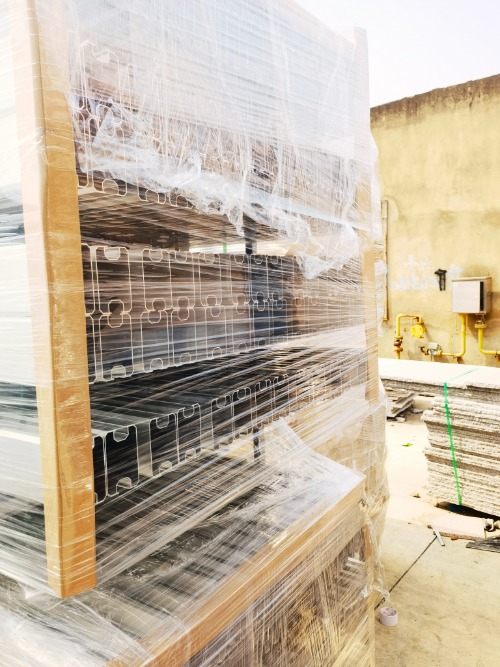

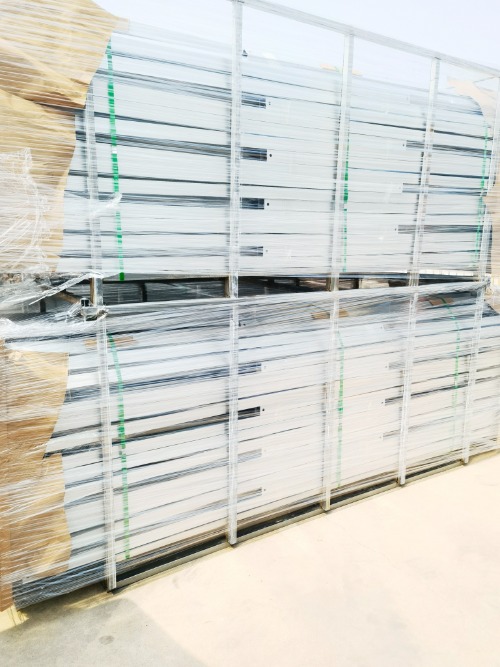

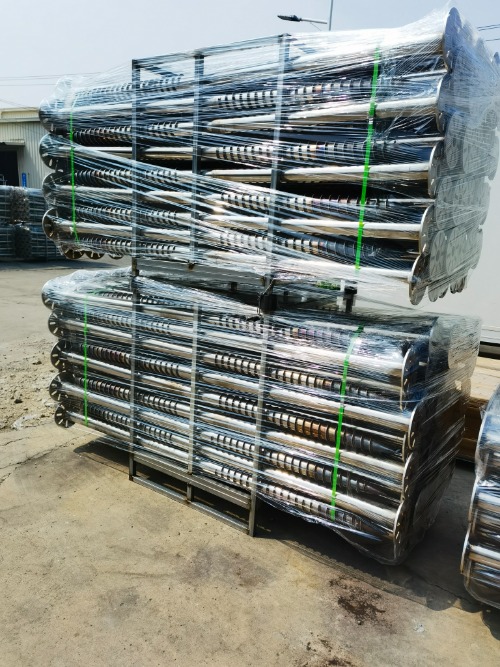

Use custom pallets and film coverings to protect goods from damage in transit. The ground screws are packaged separately.

package solar   solar panel mounting kit package



ground pv solar system mounting bracket package




Altai Tower Introduction



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
