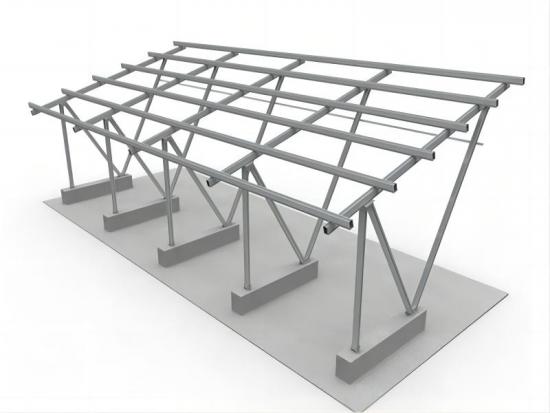

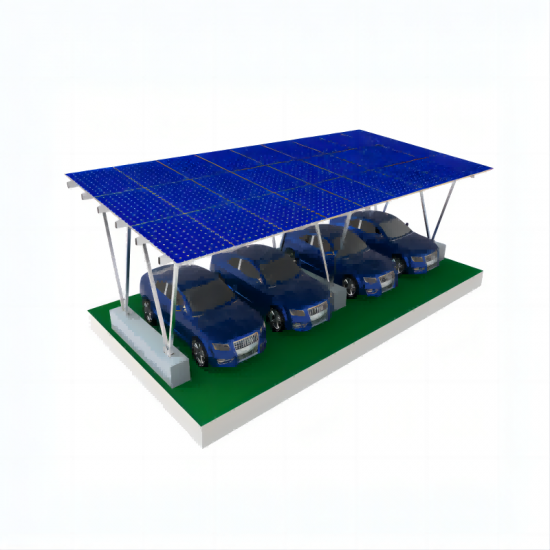

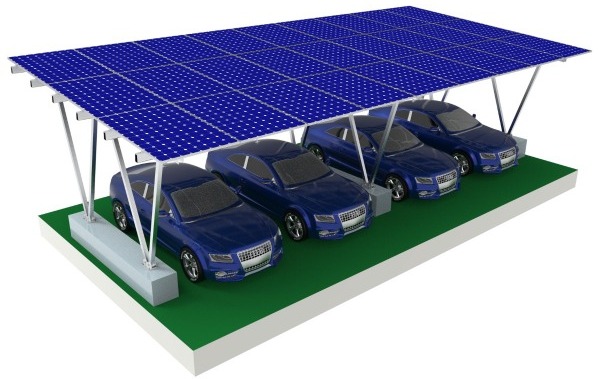

Solar Carports Mounting Structure combines photovoltaic power generation with the carport roof is the simplest combination of photovoltaics and architecture. It can not only realize all the functions of a traditional carport, but also bring power generation benefits to the owners.
  • Item NO.:

    AT-SPM/ CP
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    3,000 MT/ Month

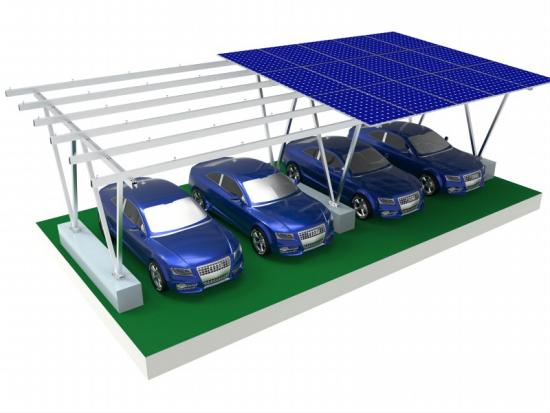

Solar photovoltaic carport combines photovoltaic power generation with the carport roof. This is the simplest combination of photovoltaic and architecture. It can not only realize all the functions of a traditional carport, but also bring power generation benefits to the owners. Generally, steel structure brackets are used, which are simple, generous, fashionable and beautiful, and are clean and environmentally friendly new energy sources, effectively alleviating society's environmental and energy pressure.

solar panel car pot

Product Description:

Product Name

Solar Carports Mounting Structure

Material

Q235 SS304 SS316

Equipment

80T/200T/250T/300T/500T/800T Stamping machine CNC & EDM & Bending. etc.

OEM/ODM

Available

Panel Type:

Framed & Frameless

Wind load

<=60m/s

Tile Angle

0-60 degree

Surface treatment:

Hod dipped galvanization >=65um for Q235 steel and Average Anodizing coating thickness >=8-10um

Panel Orientation

Landscape/portrait

Packing

15 years quality warranty, 25 years life span warranty

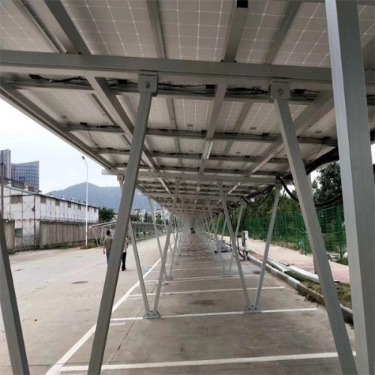

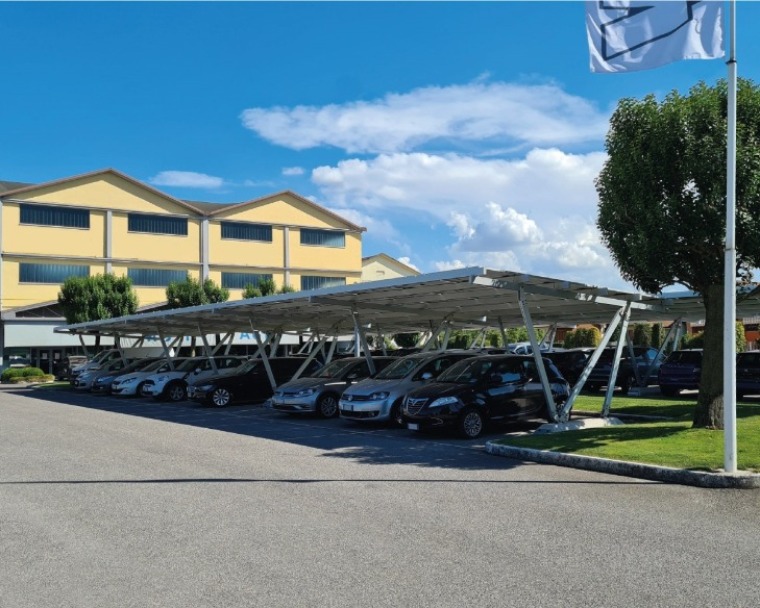

Product Display:

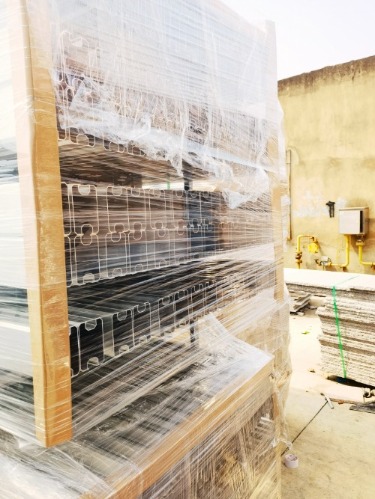

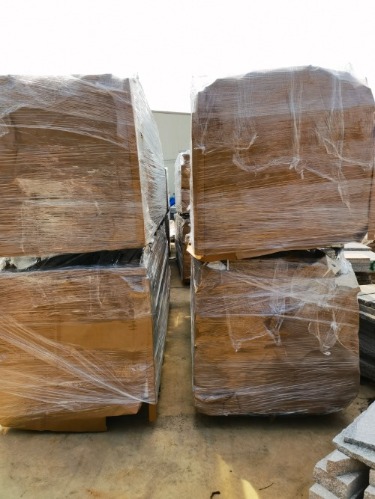

Packaging Reference:

Use custom pallets and film coverings to protect goods from damage in transit.

package solar            solar panel mounting kit package




Qingdao Altai Tower - Introduction



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
