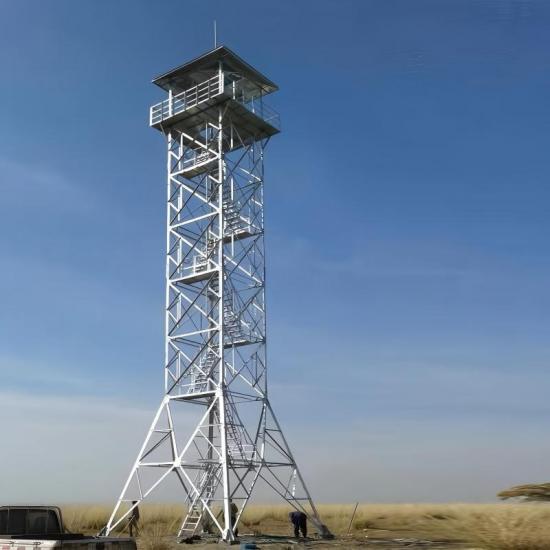

Galvanized Guard Tower Four-Leg Steel Structure Frame Observation Tower
Item NO.:
AT-G05Order(MOQ):
10 MTPayment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
Silver / as per customizationShipping Port:
Qingdao, ChinaLead Time：
2,000 MT / Month1. key Details:
Place of Origin: Shandong, China (Mainland)
Brand Name: Altai Tower or OEM
Model Number: AT-G20
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver: Shipped in 30 days after payment from Qingdao / designated port.
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
3. Technical Data
| 1. Design Code | ALT/294/ASC-AC |
| Structure Steel | |
| 2. Grade | High Tensil Steel |
| GB/T1591:Q345B, Q345C,Q3455D | |
| ASTM A572 Gr50 | |
| EN10025: S355JR, S355J0,S355J2 | |
| 3. Design Wind Speed | Max. 250 km/h |
| 4. Allowable deflection | 0.5 ~1.0 degree at operational speed |
| 5. Tension strength (Mpa) | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 235 |
| 7. Elongation (%) | 24 |
| 8. Impact strength KV (J) | 27(20°C)---Q345B(S355JR) |
| 27(0°C)---Q345C(S355J0) | |
| 27(-20°C)---Q345D(S355J2) | |
| Bolts & Nuts | |
| 9. Grade | Grade 4.8, 6.8, 8.8 |
| 10. Standards for mechanical properties | |
| 10.1 Bolts | ISO 898-1 |
| 10.2 Nuts | ISO 898-2 |
| 10.3 Washers | ISO 6507-1 |
| 11. Standards for Dimensions | |
| 11.1 Bolts | DIN7990, DIN931, DIN933 |
| 11.2 Nuts | ISO4032, ISO4034 |
| 11.3 Washers | DIN7989, DIN127B, ISO7091 |
| Welding | |
| 12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) |
| 13. Standard | AWS D1.1 |
| Marking | |
| 14. Method of marking of the members | Hydraulic Press Stamping or Laser Engraving |
| Galvanizing | |
| 15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 |
| 16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 |
| Test | |
| 17. Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test |
| Capacity | |
| 18. Maximum Production Capacity | 2,000 Metric Ton per Month |
Packaging Detail:
With standard sea-worthy packaging or as per requirements.
Hot-dip Galvanization:
The galvanizing workshop we have invested in is equipped with equipment imported from Italy and is galvanized in strict accordance with the American ASTM A123 standard.
1
1
Why Choose Us?
1. Strict quality control system and abundant technical reserves have created world-class products.
2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves.
3. Facilitating supports and low labor cost make the product price have great advantages in the world.
4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice.
5. China Power Grid Certification Level 1 supplier, you can safely choose and cooperate.
6. We are not only manufacturers and suppliers, but also your partners and technical support.
Full Experience in the Industry
Mature Production Line
1
1
Sophisticated Equipments
Professional Design & Engineering Team
The multi funtional guard tower is a robust and versatile structure designed for security, surveillance, and monitoring applications. Its height offers an elevated vantage point, making it ideal for various environments, including industrial sites, construction areas, and public events.

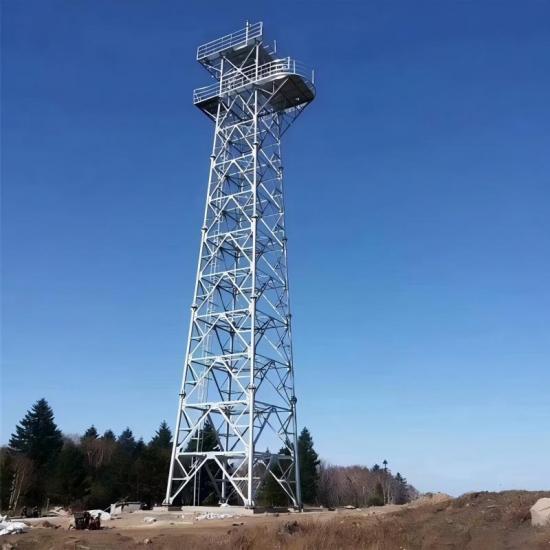

An observation tower is a tall structure designed to provide a vantage point for viewing the surrounding landscape. These towers are commonly used in various settings, including parks, nature reserves, urban environments, and industrial sites, to enhance visibility and facilitate activities such as wildlife observation, sightseeing, and surveillance.
The 25 meters guard tower is a tall, sturdy structure designed to enhance security and provide a panoramic view for observation. Its height makes it ideal for monitoring large areas in various settings, including industrial sites, military installations, and public events.
The multi function guard tower is a versatile structure designed to serve various purposes, including security monitoring, observation, and emergency response. Its adaptable design makes it suitable for different environments, such as industrial sites, construction zones, parks, and public events.

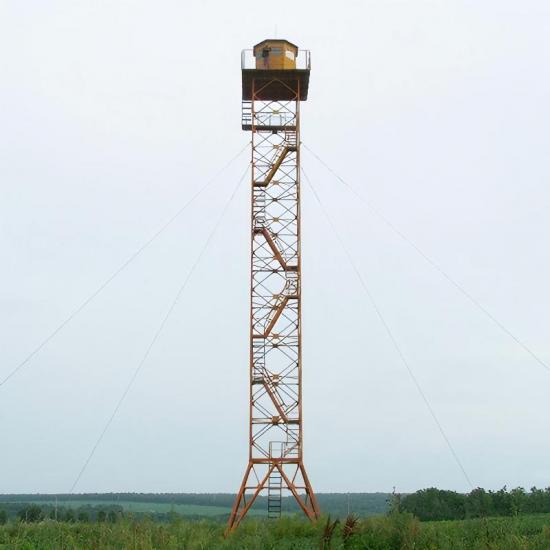

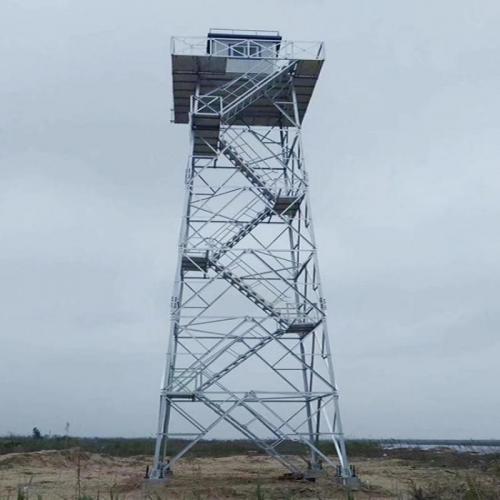

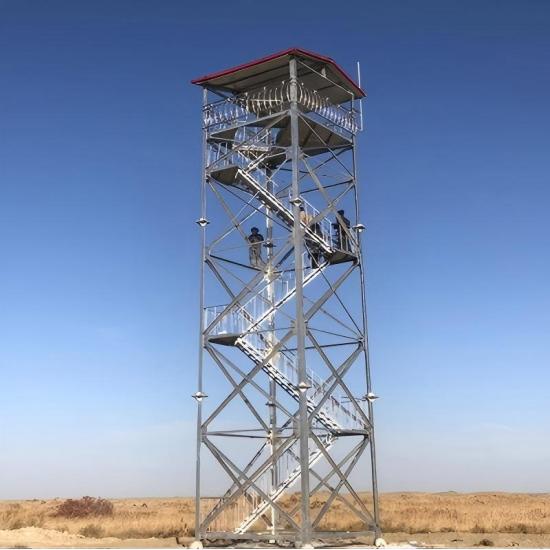

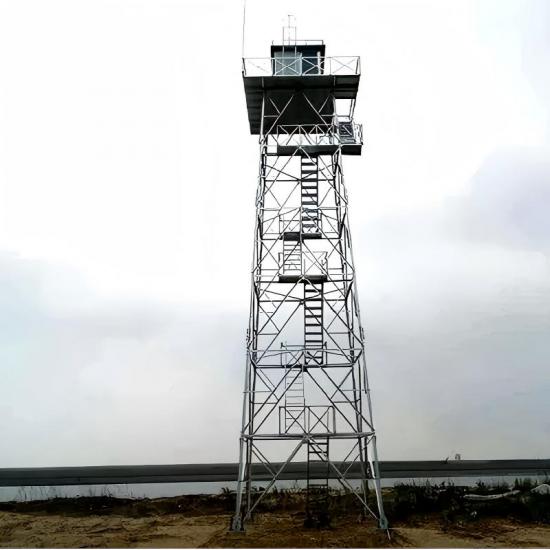

The guard tower is a kind of observation tower made of galvanized steel, which allows the guard to see the surrounding situation in 360 degrees, helping the guard to protect from the weather and better protect your facilities. We offer guard tower for sale and observation towers of different defense levels to provide solutions for different threat scenarios according to the customer's specifications.
