Item NO.:
AT-PT230Order(MOQ):
10 MTPayment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
Silver / as per customizationShipping Port:
Qingdao, ChinaLead Time：
3,000 MT/ Month230KV overhead lines consist of: wires, insulators, hardware, towers and their foundations, lightning protection wires and grounding devices, etc.
Description:
Product Name：230KV Transmission Line Tower
Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC。
Voltage Grade: 230KV
Wind Speed: 0--330KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420
ASTM A36, ASTM 572, GR50. GR65.SS400
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization Standard: ASTM A123
Nuts or Bolts: Grade 8.8
Welding Standard: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding (SAW).
Galvanization Standard of Bolts and Nuts: ISO146 OR ASTM/A153
Life Time: More than 25 years
Supply Ability: 3,000MT Per Month
High-voltage AC Transmission Lines Characteristics:
1) High reliability requirements for safe operation. Due to the large transmission capacity of high-voltage AC transmission lines, energy transmission lines, which are often the main power points and load centers, play a very important role in the power grid. Once a safety accident occurs, it will have a great impact on the economy.
2) The structural parameters of the line are high. High-voltage AC transmission lines have high towers, long insulator strings, many insulator pieces, and large tonnage. Not only is it difficult to repair after a collapse accident, but it also requires very high preparation for spare parts.
3) The operating parameters of the line are high. The rated voltage of high-voltage lines is relatively high, making the electric field intensity around charged objects higher.
4) The line is long and the geographical environment along the line is complex. High-voltage lines often pass through mountains and valleys, causing transportation difficulties and heavy maintenance workload.

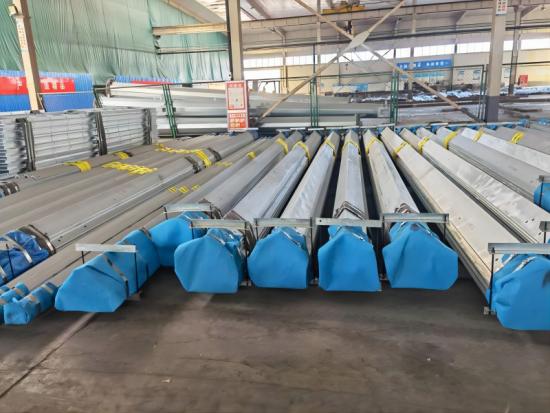

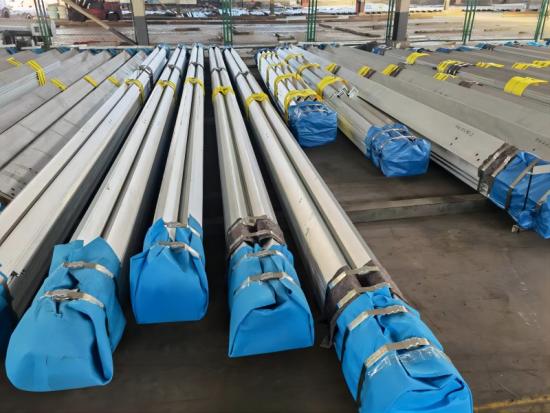

Packaging Detail:
Why Choose Us?
Full Experience in the Industry
In decades of years of exporting, we enjoy high reputation and credit standing.
Mature Production Line
Imported production system ensures sufficient productity, strict quality control and moderate operational cost.
Sophisticated Equipments
Professional Design & Engineering Team
Full hearted technicians are always ready to serve and support you.
Altai Tower Introduction
Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
500kV transmission line towers are uniquely designed to handle the large current loads and high voltages needed for long-distance, heavy power transmission applications. Typically 150 to 250 feet tall to provide ample ground clearance for conductors. Among the tallest towers.
110kV electric towers serve an important role in regional transmission and distribution at moderate voltages and tower heights. Lower than 230kV or 500kV systems. Set in concrete piers or steel grillage foundations anchoring the tower base.
33kV power towers provide medium voltage transmission and distribution that is vital for delivering power locally from the high voltage grid. Used for distribution of power to substations, towns and large facilities from grid.
Tubular transmission steel poles are widely used in high-voltage power transmission networks. Their tubular design provides several advantages, including enhanced structural strength, durability, and adaptability to various transmission line configurations. These towers play a critical role in ensuring the efficient and reliable transmission of electrical energy over long distances.
A transmission line tower is a tower-shaped building used for power transmission. Their structural characteristics are that all tower types are space truss structures. The rods are mainly composed of single equilateral angle steel or combined angle steel. The materials generally use Q235 (A3F) and Q345 (16Mn). The connections between the rods are made of thick steel.
A 4-legged angle steel microwave and antenna tower is a self-supporting lattice structure primarily used for telecommunication, broadcasting, and radar applications. These towers are engineered to support heavy equipment, resist environmental loads (wind, seismic forces), and ensure stable signal transmission over long distances. Their design leverages angle steel components for durability, modularity, and ease of assembly.
1. key Details:Place of Origin: Shandong, China (Mainland) Brand Name: Altai Tower or OEM Model Number: AT-G20 Surface treatment: Hot Dip Galvanizied or painted. 2.Packaging & Delivery: Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements. Deliver: Shipped in 30 days after payment from Qingdao / designated port. Tower members: One steel tower is separated into several bundles. Bolts: Packing material is robust nylon bag or steel drum. 3. Technical Data 1. Design Code ALT/294/ASC-AC Structure Steel 2. Grade High Tensil Steel GB/T1591:Q345B, Q345C,Q3455D ASTM A572 Gr50 EN10025: S355JR, S355J0,S355J2 3. Design Wind Speed Max. 250 km/h 4. Allowable deflection 0.5 ~1.0 degree at operational speed 5. Tension strength (Mpa) 470~630 6. Yield strength (t≤16mm) (Mpa) 235 7. Elongation (%) 24 8. Impact strength KV (J) 27(20°C)---Q345B(S355JR) 27(0°C)---Q345C(S355J0) 27(-20°C)---Q345D(S355J2) Bolts & Nuts 9. Grade Grade 4.8, 6.8, 8.8 10. Standards for mechanical properties 10.1 Bolts ISO 898-1 10.2 Nuts ISO 898-2 10.3 Washers ISO 6507-1 11. Standards for Dimensions 11.1 Bolts DIN7990, DIN931, DIN933 11.2 Nuts ISO4032, ISO4034 11.3 Washers DIN7989, DIN127B, ISO7091 Welding 12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) 13. Standard AWS D1.1 Marking 14. Method of marking of the members Hydraulic Press Stamping or Laser Engraving Galvanizing 15. Galvanization standard of steel sections ISO 1461 or ASTM A123 16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153 Test 17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test Capacity 18. Maximum Production Capacity 2,000 Metric Ton per Month Packaging Detail: With standard sea-worthy packaging or as per requirements. Hot-dip Galvanization: The galvanizing workshop we have invested in is equipped with equipment imported from Italy and is galvanized in strict accordance with the American ASTM A123 standard. 1 1 Why Choose Us? 1. Strict quality control system and abundant technical reserves have created world-class products.2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves.3. Facilitating supports and low labor cost make the product price have great advantages in the world.4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice.5. China Power Grid Certification Level 1 supplier, you can safely choose and cooperate.6. We are not only manufacturers and suppliers, but also your partners and technical support. Full Experience in the Industry Mature Production Line 1 1 Sophisticated Equipments Professional Design & Engineering Team
Various metal stamping parts used in power transmission towers and telecommunication towers. Accept customized drawings and OEM processing.
