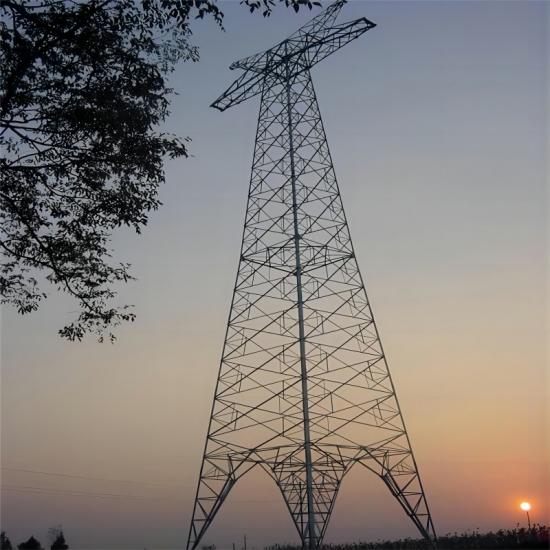

500kV transmission line towers are uniquely designed to handle the large current loads and high voltages needed for long-distance, heavy power transmission applications. Typically 150 to 250 feet tall to provide ample ground clearance for conductors. Among the tallest towers.
  • Item NO.:

    AT-E500
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    Silver / as per customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    3,000 MT/ Month

The 500kV (500,000 Volt) electric transmission line tower carries 1,000 to 1,500 Megawatts, about 1-1.5 million homes. ALTAI Angular steel tower, quadrilateral structure power tower, using Q355B high quality just as the main material of the tower body, steel structure, small deformation, Angle steel splicing-connection, parts light weight, can be fully manual handling and installation, low project cost, the tower body can be equipped with 6 layers of platform, each layer of platform can be hung 6 antennas.  ALTAI is a professional leading China 500KV angle steel Electric  tansmission tower manufacturers with high quality and moderate price.



Description

Product Name500KV Transmission Line Tower

Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC

Voltage Grade: 500KV

Wind Speed: 0--330KM/H

Design standard: TIA/EIA-222-G/F/H

Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420

ASTM A36,  ASTM 572,  GR50. GR65.SS400

EN/0025: S235JR   S235JO    S235JZ

EN/0025: S355JR   S355JO    S355JZ

Certificate: ISO9001:2008 SGS COC

Galvanized: Hot-dipped Galvanized

Galvanization Standard: ASTM A123

Nuts or Bolts: Grade 8.8

Welding Standard: AWS D1.1

Method: CO2 Shielded Arc Welding.   Submerged Arc Welding (SAW).

Galvanization Standard of Bolts and Nuts: ISO146 OR ASTM/A153

Life Time: More than 25 years

Supply Ability: 3000MT Per Month



Structure
• Typical 500kV structure height:150-250 feet single pole or lattice towers.
• Most 500kV towers are made of galvanized steel to support large loads (wind, ice, and conductors).
• Transmission conductors carry current from generator (source) to load (substation), where it is reduced to usable power and placed on distribution lines as energy for end users.
• Conductors are typically made of aluminum, steel, and copper.
• Other structures help carry the conductor in angles and straight lines (tangent) to minimize costs and impacts.
• Larger wires can carry larger capacity but require much larger structures.

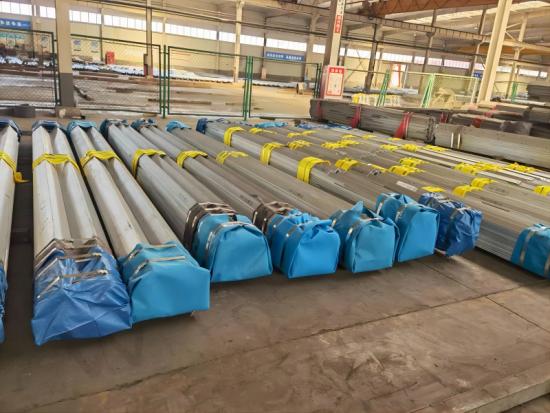

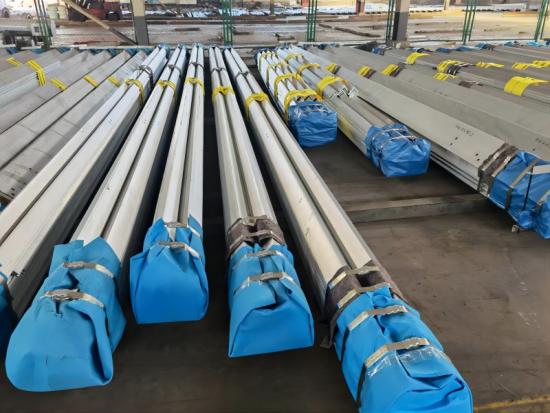

Packaging Detail

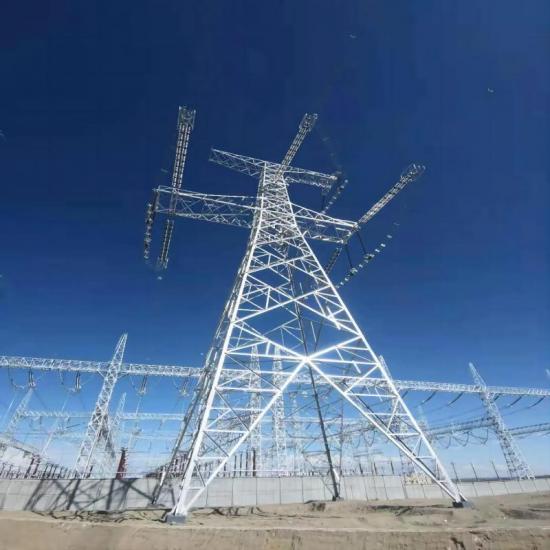

Project Display
