50M 3-legged Tubular Steel Antenna and Microwave Telecom Tower

Home Tubular Steel Tower

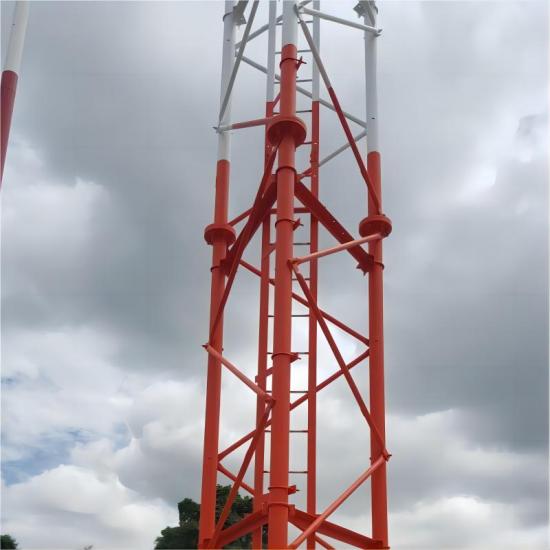

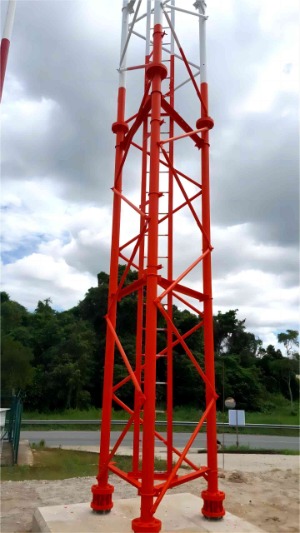

50M 3-legged Tubular Steel Antenna and Microwave Telecom Tower

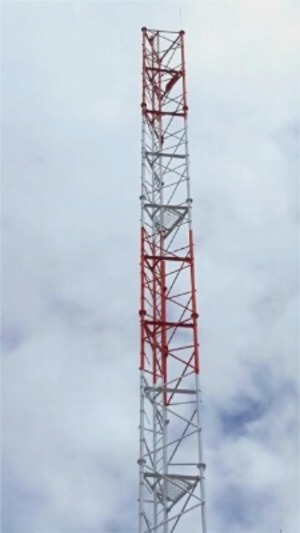

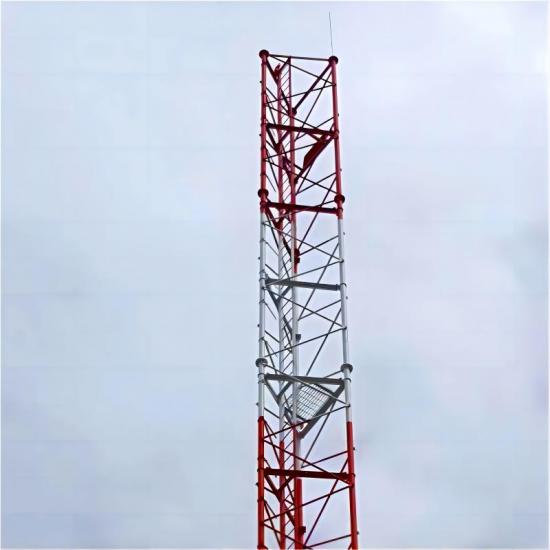

50m tubular tower
50m tubular tower
50m tubular tower
50m tubular tower

50M 3-legged Tubular Steel Antenna and Microwave Telecom Tower

The tower body of the three-tube tower is made of steel pipes. The three main steel tubes are planted on the ground as the skeleton, and are supplemented by some horizontal and inclined steel materials for fixation. Compared with the traditional angle steel tower, the cross-section of the three-tube tower is triangular. , the figure is also slimmer. Therefore, it has a simple structure, a small number of parts, convenient construction, and a small footprint, so it saves money.
  • Item NO.:

    AT-TT05
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    4,500 MT/ Month

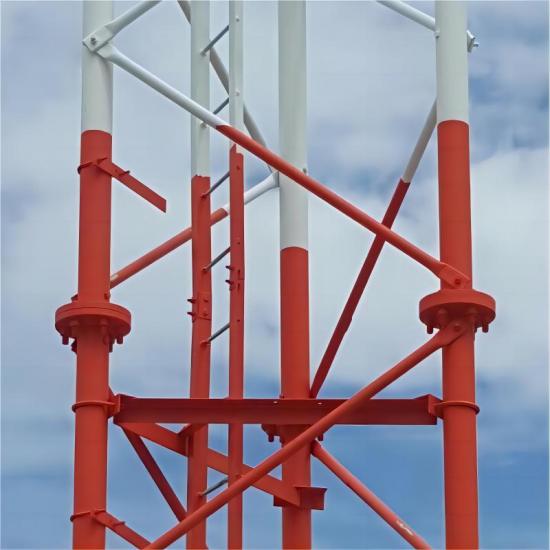

Seamless steel pipe is used as the tower column material, which has a small wind load coefficient and strong wind resistance. The tower columns are connected by external flanges, and the bolts are under tension and are not easily damaged, reducing maintenance costs. The tower columns are arranged in an equilateral triangle to save steel. It occupies a small area, saves land resources, and is convenient for location selection. The tower body is light in weight, and the new three-leaf plate foundation reduces the foundation cost. Truss structure design, convenient transportation and installation, short construction period. The tower shape is designed to change with the wind load curve, and the lines are smooth. It is not easy to collapse in rare wind disasters and reduces casualties of humans and animals.

tubular antenna tower   tubular telecommunication tower



Description:

Product Name:Tubular Steel Tower

Type: Telecommunication Tower

Design Software:MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC。

Height: 10M-120M

Wind Speed: 0--330KM/H

Design standard: TIA/EIA-222-G/F/H

Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.

ASTM A36, ASTM A575, GR50.

EN/0025: S235JR   S235JO    S235JZ

EN/0025: S355JR   S355JO    S355JZ

Certificate: ISO9001:2008 SGS COC

Galvanized: Hot-dipped Galvanized

Galvanization: ASTM A123/150 1461

Nuts or Bolts: Grade 8.8

Welding: AWS D1.1

Method: CO2 Shielded Arc Welding.   Submerged Arc Welding (SAW).

Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153

Life Time: More than 25 years

Supply Ability: 4,500 Tons Per Month

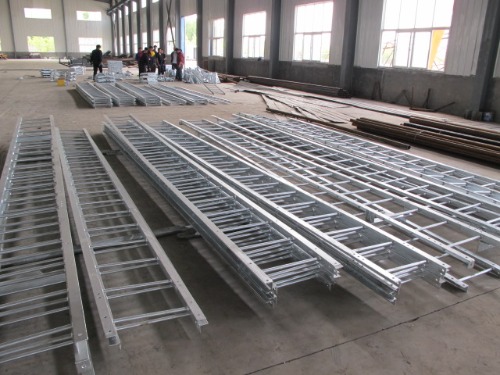

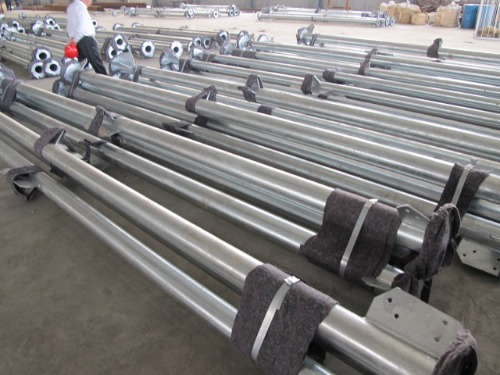

Packaging Reference:



steel tube package telecom tube tower

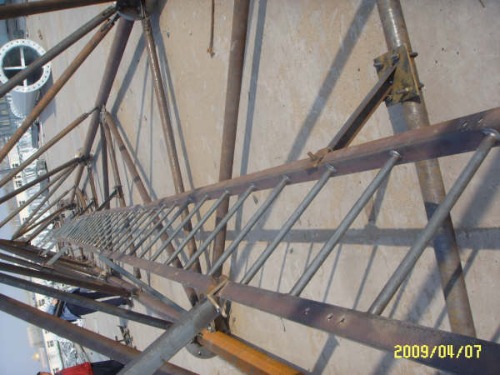

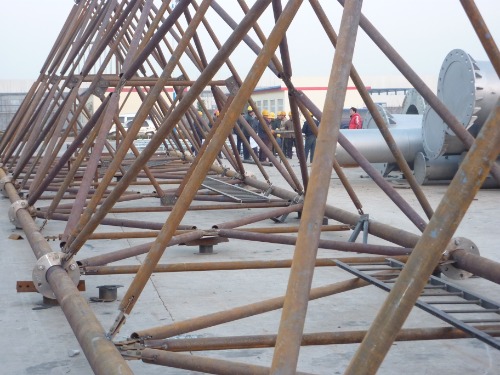

Trial Assembling Before HDG

Every telecommunication tower would be assembled before hot-dip galvanization, in case that some problems being neglect. So that our client can receive the stock without any concerns in quality.

trial assembling steel tower

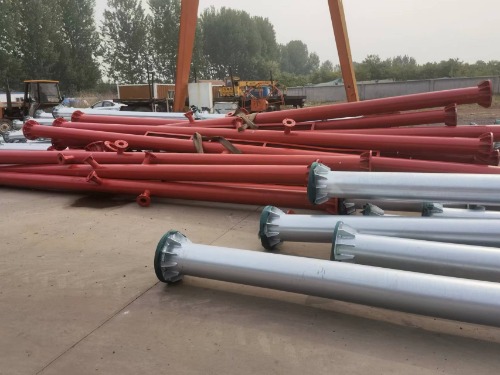

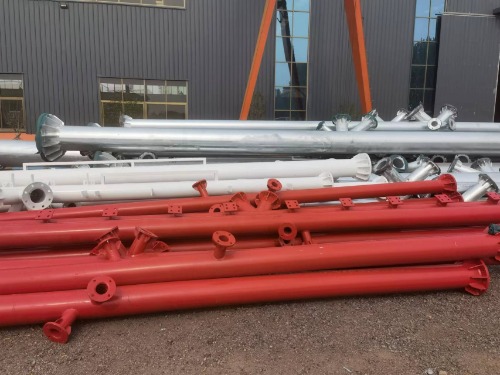

Color Customization Acceptable

painted tubes  steel tubes for tower

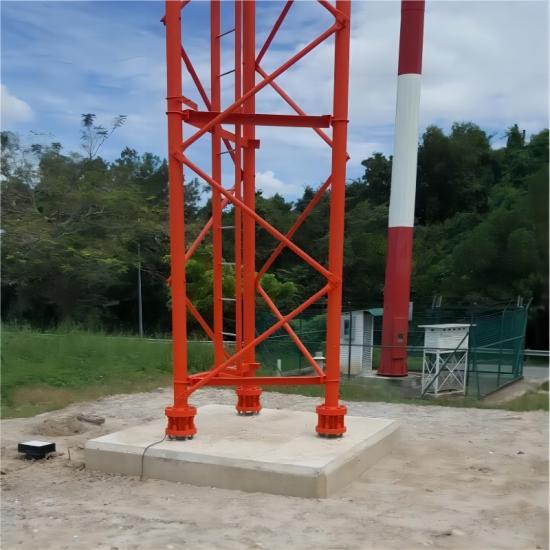

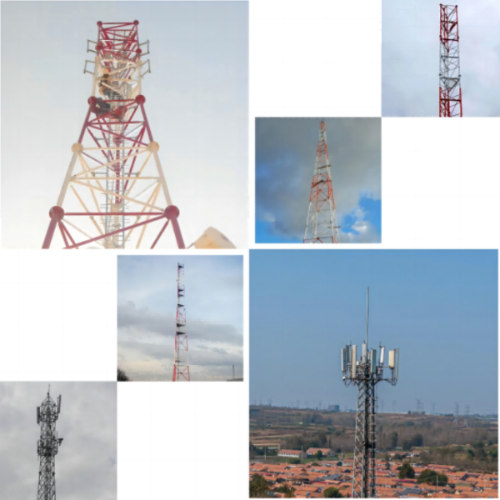

Project Display:

With full experience in telecommunication tower field, we can satisfy your utmost requirements with our highest standards of professionalism.

tubular steel tower

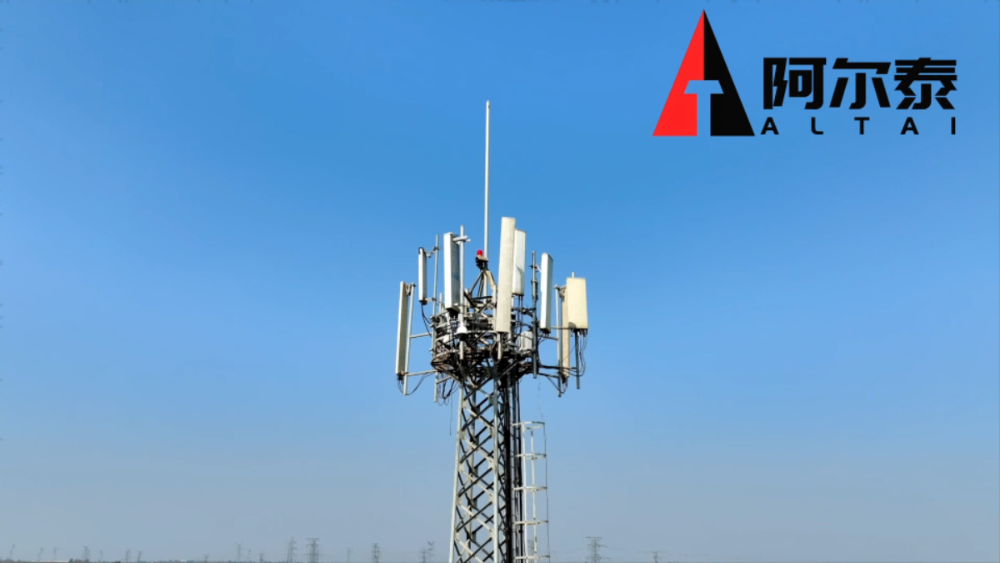

About us - Qingdao Altai Tower Co., Ltd



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.

tubular steel tower
