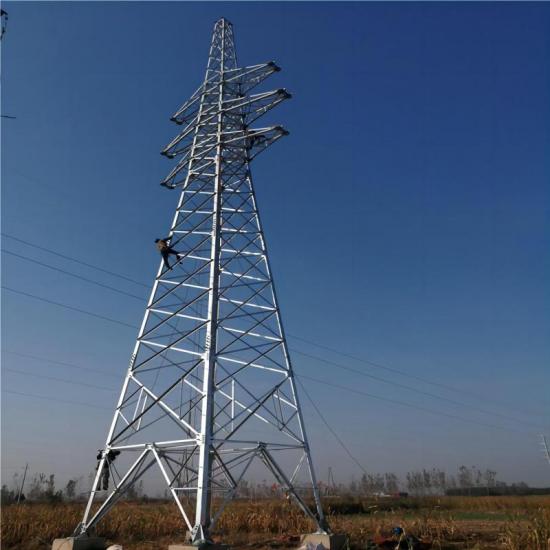

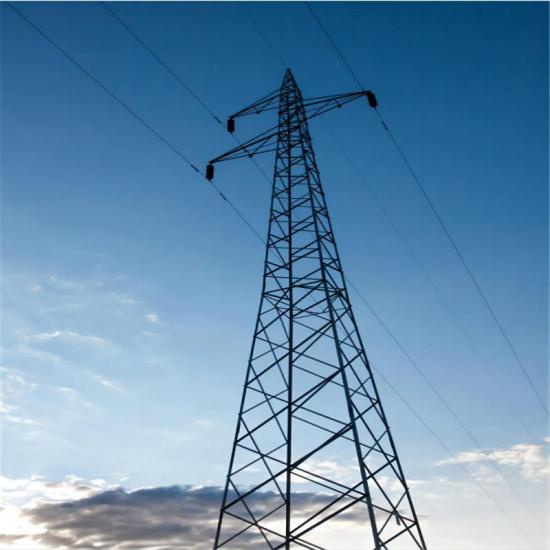

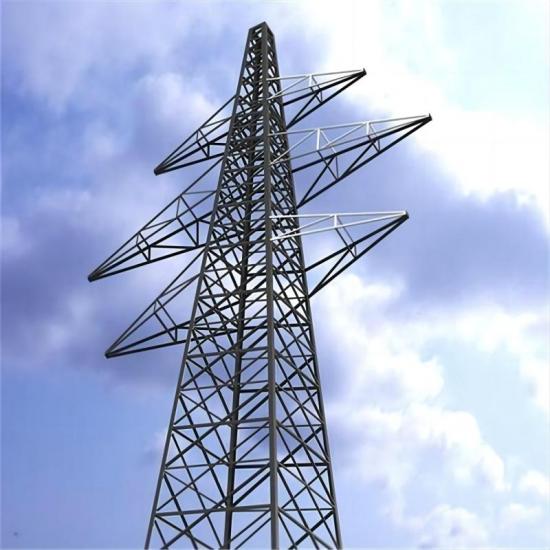

33kv Electric Power Transmission Line Tower

33kV power towers provide medium voltage transmission and distribution that is vital for delivering power locally from the high voltage grid. Used for distribution of power to substations, towns and large facilities from grid.
  • Item NO.:

    AT-PT033
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    Silver / as per customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    3,000 MT/ Month

35KV Electric Transmission Line

Transmission capacity: 2~10 MW

Conveying distance: 20~50 km



Description

Product Name33KV Transmission Line Tower

Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC.

Voltage Grade: 33KV

Wind Speed: 0--330KM/H

Design standard: TIA/EIA-222-G/F/H

Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420

ASTM A36,  ASTM 572,  GR50. GR65.SS400

EN/0025: S235JR   S235JO    S235JZ

EN/0025: S355JR   S355JO    S355JZ

Certificate: ISO9001:2008 SGS COC

Galvanized: Hot-dipped Galvanized

Galvanization Standard: ASTM A123

Nuts or Bolts: Grade 8.8

Welding Standard: AWS D1.1

Method: CO2 Shielded Arc Welding.   Submerged Arc Welding (SAW).

Galvanization Standard of Bolts and Nuts: ISO146 OR ASTM/A153

Life Time: More than 25 years

Supply Ability: 3000MT Per Month





Packaging Detail

angular steel electric tower 33kv power tower

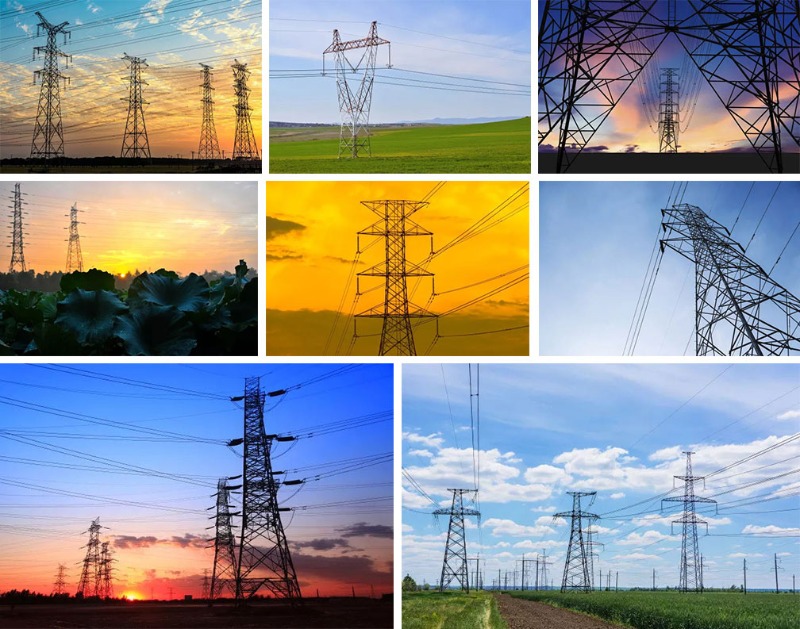

Project Display

transmission line tower



Why Choose Us?

1. Strict quality control system and abundant technical reserves have created world-class products.
2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves.
3. Facilitating supports and low labor cost make the product price have great advantages in the world.
4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice.
5. China Power Grid Certification 1st class supplier, you can safely choose and cooperate.
6. We are not only manufacturers and suppliers, but also your partners and technical support.





Full Experience in the Industry

transmission tower poweer pylon

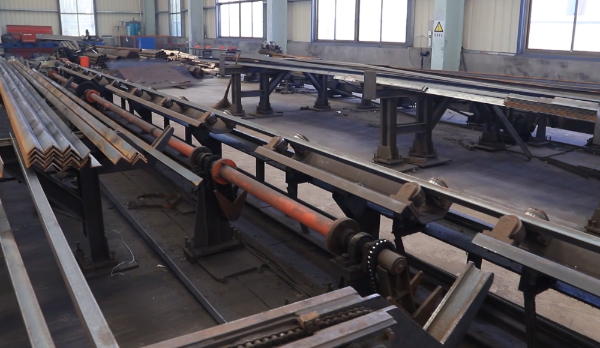

Mature Employees & Production Line

angular steel tower

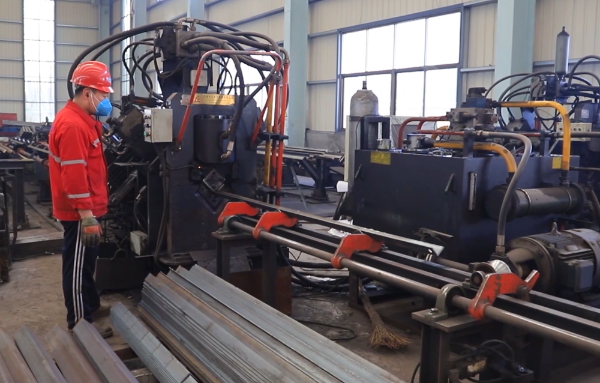

Sophisticated Equipments





Professional Design & Engineering Team










Altai Tower Introduce



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
