Item NO.:
AT-PT132Order(MOQ):
10 MTPayment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
As per CustomizationShipping Port:
Qingdao, ChinaLead Time：

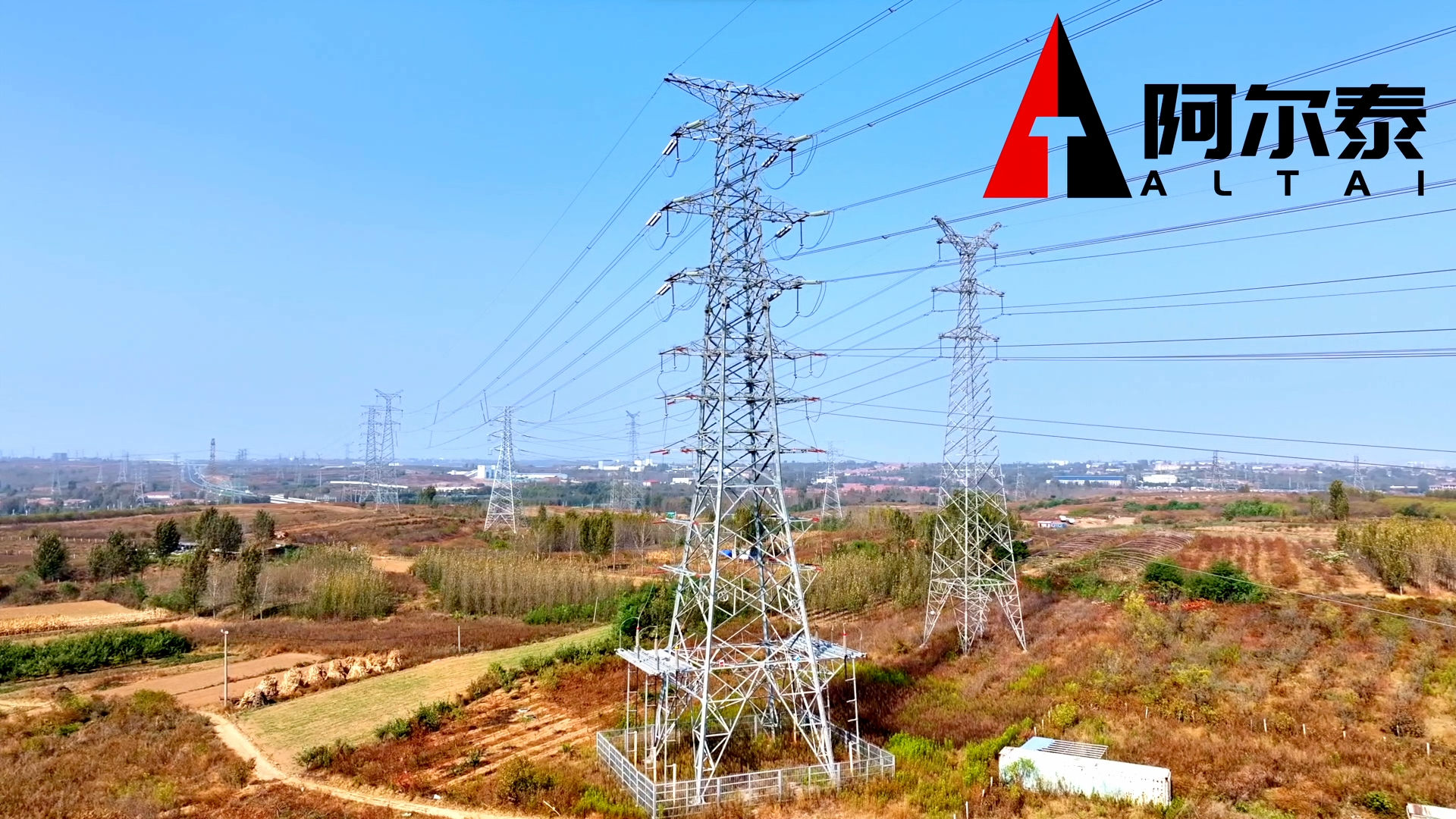

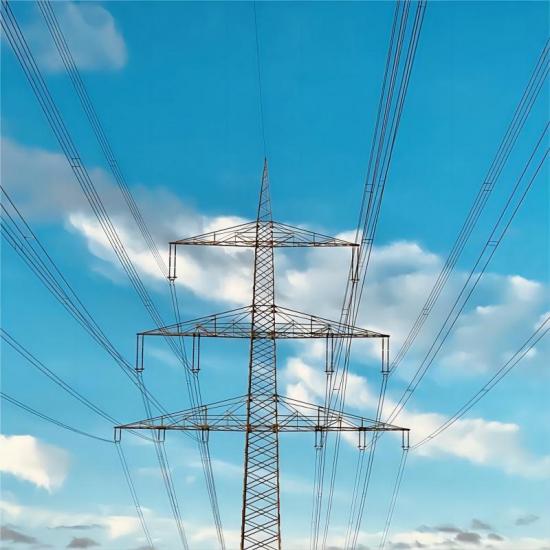

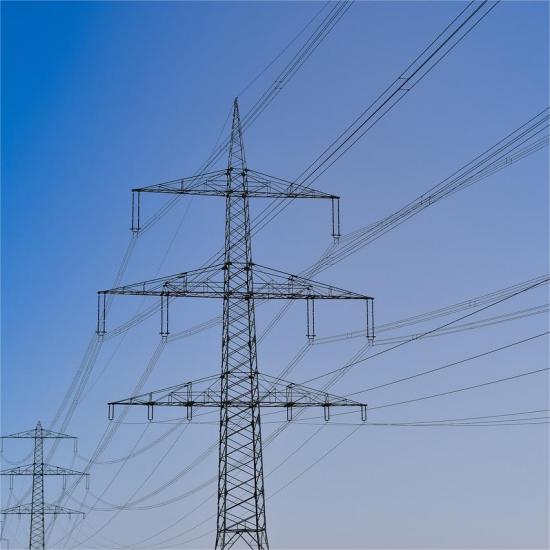

3,000 MT/ MonthA transmission line tower is a tower-shaped building used for power transmission. Their structural characteristics are that all tower types are space truss structures. The rods are mainly composed of single equilateral angle steel or combined angle steel. The materials generally use Q235 (A3F) and Q345 (16Mn). The connections between the rods are made of thick steel. Made of bolts, they are connected by shear force. The entire tower is composed of angle steel, connecting steel plates and bolts. Some components such as tower feet are welded into an assembly by several steel plates. Therefore, hot-dip galvanizing is extremely convenient for anti-corrosion, transportation and construction and erection.
Description:
Product Name：33KV Transmission Line Tower
Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC。
Voltage Grade: 33KV
Wind Speed: 0--330KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420
ASTM A36, ASTM 572, GR50. GR65.SS400
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization Standard: ASTM A123
Nuts or Bolts: Grade 8.8
Welding Standard: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding (SAW).
Galvanization Standard of Bolts and Nuts: ISO146 OR ASTM/A153
Life Time: More than 25 years
Supply Ability: 3000MT Per Month
Recognation by Clients:

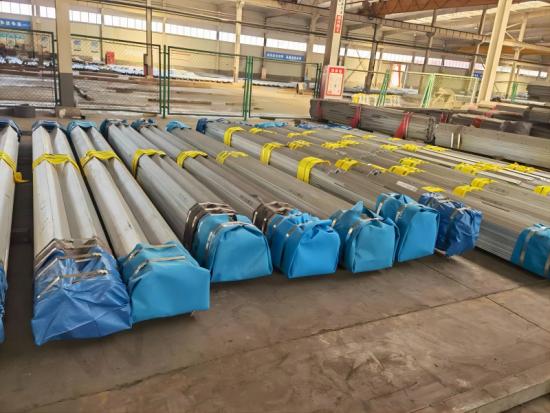

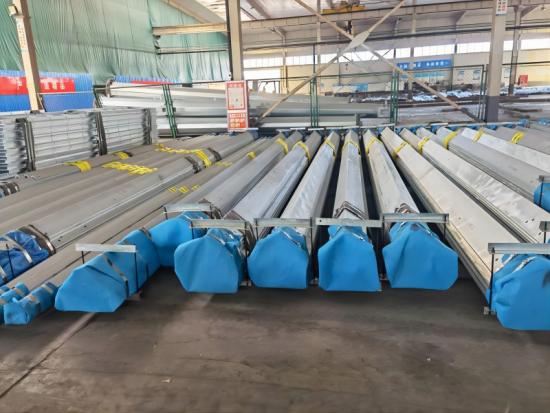

Packaging Reference:
Mature Employees & Production Line:
The advantage of a digital production line is that it can improve production efficiency, reduce production costs, and provide better production quality and flexibility. The automation and intelligence features of digital production lines can reduce human labor and improve production efficiency. Automated equipment and robots can complete a large number of production tasks in a short time while reducing the impact of human factors on production quality.
Sophisticated Equipments:
Precision processing equipment can minimize product quality problems. And strict quality management and inspection departments can eliminate all problems before the products are sent to customers.
Professional Design & Engineering Team:
With professional engineering team, we can design and fabricate transmisssion towers as your utmost requirements, as well as all-time standing by technicians to solve your technical problems and provide consulting services.
Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
