35M Cell on Wheels ( COW) Telecom Base Station

The base station equipment installed on the flatbed trailer can be used in emergency situations, for example, when the transmission tower of a certain base station collapses, or when an accident occurs to the base station equipment, the vehicle-mounted base station can be quickly and temporarily replaced to maintain communication in the community.
  • Item NO.:

    AT-C35
  • Order(MOQ):

    1 Set
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    20 Sets/ Month

cell on wheels for telecommunication



Product Description

Product Name:COW ( CELL ON WHEELS) TOWER

Design Software:MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC.

Height: 35 meters

Wind Speed: 0--300KM/H

Design standard: TIA/EIA-222-G/F/H

Material: GB/T700:Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420

ASTM A36,  ASTM A575,  GR50.

EN/0025: S235JR   S235JO    S235JZ

EN/0025: S355JR   S355JO    S355JZ

Certificate: ISO9001:2008 SGS COC

Galvanized: Hot-dipped Galvanized

Galvanization: ASTM A123/150 1461

Nuts or Bolts: Grade 8.8

Welding: AWS D1.1

Method: CO2 Shielded Arc Welding.   Submerged Arc Welding ( SAW).

Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153

Life Time: More than 20 years

Supply Ability: 20 SETS Per Month


The mobile base station vehicle consists of the following main parts:

1.1 Mechanical system

Mobile base station vehicles usually use trucks or trailers as chassis and have good maneuverability and portability. Fixed and adjustable brackets are mounted on the chassis to support communications equipment and antenna systems.

1.2 Power system

The mobile base station truck requires independent power supply, so it is equipped with a power supply system. The power system usually consists of generator, battery and inverter. The generator can provide stable AC power and can also charge the battery through charging. The inverter is responsible for converting DC power into AC power for use by communication equipment.

1.3 Communication equipment

The mobile base station vehicle is equipped with various equipment for wireless communication, including wireless transmitters, receivers, modems, etc. These devices are responsible for receiving and transmitting wireless signals, as well as performing signal processing and modulation and demodulation.

1.4 Antenna system

The mobile base station vehicle is equipped with an antenna system for receiving and transmitting wireless signals. Antenna systems usually include a main antenna and an auxiliary antenna. The main antenna is used to communicate with user equipment, and the auxiliary antenna is used to communicate with other base station vehicles or fixed base stations.



Product Details:

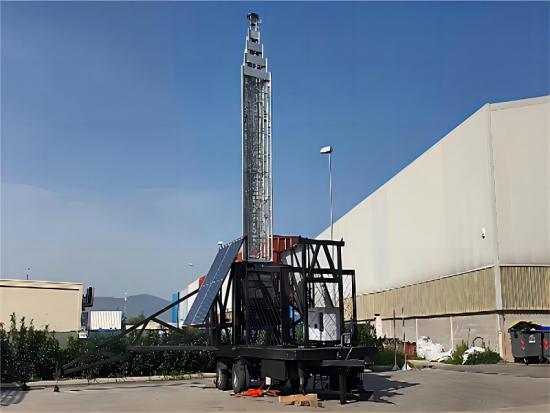

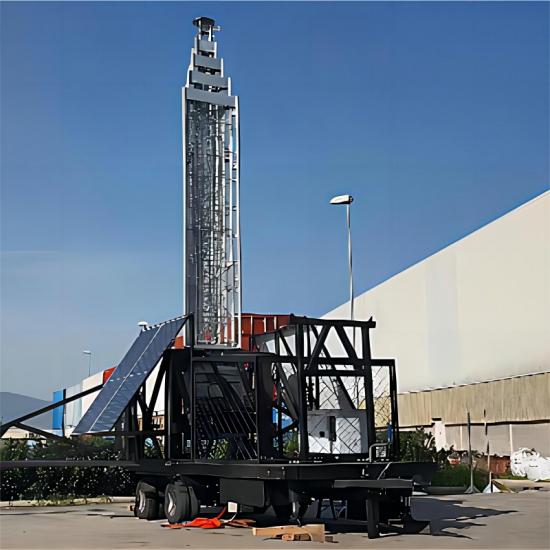

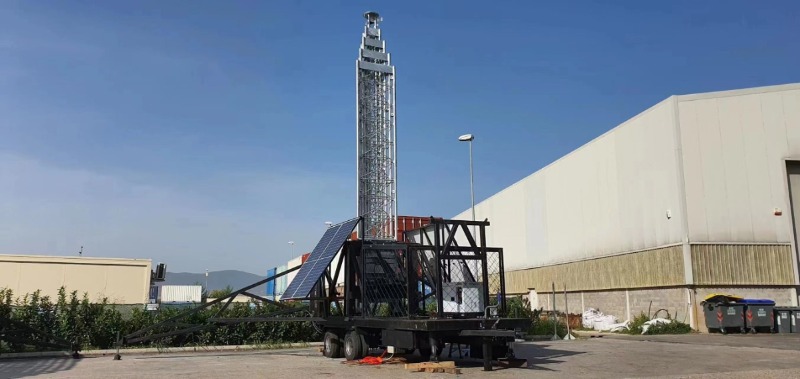

Cell on wheels showned is equiped with a solar panel, which can generate as assistant power.

base stationantenna load

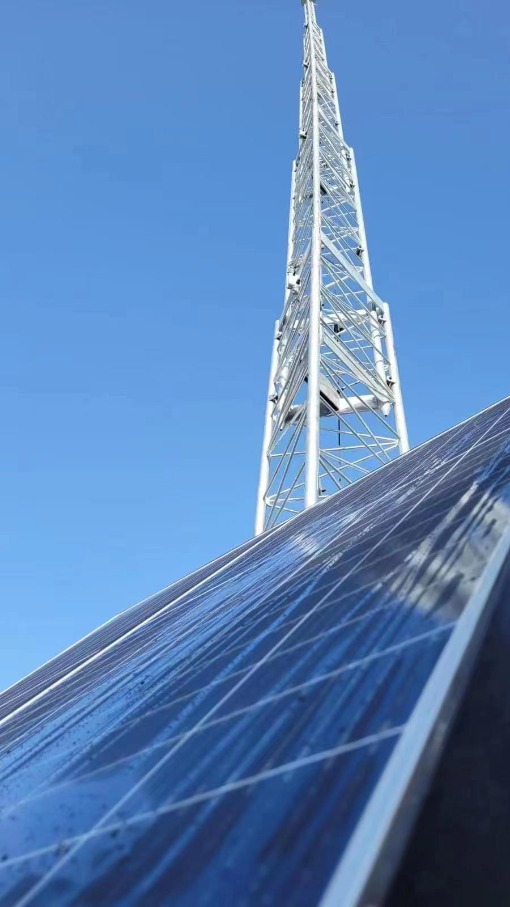

solar panel and cowmobile telecom tower

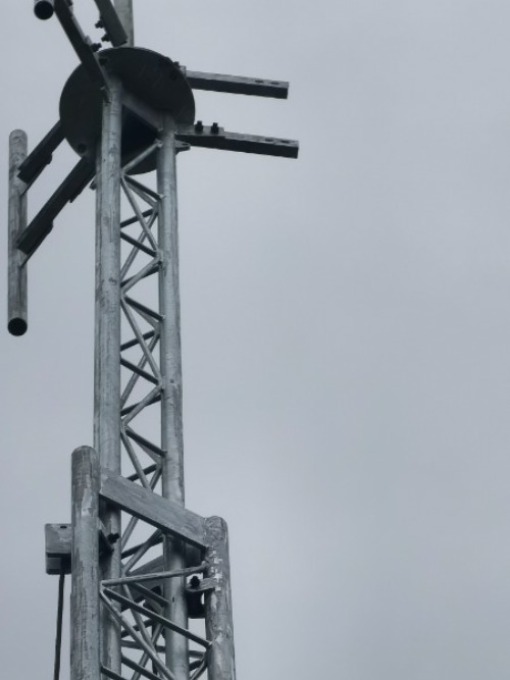

tower telecommunicationantenna and microwave tower


Shipment Reference:

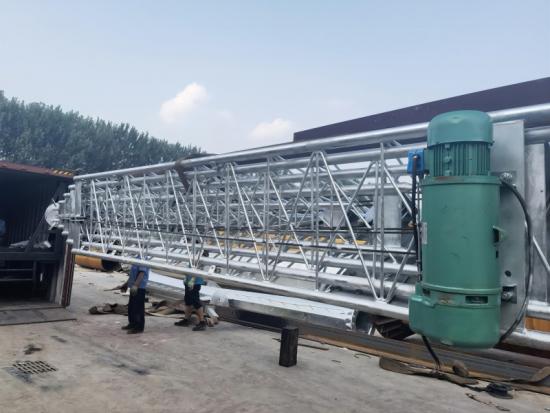

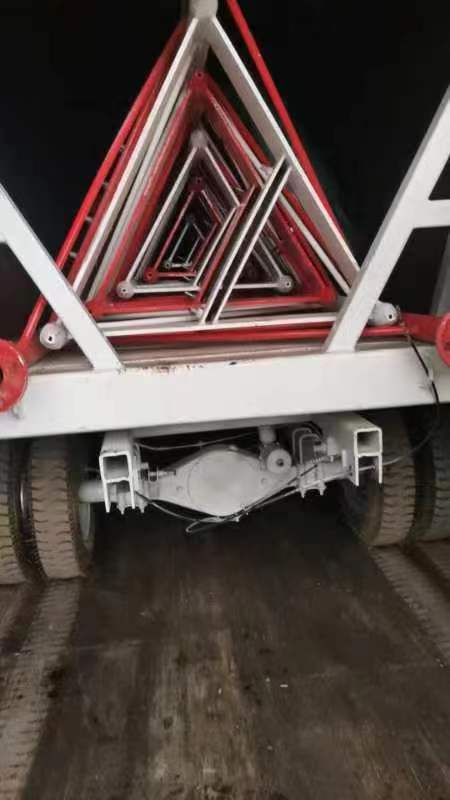

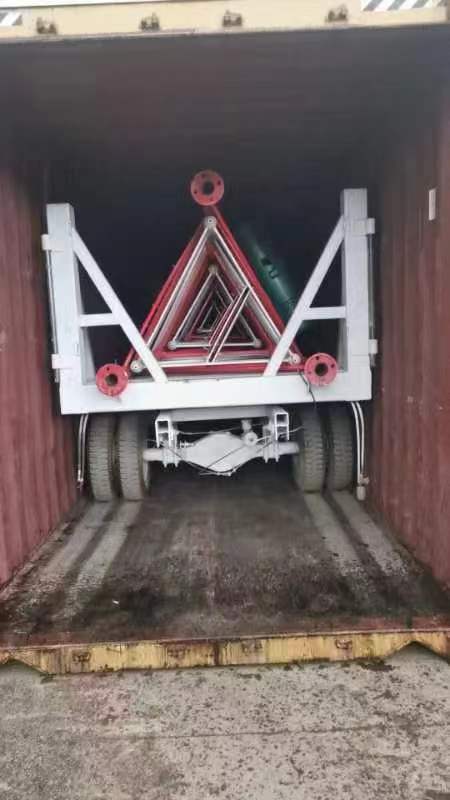

Generally, the cell on wheels are shipped in a container like as showned.

cow shipment mobile station in container

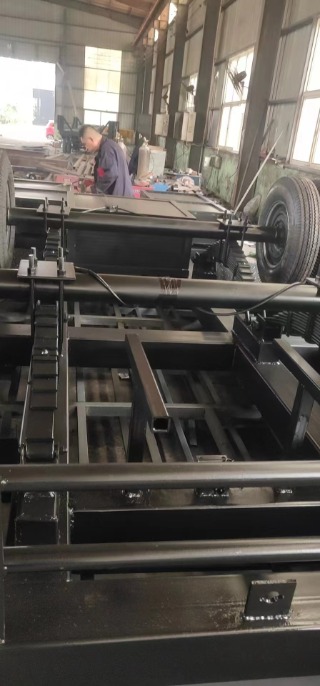

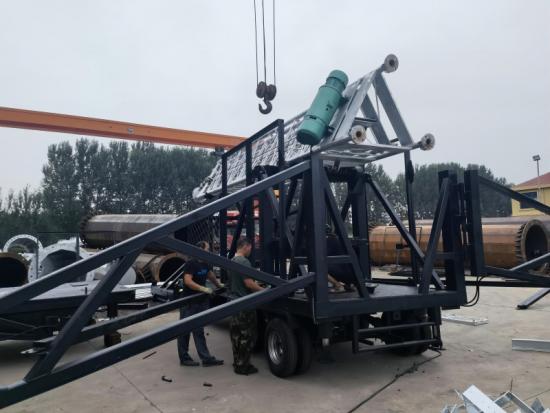

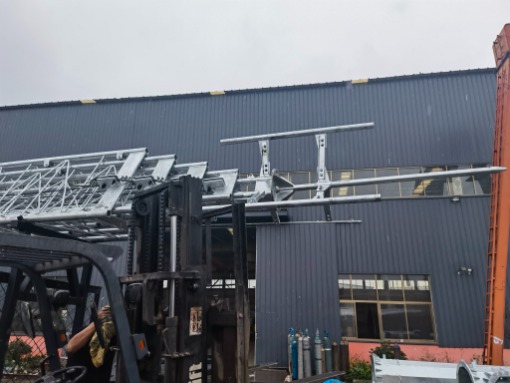

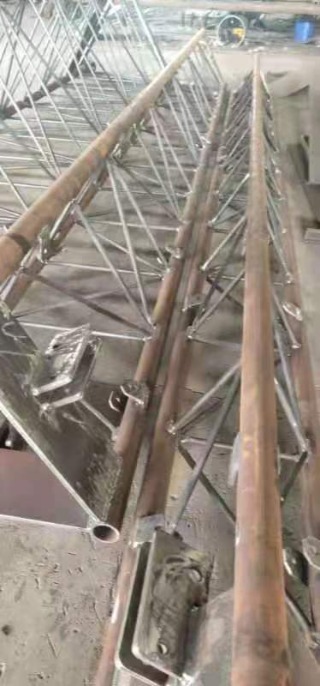

Production Line:

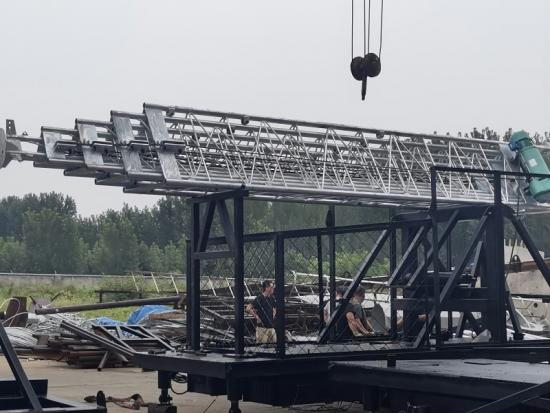

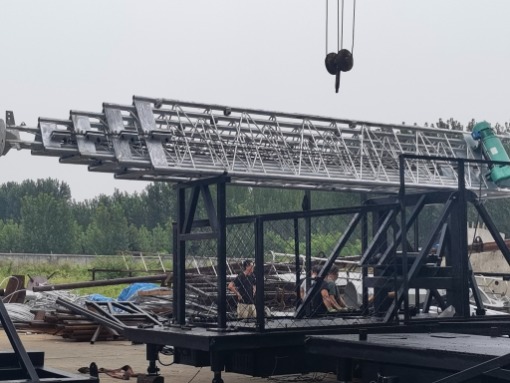

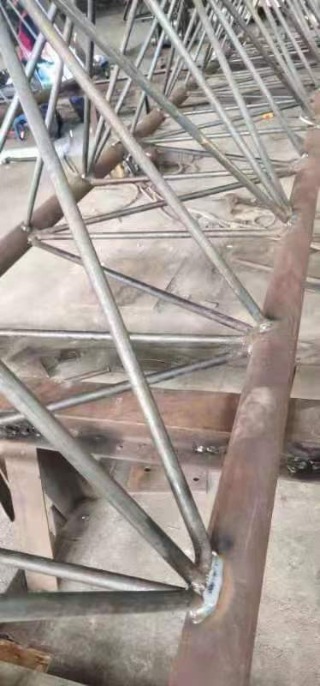

The antenna and microwave are fabricated separately, and then assembled before shipment after galvanization.

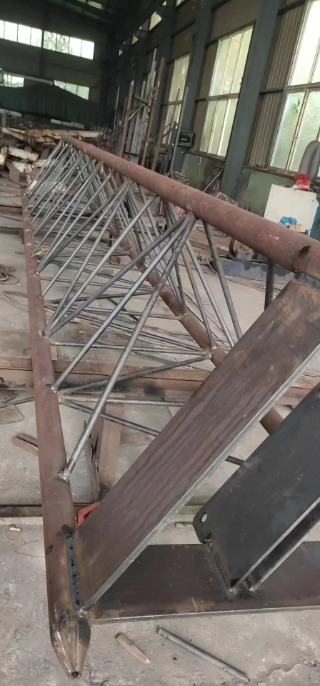

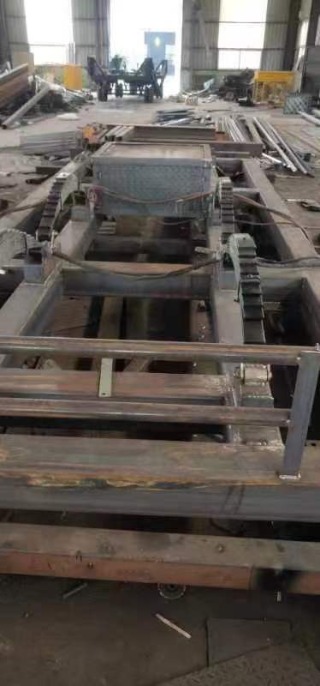

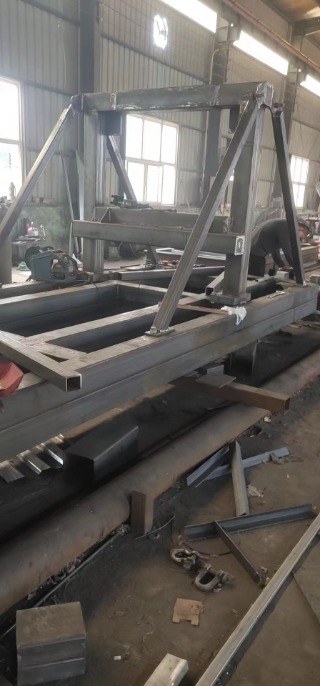

tower production cow in production mobile telecom station in made

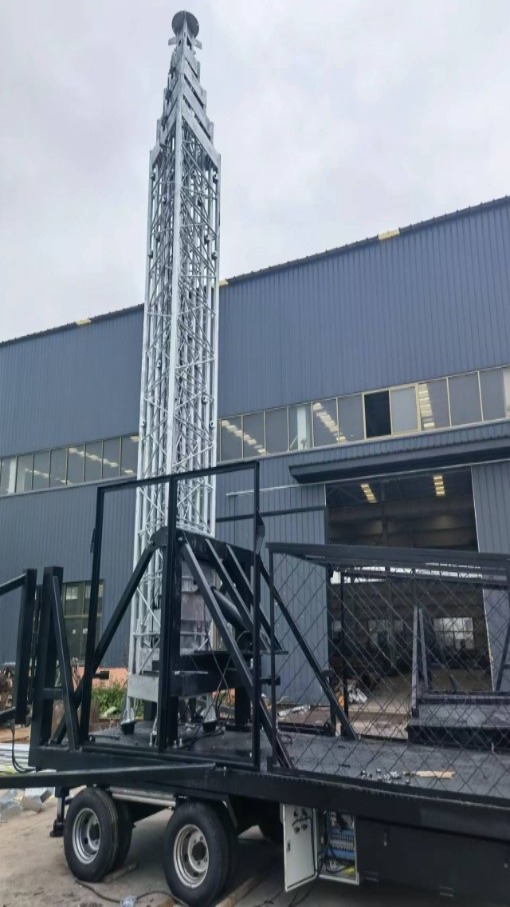

lattice tower telecom movable station  cell on wheels in black



COW Series Overview:

cell on wheels series
