Item NO.:
AT-PT110Goods Stock:
1As a high-voltage distribution network voltage, 110kV is mainly used to distribute the electric energy obtained from the city's main transformer to the load centers of each district, dividing the city into blocks.
Safety distance to road surface: 110kV - 7 meters.
Maximum sag: In addition to the design span, sag is also related to local temperature, wind speed, ice and snow weather, system overvoltage conditions and other factors. Generally, when the 110 KV span is 200 meters, the maximum sag is 5-6 meters.
Tower Height: At least 15.7 M above ground.
Description:
Product Name110KV Transmission Line Tower
Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC
Voltage Grade:110KV
Wind Speed: 0--330KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420
ASTM A36, ASTM 572, GR50. GR65.SS400
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization Standard: ASTM A123
Nuts or Bolts: Grade 8.8
Welding Standard: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding (SAW).
Galvanization Standard of Bolts and Nuts: ISO146 OR ASTM/A153
Life Time: More than 25 years
Supply Ability: 3,000 MT Per Month

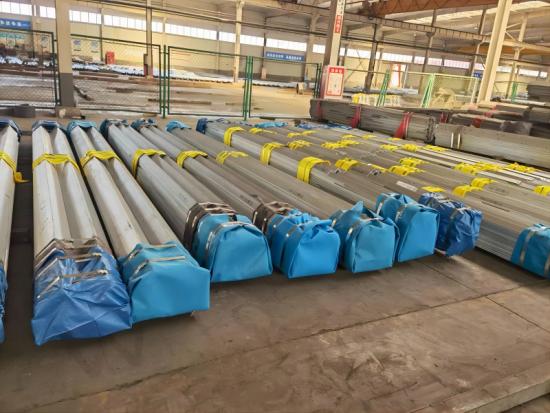

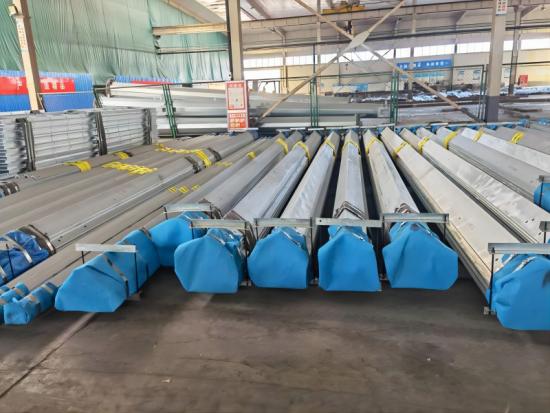

Packaging Detail:

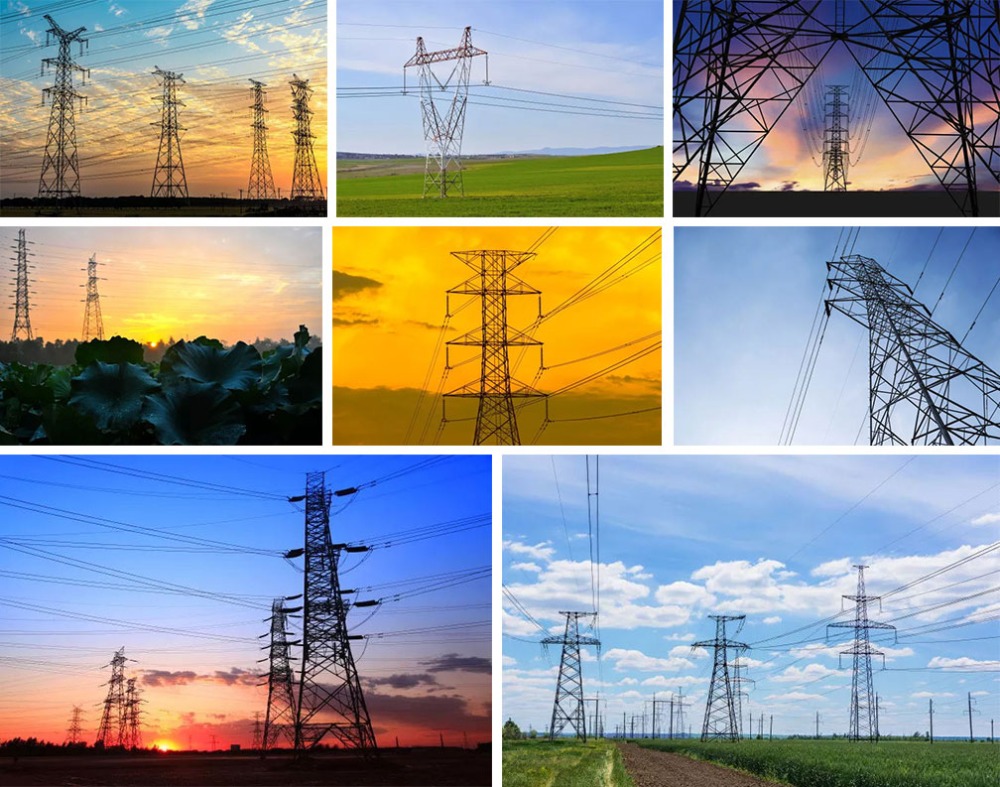

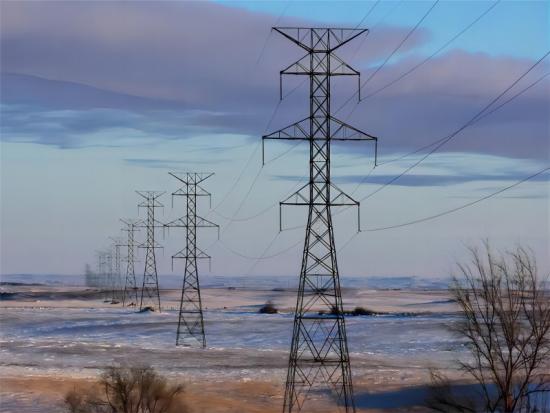

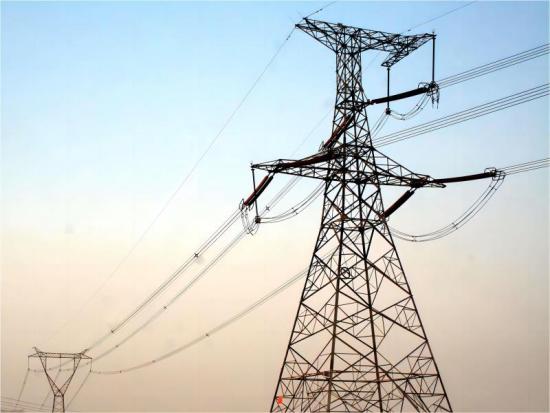

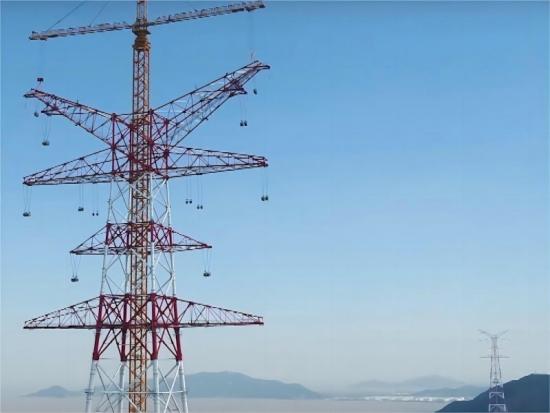

Project Display:
Why Choose Us?
1. With full experience of designing and manufacturing steel structures, we have complete production line and mature management system.
2. Strict Q/A & Q/C regulations ensures the minimum defection percentage.
3. We are not only your suppliers, but also your partners and technical support.
Full Experience in the Industry
Mature Production Line
