The Unbeatable Stability of 4-Legged Angle Steel Towers for Heavy-Load Applications

In the demanding world of telecommunications infrastructure, where the failure of a single tower can disrupt networks for millions, the choice of support structure is a critical engineering decision. When the application involves heavy loads—such as massive 5G MIMO antennas, large parabolic microwave dishes, or the combined equipment of multiple network operators—standard designs often reach their limit. For these mission-critical, high-capacity scenarios, the 4-legged angle steel tower stands apart, offering a level of stability and load-bearing capacity that is truly unbeatable. This superiority is not accidental; it is the direct result of fundamental structural mechanics and deliberate design optimization.

The Geometry of Strength: A Foundation of Inherent Stability

The core advantage of the 4-legged, or quad-legged, design lies in its geometry. This configuration creates a structure with exceptional torsional rigidity and a highly efficient load path.

1. · Superior Moment Resistance: The wide, rectangular or square base formed by the four legs provides an enormous lever arm to resist overturning moments caused by high winds or asymmetric antenna loading. This is quantified in engineering as a high "polar moment of inertia."

2. · Optimal Load Distribution: Vertical loads from equipment weight and ice accumulation are channeled directly down the four primary legs. More importantly, lateral forces from wind are transformed into predictable axial loads (tension in one leg, compression in the opposite) within the tower's robust bracing system. This efficient distribution prevents localized stress concentrations that can lead to fatigue or failure.

3. · Redundant Load Paths: Unlike a monopole, which is a single, critical element, the 4-legged lattice design is a highly redundant system. The network of horizontal and diagonal bracing members between legs creates multiple pathways for forces to travel, ensuring structural integrity even in the unlikely event of a minor component issue.

Engineered for Extreme Environmental Loads

Heavy-load applications are defined not just by the weight of the equipment but by the severe environmental forces the tower must withstand. The 4-legged design is uniquely suited for this challenge.

1. · Conquering Wind Loads:
   High winds are the dominant dynamic force on any tall structure. For a tower laden with large, sail-like antennas, this force is magnified. The 4-legged lattice tower combats this through aerodynamics and strength. Its open-frame design allows wind to partially pass through, significantly reducing the overall wind pressure coefficient compared to a solid-sided monopole of equivalent capacity. The triangulated bracing system then effectively transfers these reduced but substantial forces down to the massive foundation, minimizing sway and preventing the destructive dynamic vibrations that can affect radar or microwave signal precision.

2. · Supporting Massive Ice Loads:
   In cold climates, radial ice accumulation on antennas, cables, and the tower itself can add tons of extra weight. The 4-legged tower's design inherently accommodates this. Its formidable structural capacity is calculated with significant ice-loading scenarios in mind (as per standards like TIA-222 or EN 1993-3-1). The tower's ability to handle this immense additional dead load, combined with the increased wind drag from iced profiles, is a key factor in its selection for harsh environments.

The Ideal Host for Multi-Operator and High-Capacity Sites

The modern telecommunication landscape is defined by shared infrastructure and dense equipment arrays. This is where the 4-legged tower transitions from a strong option to the only viable one.

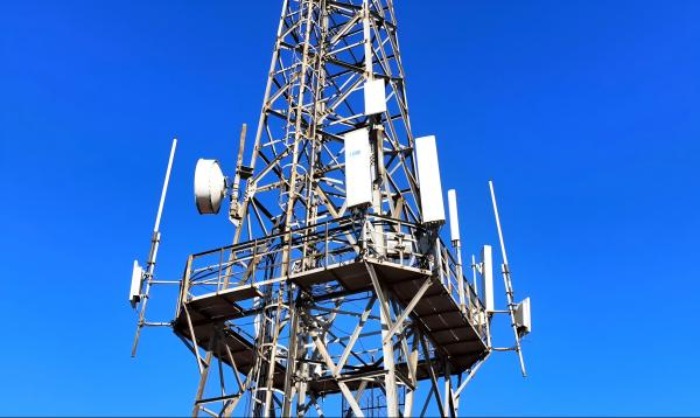

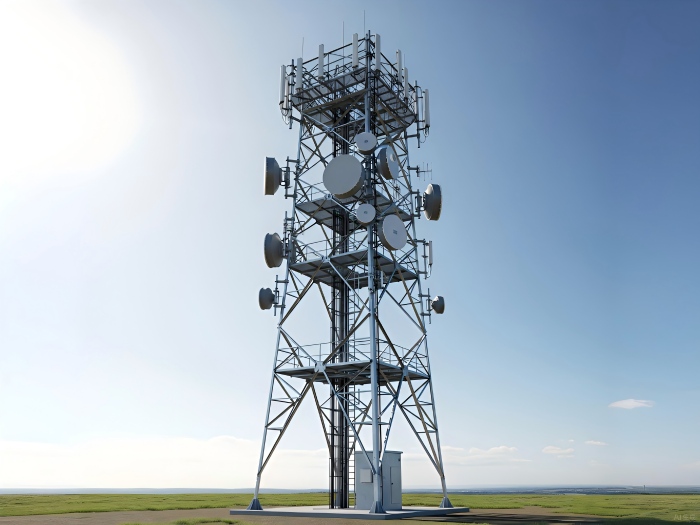

1. · Unmatched Platform Real Estate: The four-cornered structure provides abundant space for mounting platforms at multiple elevations. This allows for the clear vertical and horizontal separation of antennas from different operators (a practice known as "sectorization"), which is crucial to prevent radio frequency interference. A single 4-legged tower can comfortably host the complete suite of 2G, 3G, 4G, and 5G equipment for three or more carriers, alongside multiple microwave backhaul links.

2. · Heavy Antenna Support: Next-generation equipment, such as 5G Massive MIMO antenna arrays and full-band radios, are notably heavier and bulkier than their predecessors. The robust structural nodes and connection points of a 4-legged tower are designed to handle these concentrated loads safely, without the deflection or creep that could misalign sensitive microwave signals over time.

3. · Future-Proofing and Expansion: The lattice framework is inherently modular. Adding new platforms, extending height, or reinforcing specific sections to carry next-generation equipment is a straightforward engineering task. This scalability protects the long-term investment in the site.

Conclusion: The Benchmark for Mission-Critical Infrastructure

When the requirement is for absolute reliability under the heaviest equipment loads and most severe environmental conditions, the decision is clear. The 4-legged angle steel tower delivers unbeatable stability through its optimal geometric efficiency, superior load distribution, and immense structural redundancy. It is the engineering benchmark for hosting multi-operator networks, large-scale microwave hubs, and future technologies, ensuring that vital communication links remain operational for decades. In the world of heavy-load applications, it is not merely a choice but the definitive solution for stability and longevity.
