Description:

Product Name: Monopole Tower

Type: Telecommunication Tower

Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC。

Height: 45 Meters

Wind Speed: 0--330KM/H

Design standard: TIA/EIA-222-G/F/H

Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420

ASTM A36,  ASTM A575,  GR50. GR65.

EN/0025: S235JR   S235JO    S235JZ

EN/0025: S355JR   S355JO    S355JZ

EN/0025: SS400

Certificate: ISO9001:2008 SGS COC

Galvanized: Hot-dipped Galvanized

Galvanization: ASTM A123/150 1461

Nuts or Bolts: Grade 8.8

Welding: AWS D1.1

Method: CO2 Shielded Arc Welding.   Submerged Arc Welding (SAW).

Galvanization Standard of Bolts and nuts:ISO146 OR ASTM/A153

Life Time: More than 25 years

Supply Ability: 2,000 Tons Per Month

Design and Structure:

1. Monopole Design: Consists of a single vertical pole structure that supports antennas and equipment.
2. Height: Available in various heights to accommodate different coverage requirements for telecommunication and broadcasting.
3. Material: Typically constructed from steel or aluminum for strength, durability, and corrosion resistance.
4. Antenna Mounting: Equipped with mounting brackets, platforms, and accessories for installing antennas and transmitters.

Key Features:

1. Versatility: Suitable for various telecommunication applications, including cellular networks, radio broadcasting, television broadcasting, and more.
2. Space Efficiency: Requires a smaller footprint compared to lattice towers or guyed masts, making it suitable for urban or limited space environments.

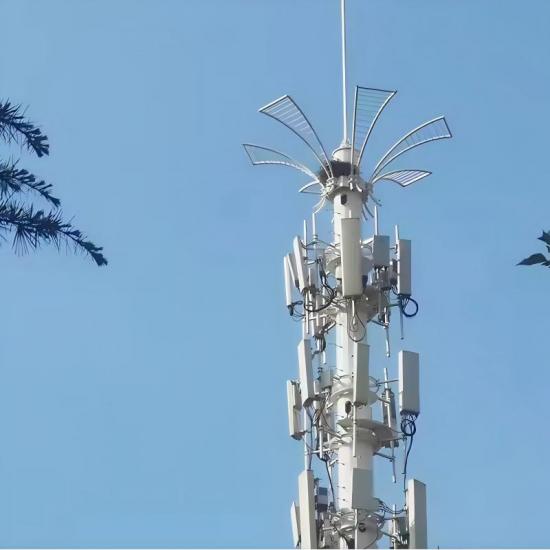

3. Aesthetics: Can be designed with concealment options to blend into the surrounding environment or mimic natural structures like trees or flagpoles.
4. Load Capacity: Designed to support multiple antennas, transmitters, and equipment for broadcasting and communication needs.

Applications:

1. Cellular Networks: Used for mounting antennas and equipment for cellular communication networks.
2. Radio Broadcasting: Supports radio broadcasting antennas for AM/FM transmission.
3. Television Broadcasting: Used for mounting television broadcasting antennas for terrestrial TV transmission.
4. Wireless Internet: Supports antennas for wireless internet service provider (WISP) networks and broadband communication.

Production Line:

With sufficient employees, advanced equipment and strict quality control system, quality finished from production line will be defection-free. Mass prouction workshop can not only ensure great quality and sufficient productity, but unit cost can be saved.

Hot-dip Galvanization:

Hot-dip galvanization thickness over 100 microns, having strong anti-rust and anti-corrosion capabilities. The processing is strictly according to ASTM A123 standard.

Package & Shipment:

Covered with protective package, any small strach during the transportation can be avoided. We also accept customized packaging and can use a series of packaging and transportation methods including foam cotton, welding scaffolding, etc.

Customized Design or As per Drawings

With professional design and engineering team, we can design the tower as customer's request, such as height, antenna load, No. of platform and so on. We also accept manufacturing according to client's drawings.

F A Q s：

• 1. What is a monopole telecom tower?

1. A monopole antenna tower is a type of communication tower that consists of a single vertical pole or mast used to support antennas, transmitters, receivers, or other communication equipment.

2. What is the purpose of a monopole?

1. The primary purpose of a monopole antenna tower is to support antennas and communication equipment for various applications in the telecommunications industry.

3.  What are the disadvantages of monopole towers?

1. While monopole towers offer several advantages in terms of space efficiency, aesthetics, and ease of installation, they also have certain disadvantages that should be considered
