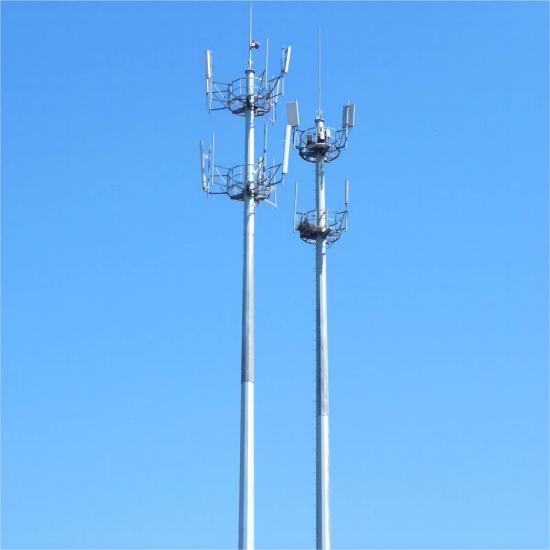

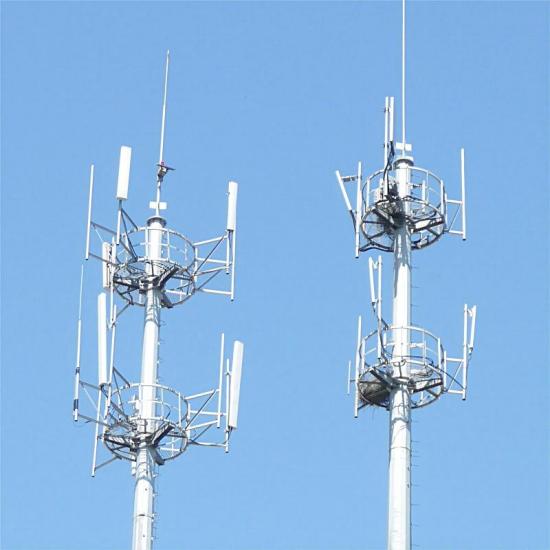

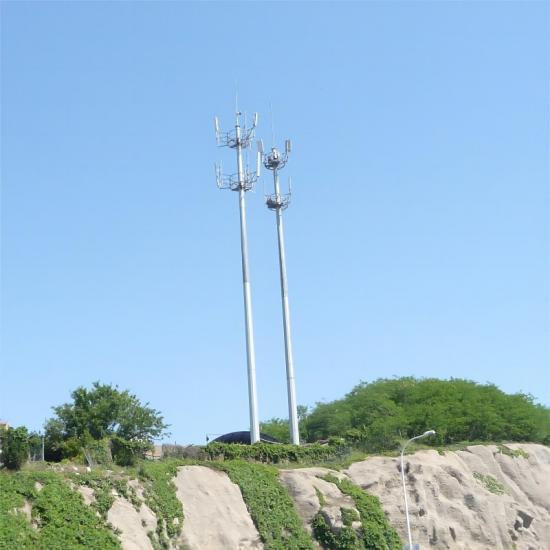

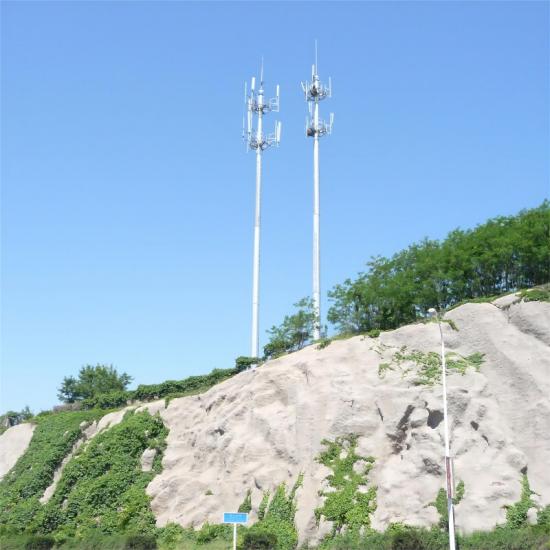

15M Mono Pole Telecommunication Tower

Home Monopole Tower

15M Mono Pole Telecommunication Tower

15M Monopole
15M Monopole
15M Monopole
15M Monopole
15M Monopole
15M Monopole

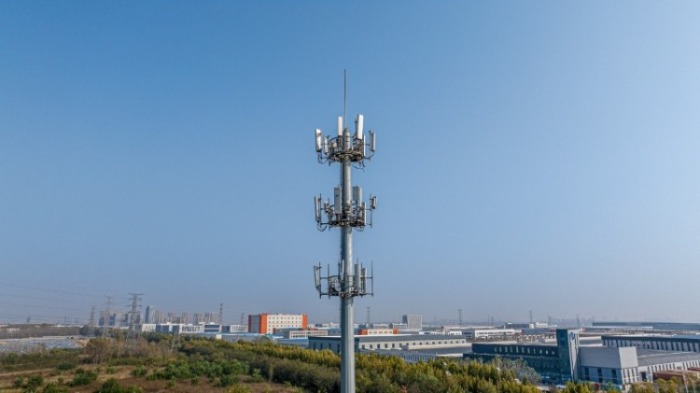

15M Mono Pole Telecommunication Tower

Mono pole towers provide a strong, cost-effective mounting structure to elevate antennas while minimizing visual impact. Their single-pole design offers simplicity.
  • Item NO.:

    AT-M15
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    3,000 MT/ Month

The tower body adopts more reasonable segments and is connected with high-strength bolts through connectors, making the installation convenient and fast, and can be adapted to installation in a variety of more complex outdoor sites. The built-in ladder and wiring method can not only provide operators with a convenient and safe operating environment, but also protect the feeder from the sun and rain, greatly extending the service life of the feeder, and the center of gravity of the tower will not shift due to the installation of the feeder.

monopole tower



Product Description:

Product Name: Mono Pole Tower

Type: Telecommunication Tower

Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC.

Height: 15 M

Wind Speed: 0--330KM/H

Design standard: TIA/EIA-222-G/F/H

Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420

ASTM A36,  ASTM A575,  GR50. GR65.

EN/0025: S235JR   S235JO    S235JZ

EN/0025: S355JR   S355JO    S355JZ

EN/0025: SS400

Certificate: ISO9001:2008 SGS COC

Galvanized: Hot-dipped Galvanized

Galvanization: ASTM A123/150 1461

Nuts or Bolts: Grade 8.8

Welding: AWS D1.1

Method: CO2 Shielded Arc Welding.   Submerged Arc Welding (SAW).

Galvanization Standard of Bolts and nuts:ISO146 OR ASTM/A153

Life Time: More than 25 years

Supply Ability: 3,000Tons Per Month

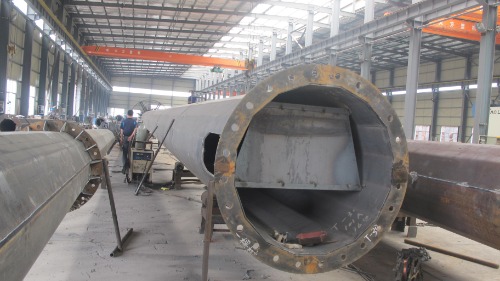

Processing Production:

High-quality raw materials and perfect processing procedures.

pole tower  antenna pole product

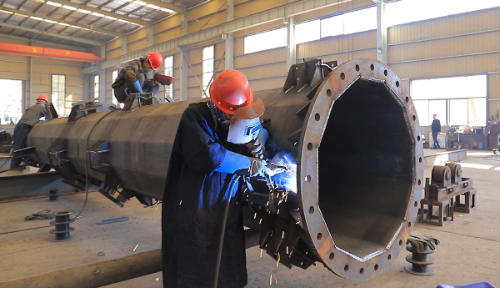

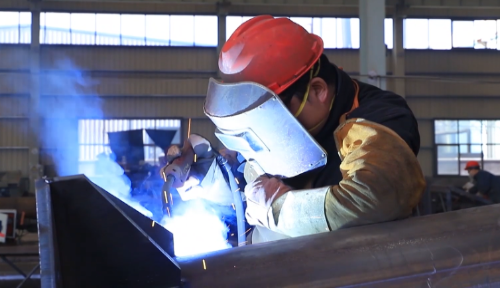

Excellent welders firmly weld the accessories to the main body of the tower, every nearly perfect weld is used to ensure impecable quality.

welders  welding

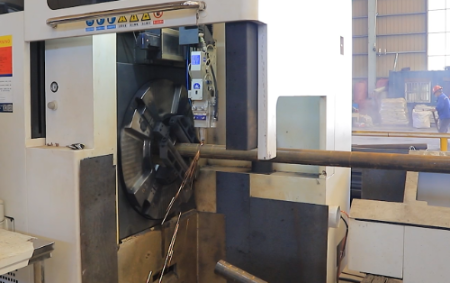

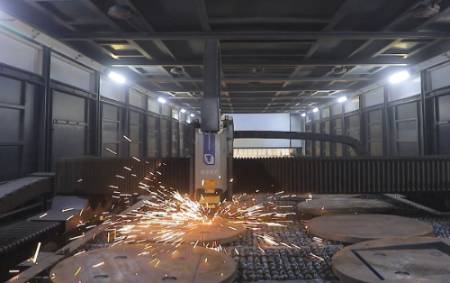

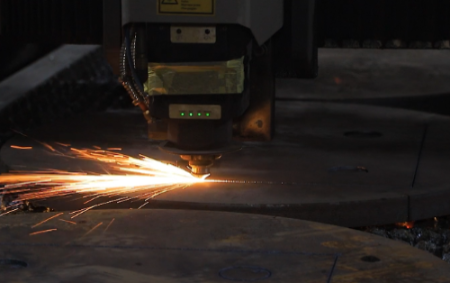

Using laser cutting to process the plate and tube accessories. The main benefit of using laser cutting technology is that it reduces the mechanical stress on the sheet metal parts when cutting. Not only does the laser eliminate impact stresses that can adversely affect sheet metal products during the cutting process, but the heating zone is very small. With this advantage, the rest of the workpiece is barely affected by the heat, thus preserving the properties of the material being processed.

laser cutting plates  laser cutting

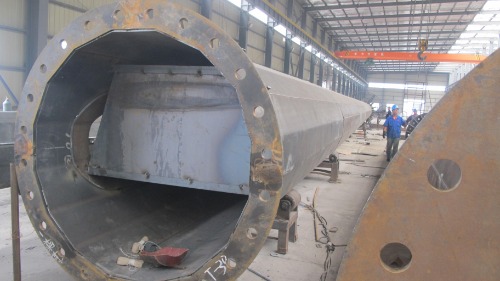

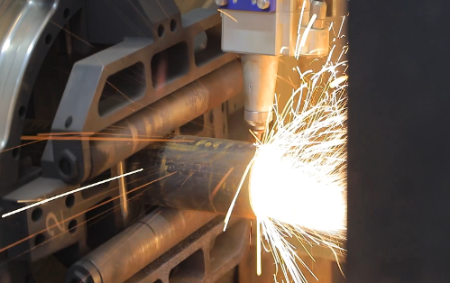

Processing antenna pole or other tubular accessories

tube antenna  tubular pipe

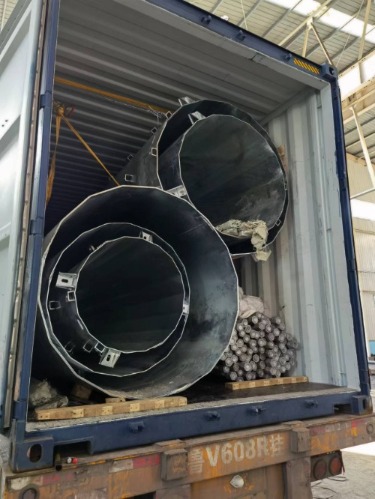

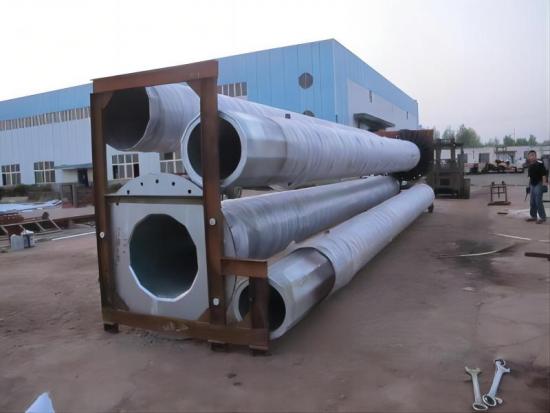

Shipment Reference:

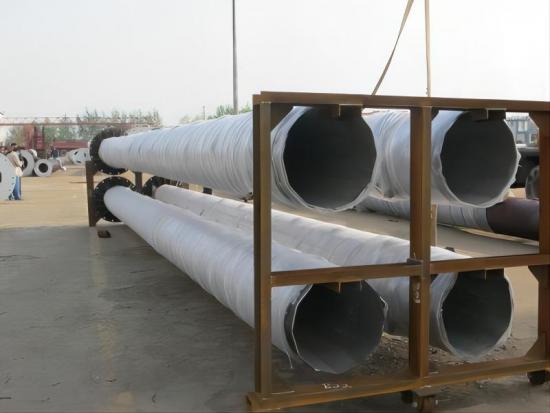

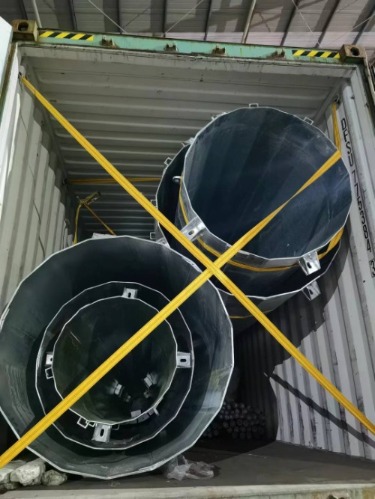

Bare package, using bigger pole parts as sockets. Ropes are used internally to secure the container to avoid displacement during transportation.

pole tower shipment   monopole package




About us--Qingdao Altai Tower Co., Ltd



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
