The Core Technology Behind 50+ Year Anti-Corrosion Performance in 33kV Steel Poles

For power utilities battling corrosion in coastal, industrial, and high-humidity zones, breakthroughs in hot-dip galvanizing (HDG) technology now enable 33kV steel transmission poles to achieve 50+ year lifespans – slashing replacement costs by 300% versus traditional methods. Here’s the science making this possible:

The Corrosion Challenge in Energy Infrastructure

33kV poles face relentless degradation from:

1. Salt Spray: Coastal sites lose 25µm/year vs. 4µm inland

2. Chemical Exposure: Industrial SO₂/NOx accelerates rust 5x

3. Galvanic Corrosion: Dissimilar metal contacts (e.g., Cu earth wires)

4. Microbiologically Influenced Corrosion (MIC): Soil-bound bacteria at base

Conventional paint systems fail in 12–15 years, triggering costly rebuilds.

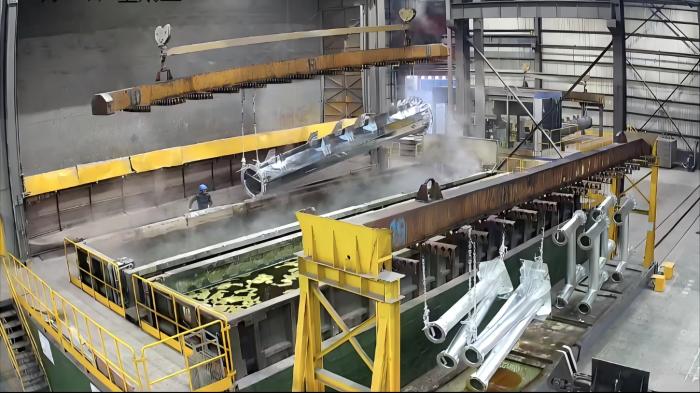

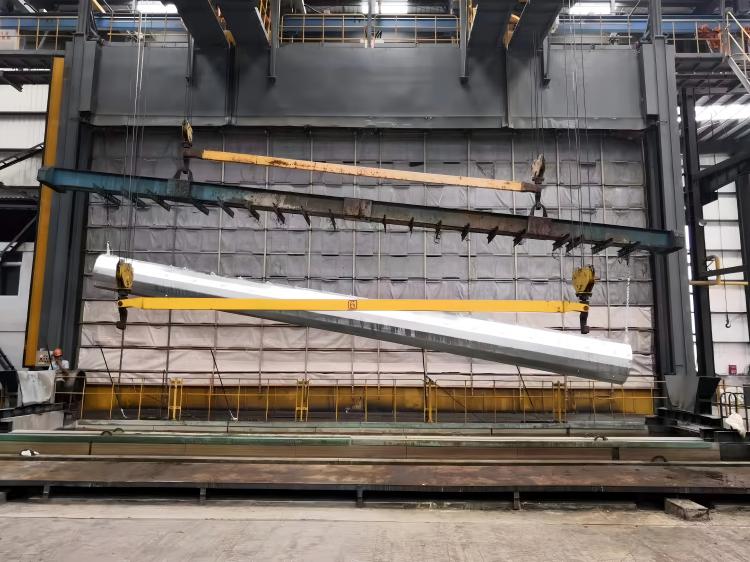

Breakthrough 1: Next-Gen Hot-Dip Galvanizing

Process Innovations

Performance Data (ISO 9227 Salt Spray)

Coating Type        | Hours to Red Rust | Equivalent Field Life
----------------------------------------------------------
Standard Paint      | 1,000h            | 10-12 years
Pure Zinc HDG       | 3,500h            | 25-30 years
Galfan HDG          | 8,000h            | 50+ years

Breakthrough 2: Multi-Layer Defense System

Hybrid Protection for Critical Zones

[Pole Zone]        [Protection Stack]                          [Lifespan]
-----------------------------------------------------------------------
**Upper Mast**     • 120µm Galfan HDG                          50+ years
                   • UV-stable silicone topcoat (RAL 7016)

**Ground Contact** • 300µm Zn-Al thermal spray                 Lifetime
                   • HDPE sacrificial sleeve + cathodic protection

**Bolt Interfaces**• Stainless steel (A4-80) + dielectric gel  60 years

Breakthrough 3: Digital Lifecycle Management

IoT-Driven Predictive Maintenance

• Embedded Sensors:

  1. Coating thickness monitors (RFID tags)

  2. Galvanic potential probes at soil line

• AI Analytics:

  1. Corrosion rate forecasting via weather/emission data

  2. 3D pole degradation modeling (BIM integration)

• Result: 90% reduction in unplanned replacements

Proven Field Performance

Case 1: Norwegian Coastal Grid

1. Environment: North Sea salt spray + -30°C freeze-thaw

2. Solution: Galfan HDG + thermal-sprayed base

3. Result: 0% failure at 32-year inspection (projected 60-year life)

Case 2: Guangdong Industrial Zone

1. Challenge: Acid rain (pH 4.2) + 90% humidity

2. Solution: Zn-Ni HDG (200µm) + conductive polymer topcoat

3. Result: 5µm corrosion loss after 15 years (vs. 80µm predicted)

Lifecycle Cost Advantage

The Future: Smart Coatings

• Self-Healing Polymers: Microcapsules release inhibitors upon scratch exposure

• Photocatalytic Surfaces: TiO₂ coatings break down pollutants

• Graphene-Enhanced Zinc: 400% corrosion resistance increase (lab-proven)

*"After Cyclone Gabrielle destroyed painted poles in New Zealand, our Galfan-treated 33kV structures survived with only 3µm coating loss. This technology is rewriting infrastructure economics."*
– Dr. James Chen, Grid Resilience Director, Transpower NZ



---

---
