Item NO.:
AT-WR07Order(MOQ):
10 MTPayment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
As per CustomizationShipping Port:
Qingdao, China or as designatedLead Time：
2,000 MT / MonthIntroduction

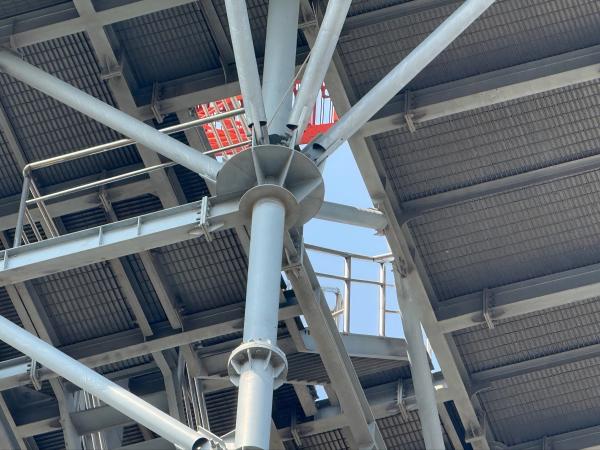

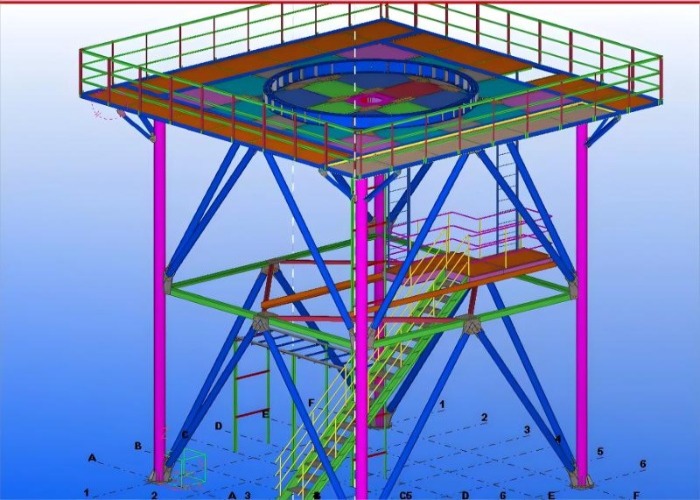

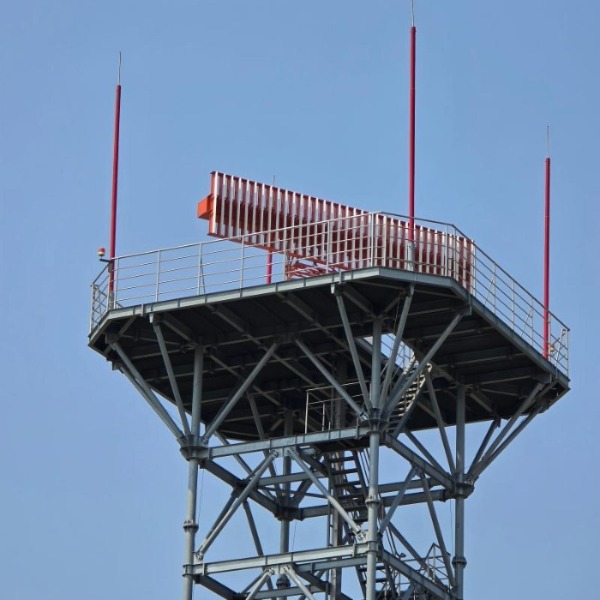

A Hot-dip Galvanized Airport Weather Radar Mount is a critical structural component engineered to ensure the long-term reliability and precision of weather radar systems in the demanding airport environment.
| Feature | Specification & Description | Primary Function |
|---|---|---|
| Corrosion Protection | Hot-dip galvanizing to standards like ASTM A123; zinc coating typically ≥85 μm. | Protects steel structure from rust/corrosion, ensuring long-term structural integrity. |
| Structural Design | Robust steel framework; often a 4-point lifting system with carefully selected lifting points for load distribution. | Provides stable platform, withstands equipment weight & environmental loads. |
| Material Selection | High-strength steel components; sometimes aluminum or aluminum alloy for specific parts to reduce weight. | Ensures strength-to-weight ratio; aluminum parts often have anodized surface. |
| Antenna Compatibility | Designed to integrate with various radar types (e.g., X, C, S-band); must accommodate antenna & radome specifications. | Ensures seamless integration & optimal performance of radar system. |
| Environmental Resilience | Engineered to withstand operational conditions including wind speeds ≥50 m/s & other factors per standards like GJB150 series. | Guarantees operational capability & safety under severe weather conditions. |
Product Details
Professional Technical Engineering Team
Customizable Color:
The mainstream colors of this type of tower are red and white. We can also customize the colors according to customer requirements.

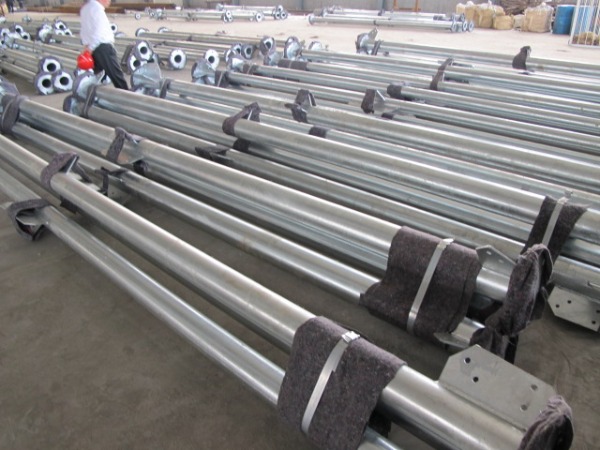

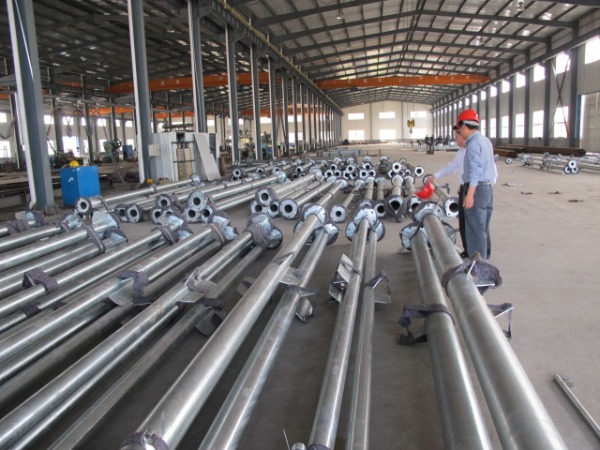

Packaging Reference:
Before each packing, we will count the quantity of each part according to the drawings, classify the relevant parts and place them, and then pack them after confirming that they are correct.
Hot-dip Galvanization:
Hot-dip galvanization thickness over 100 microns, having strong anti-rust and anti-corrosion capabilities and strictly according to ASTM A123 standard.

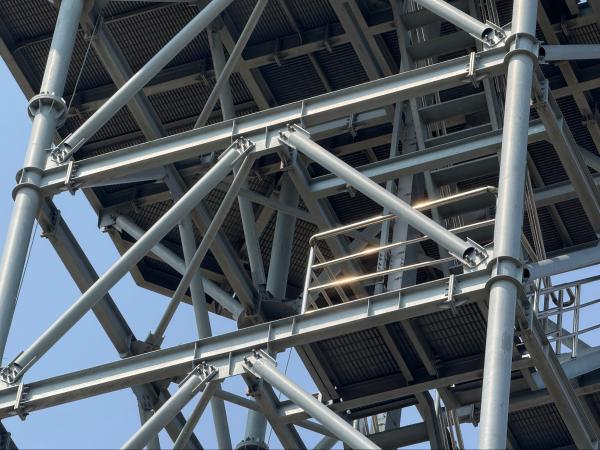

A radar lattice tower is a specific type of tower structure designed to support radar antennas and related equipment. These towers are characterized by their lattice framework, which consists of interconnected steel components arranged in a crisscross pattern.
Radar lattice towers play a crucial role in supporting radar antennas and equipment for various applications, providing a stable and elevated platform for radar systems to function effectively. Their lattice design offers a robust solution for elevating radar equipment to the required heights while maintaining structural integrity and performance over time.

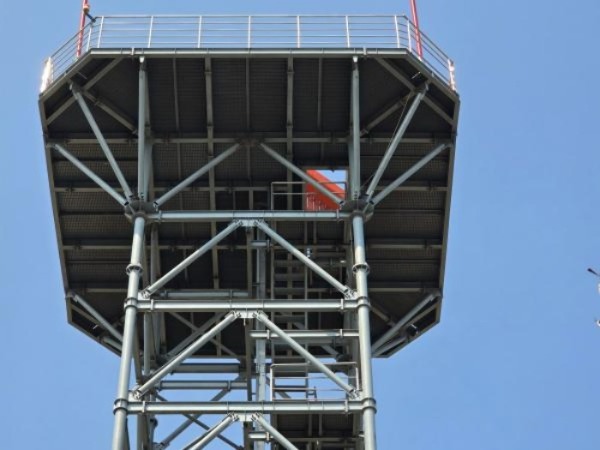

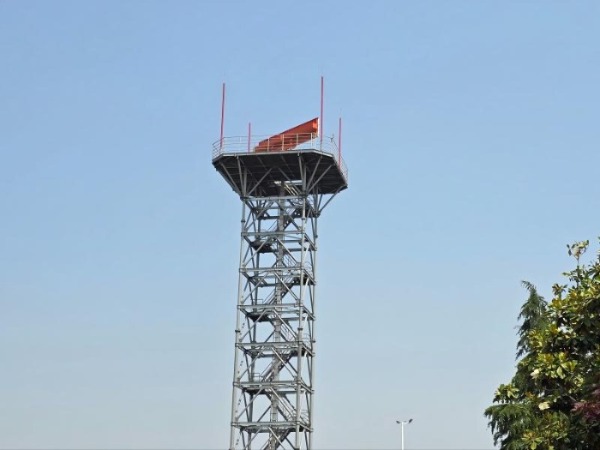

A weather monitor radar lattice tower structure is a specialized tower system designed to support weather radar equipment for meteorological monitoring and forecasting. These towers are engineered with a lattice framework for strength and stability, allowing them to withstand environmental conditions and provide an elevated platform for weather radar antennas to capture critical weather data accurately.

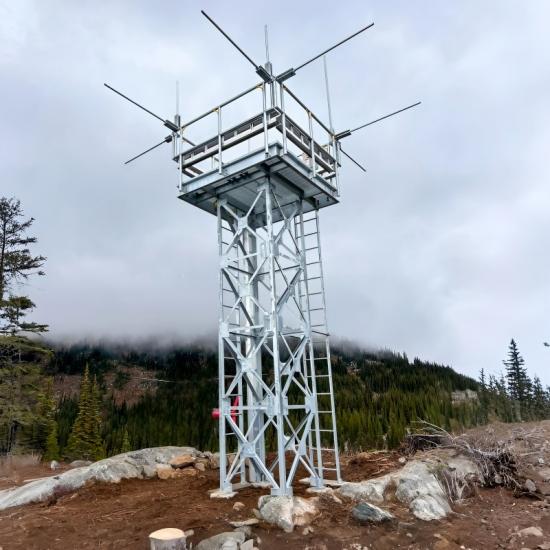

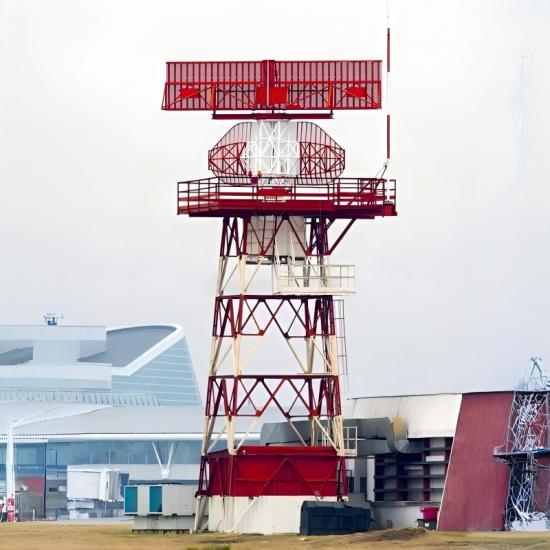

A Radar Support Lattice Steel Tower is a specialized structure designed to elevate and support radar systems for applications such as air traffic control, weather monitoring, or military operations.

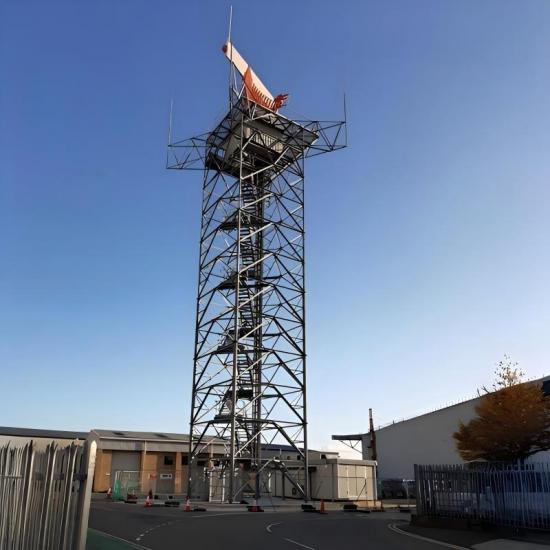

A radar lattice steel tower structure is a specialized type of tower designed to support radar systems used for air traffic control, weather monitoring, defense applications, and other radar-related purposes. These towers are constructed using lattice steel components, providing a sturdy framework that can withstand the weight of radar equipment and antennas while offering minimal wind resistance.

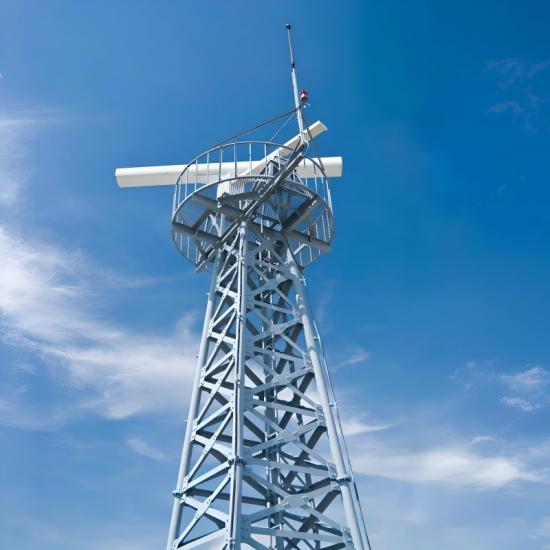

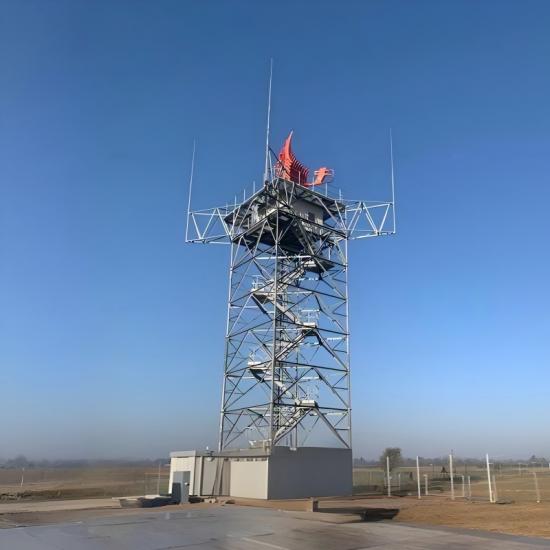

A multifunctional weather radar lattice tower is a specialized structure designed to support weather radar systems used for monitoring meteorological conditions, tracking severe weather events, and providing critical data for weather forecasting and research. These towers are equipped with radar antennas and associated equipment to perform various functions related to weather surveillance and analysis.
500kV transmission line towers are uniquely designed to handle the large current loads and high voltages needed for long-distance, heavy power transmission applications. Typically 150 to 250 feet tall to provide ample ground clearance for conductors. Among the tallest towers.
1. key Details:Place of Origin: Shandong, China (Mainland) Brand Name: Altai Tower or OEM Model Number: AT-G20 Surface treatment: Hot Dip Galvanizied or painted. 2.Packaging & Delivery: Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements. Deliver: Shipped in 30 days after payment from Qingdao / designated port. Tower members: One steel tower is separated into several bundles. Bolts: Packing material is robust nylon bag or steel drum. 3. Technical Data 1. Design Code ALT/294/ASC-AC Structure Steel 2. Grade High Tensil Steel GB/T1591:Q345B, Q345C,Q3455D ASTM A572 Gr50 EN10025: S355JR, S355J0,S355J2 3. Design Wind Speed Max. 250 km/h 4. Allowable deflection 0.5 ~1.0 degree at operational speed 5. Tension strength (Mpa) 470~630 6. Yield strength (t≤16mm) (Mpa) 235 7. Elongation (%) 24 8. Impact strength KV (J) 27(20°C)---Q345B(S355JR) 27(0°C)---Q345C(S355J0) 27(-20°C)---Q345D(S355J2) Bolts & Nuts 9. Grade Grade 4.8, 6.8, 8.8 10. Standards for mechanical properties 10.1 Bolts ISO 898-1 10.2 Nuts ISO 898-2 10.3 Washers ISO 6507-1 11. Standards for Dimensions 11.1 Bolts DIN7990, DIN931, DIN933 11.2 Nuts ISO4032, ISO4034 11.3 Washers DIN7989, DIN127B, ISO7091 Welding 12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) 13. Standard AWS D1.1 Marking 14. Method of marking of the members Hydraulic Press Stamping or Laser Engraving Galvanizing 15. Galvanization standard of steel sections ISO 1461 or ASTM A123 16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153 Test 17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test Capacity 18. Maximum Production Capacity 2,000 Metric Ton per Month Packaging Detail: With standard sea-worthy packaging or as per requirements. Hot-dip Galvanization: The galvanizing workshop we have invested in is equipped with equipment imported from Italy and is galvanized in strict accordance with the American ASTM A123 standard. 1 1 Why Choose Us? 1. Strict quality control system and abundant technical reserves have created world-class products.2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves.3. Facilitating supports and low labor cost make the product price have great advantages in the world.4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice.5. China Power Grid Certification Level 1 supplier, you can safely choose and cooperate.6. We are not only manufacturers and suppliers, but also your partners and technical support. Full Experience in the Industry Mature Production Line 1 1 Sophisticated Equipments Professional Design & Engineering Team
