Item NO.:
AT-WR30Order(MOQ):
10 MTPayment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
As per CustomizationShipping Port:
Qingdao, China or as designatedLead Time：
2,000 MT / Month| Feature | Specification / Description |
|---|---|
| Typical Height | Can exceed 30 meters for wide-area coverage. |
| Primary Material | Steel, typically with hot-dip galvanizing for corrosion protection. |
| Antenna Load | Designed to support heavy radar antennas and radomes; example weights include a 3.2m diameter reflector and radomes weighing 3,400 kg. |
| Wind Resistance | Engineered for high wind loads; specific designs can withstand winds of 10-level (~25 m/s) while operational and 12-level (~33 m/s) without damage. |
| Corrosion Protection | Hot-dip galvanizing is a standard and effective method. In highly corrosive environments (e.g., coastal C5-M), an additional coating system (e.g., epoxy or polyurethane paints) over the galvanized layer may be used for maximum protection. |
| Design Standards | Structures are designed with significant safety margins. Critical structural components may use a safety factor of 2.5 or higher to account for dynamic loads and long-term integrity. |
Radar Platforms: Elevated platforms to mount radar antennas, often reinforced to handle equipment weight and movement (e.g., rotating dishes).
Access Systems: Ladders, staircases, or elevators for maintenance personnel.
Stabilization Features: Guy wires or cross-bracing for additional stability in high-wind areas.
Foundations: Deep concrete bases or pilings to anchor the tower, especially in soft soil or seismic zones.
Packaging Reference
_1752646487_WNo_1200d900.webp)
_1752646529_WNo_700d472.webp)
_1752646564_WNo_700d459.webp)
_1752646610_WNo_600d450.webp)
Hot-dip Galvanization:
Hot-dip galvanization thickness over 100 microns, having strong anti-rust and anti-corrosion capabilities. The processing is strictly according to ASTM A123 standard.
Why Choose Us?
1.We have a strict quality management system and are certified to ensure that our customers will not have any problems when receiving and using the goods.
2.Imported advanced production equipment can ensure sufficient productivity and good operational stability, ensuring on-time delivery of quality and quantity for our customers.
3.Our long-term accumulation in this industry has given us a good reputation and credibility, and our high-quality products can be seen in major regions of the world.
Full Experience in the Industry
Precision Equipment
Large-scale laser cutting equipment can make the parameters of accessories on the tower smaller. Coupled with professional worker operation and technical guidance, excellence will be penetrated into each of our products.
Mature Production Line and Sophisticated Employees
Professional Design and Engineering Team

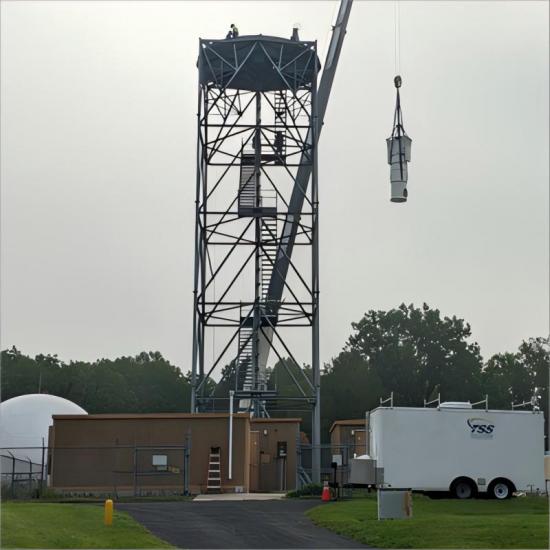

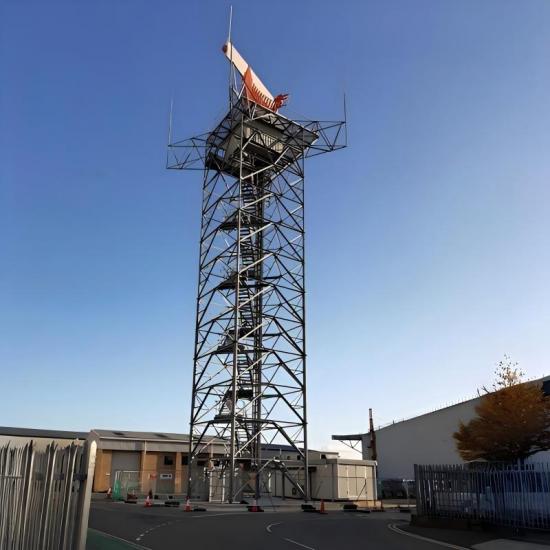

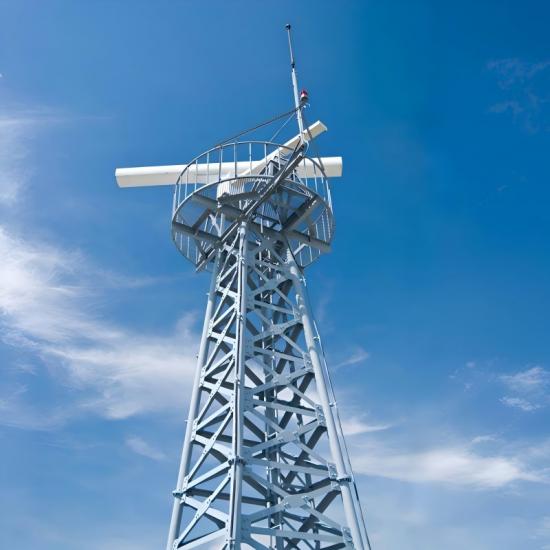

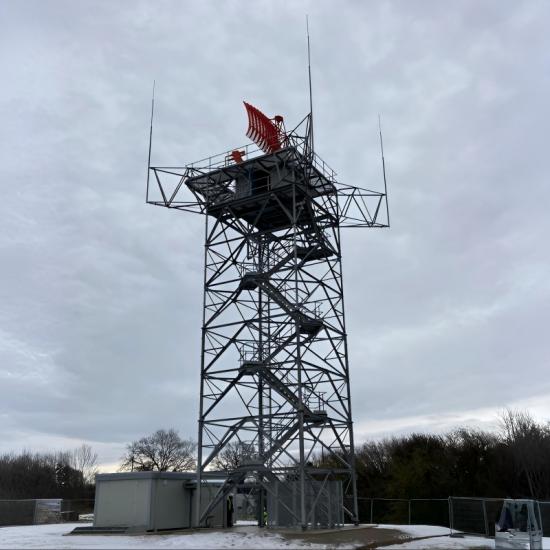

A radar lattice tower is a specific type of tower structure designed to support radar antennas and related equipment. These towers are characterized by their lattice framework, which consists of interconnected steel components arranged in a crisscross pattern.
Radar lattice towers play a crucial role in supporting radar antennas and equipment for various applications, providing a stable and elevated platform for radar systems to function effectively. Their lattice design offers a robust solution for elevating radar equipment to the required heights while maintaining structural integrity and performance over time.
A weather monitor radar lattice tower structure is a specialized tower system designed to support weather radar equipment for meteorological monitoring and forecasting. These towers are engineered with a lattice framework for strength and stability, allowing them to withstand environmental conditions and provide an elevated platform for weather radar antennas to capture critical weather data accurately.
A Radar Support Lattice Steel Tower is a specialized structure designed to elevate and support radar systems for applications such as air traffic control, weather monitoring, or military operations.
A radar lattice steel tower structure is a specialized type of tower designed to support radar systems used for air traffic control, weather monitoring, defense applications, and other radar-related purposes. These towers are constructed using lattice steel components, providing a sturdy framework that can withstand the weight of radar equipment and antennas while offering minimal wind resistance.
A hot-dip galvanized airport weather radar grid support tower is a specialized structure designed to support weather radars in airport environments.
A multifunctional weather radar lattice tower is a specialized structure designed to support weather radar systems used for monitoring meteorological conditions, tracking severe weather events, and providing critical data for weather forecasting and research. These towers are equipped with radar antennas and associated equipment to perform various functions related to weather surveillance and analysis.
V-Booms are designed to hold maximum loads in most wind speeds (loading chart available upon request). They come 80% pre-assembled and packaged for ease of construction.
