Communication Tower Manufacturer

Galvanized Wedge Concrete Anchor Kwik Bolt

Home Tower Accessories

Galvanized Wedge Concrete Anchor Kwik Bolt

bolt anchor
bolt anchor
bolt anchor
bolt anchor

Galvanized Wedge Concrete Anchor Kwik Bolt

Also known as reinforced anchor plate anchor bolts, welded anchor bolts, anchor claw anchor bolts, rib plate anchor bolts, anchor bolts, anchor screws, anchor wires, etc. It is specially designed to be buried in concrete foundations and used as a base for fixing various machines and equipment.
  • Item NO.:

  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    Silver / as per customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    1,200 MT/ Month

Anchor bolts are generally made of Q235 steel, which is smooth round. Rebar (Q345) has high strength, and it is not as easy to make a nut thread as it is to make a round nut. For smooth round anchor bolts, the burial depth is generally 25 times its diameter, and then a 90-degree hook about 120mm long is made. If the diameter of the bolt is very large (such as 45mm) and the burial depth is too deep, you can weld a square plate to the end of the bolt, that is, just make a big head (but there are certain requirements). The burial depth and the hook are all to ensure the friction between the bolt and the foundation to prevent the bolt from being pulled out and damaged.

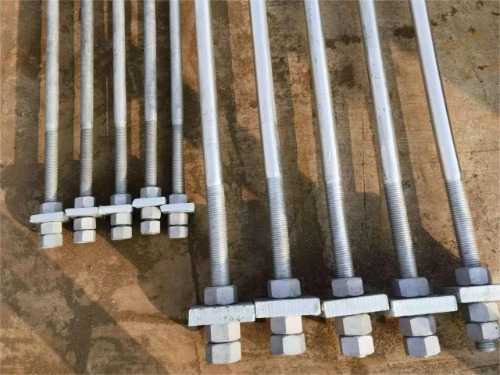

anchor bolt

Product Description:

Finish:ZINC, Plain, H.D.G.

Material:Stainless steel, Steel

Place of Origin:Shandong, China

Size: 5/8",3/4", 7/8", 1", Length: 16-36", Thread length:6"

Grade: ASTM A307B, A449, F1554

Material: Stainless Steel,Steel

Finish: Plain, H.D.G., Zinc Plated, Black, etc

OEM: acceptable

Application: Structural Steel; Metal Building;

Standard: GB, DIN, ISO, ANSI/ASTM, BS, BSW, JIS, etc

Color: Silver or As per customization

Packaging Details: bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand

Loading Port: Qingdao, China

Supply Ability: 1,200 Tons per Month


Product Details:

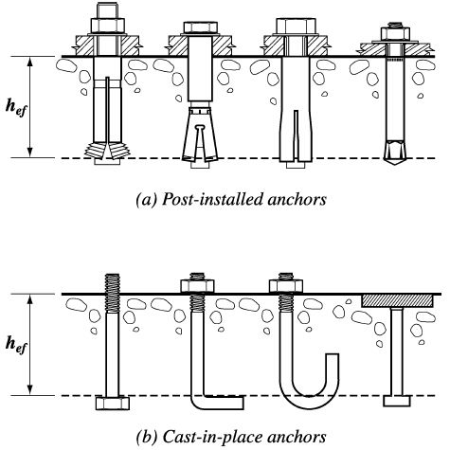

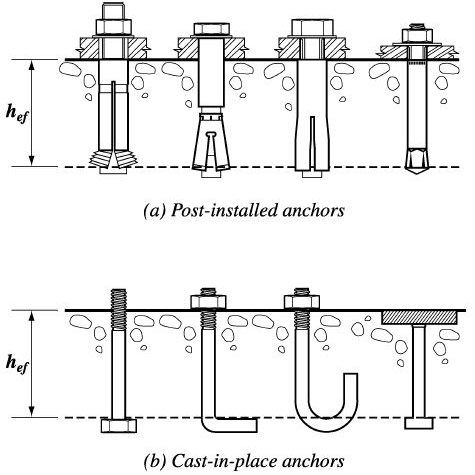

Anchor bolts can be divided into fixed anchor bolts, movable anchor bolts, expansion anchor bolts and adhesive anchor bolts. According to different shapes, they are divided into: L-shaped embedded bolts, 9-shaped embedded bolts, U-shaped embedded bolts, welded embedded bolts, and bottom plate embedded bolts.

kwik bolt wedge anchor

anchor nut kit wedge anchor

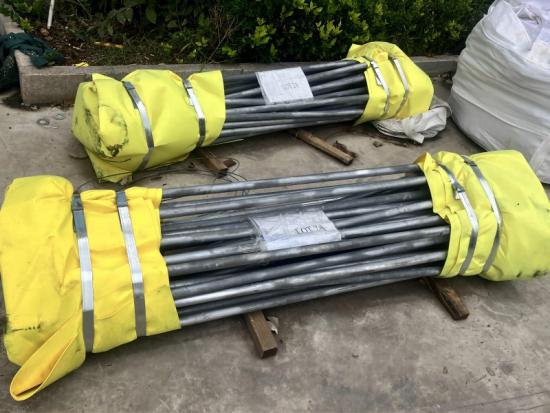

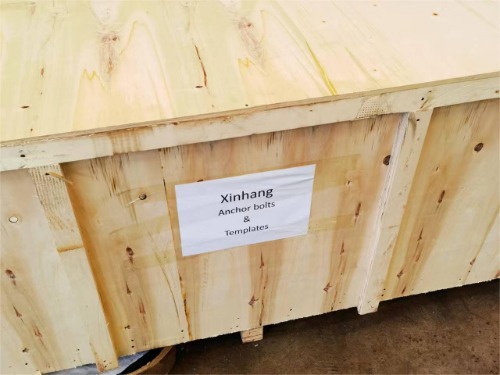

Package on both sides with metal strapping and fabric, we can also provide customized wood crate packagment.

wedge bolt package anchor bolt package


About us -- Qingdao Altai Tower Co., Ltd

Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
