Item NO.:
AT-SW03Order(MOQ):
10 MTPayment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
Gray/ Black/ As per requirementsShipping Port:
Qingdao, ChinaLead Time：
6,000 MT/ MonthPrestressed steel strands are stranded steel cables composed of 2, 3, 7 or 19 high-strength steel wires that have been stress relieved (stabilized) and are suitable for prestressed concrete and similar purposes. The main characteristics of prestressed steel strands are high strength and good relaxation performance, and they are relatively straight when unfolded. The common tensile strength grade is 1860 MPa, and there are also strength grades such as 1720, 1770, 1960, 2000, and 2100 MPa. The yield strength of this steel is also very high.
Product Description:
|
Specification For Stainless Steel Wire Ropes |
|||||
|
CONTURCTION COMPACTED STRAND 1x7 |
|||||
|
Product Code |
Diameter (mm) |
Min.Breaking Load (kn) |
Weight Kg/100m |
||
|
|
|
1570/mm² |
1770/mm² |
1960/mm² |
|
|
SS01(1x7) |
1.00 |
0.860 |
0.973 |
1.080 |
0.50 |
|
SS12(1x7) |
1.20 |
1.240 |
1.401 |
1.550 |
0.72 |
|
SS15(1x7) |
1.50 |
1.940 |
2.190 |
2.420 |
1.13 |
|
SS18(1x7) |
1.80 |
2.800 |
3.150 |
3.490 |
1.62 |
|
SS20(1x7) |
2.00 |
3.450 |
3.890 |
4.310 |
2.00 |
|
SS22(1x7) |
2.20 |
4.180 |
4.710 |
/ |
2.42 |
|
SS25(1x7) |
2.50 |
5.390 |
6.080 |
/ |
3.13 |
|
SS30(1x7) |
3.00 |
7.770 |
8.750 |
/ |
4.50 |
|
SS40(1x7) |
4.00 |
13.800 |
/ |
/ |
8.34 |
|
SS50(1x7) |
5.00 |
21.600 |
/ |
/ |
13.10 |
|
SS60(1x7) |
6.00 |
31.100 |
/ |
/ |
18.90 |
|
CONTURCTION COMPACTED STRAND 1x19 |
|||||
|
Product Code |
Diameter (mm) |
Min.Breaking Load (kn) |
Weight Kg/100m |
||
|
|
|
1570/mm² |
1770/mm² |
1960/mm² |
|
|
SS01(1x19) |
1.00 |
0.820 |
0.930 |
1.030 |
0.50 |
|
SS15(1x19) |
1.50 |
1.850 |
2.090 |
2.320 |
1.13 |
|
SS20(1x19) |
2.00 |
3.300 |
3.720 |
4.120 |
2.00 |
|
SS25(1x19) |
2.50 |
5.150 |
5.810 |
/ |
3.13 |
|
SS30(1x19) |
3.00 |
7.420 |
8.360 |
/ |
4.50 |
|
SS40(1x19) |
4.00 |
13.190 |
/ |
/ |
8.00 |
|
SS50(1x19) |
5.00 |
20.610 |
/ |
/ |
12.50 |
|
SS60(1x19) |
6.00 |
29.700 |
/ |
/ |
18.00 |
|
SS80(1x19) |
8.00 |
52.800 |
/ |
/ |
32.00 |
|
SS100(1x19) |
10.00 |
82.400 |
/ |
/ |
50.00 |
|
SS120(1x19) |
12.00 |
118.700 |
/ |
/ |
72.00 |
|
SS160(1x19) |
16.00 |
211.000 |
/ |
/ |
128.00 |
|
SS200(1x19) |
20.00 |
330.000 |
/ |
/ |
200.00 |
|
CONTURCTION COMPACTED STRAND 7x7 |
|||||
|
Product Code |
Diameter (mm) |
Min.Breaking Load (kn) |
Weight Kg/100m |
||
|
|
|
1570/mm² |
1770/mm² |
1960/mm² |
|
|
SS01(7x7) |
1.00 |
0.520 |
0.590 |
0.650 |
0.36 |
|
SS15(7x7) |
1.50 |
1.170 |
1.330 |
1.460 |
0.81 |
|
SS20(7x7) |
2.00 |
2.080 |
2.350 |
2.600 |
1.44 |
|
SS25(7x7) |
2.50 |
3.260 |
3.670 |
4.070 |
2.25 |
|
SS30(7x7) |
3.00 |
4.690 |
5.290 |
5.860 |
3.24 |
|
SS40(7x7) |
4.00 |
8.340 |
9.400 |
10.400 |
5.76 |
|
SS50(7x7) |
5.00 |
13.030 |
14.700 |
16.300 |
9.00 |
|
SS60(7x7) |
6.00 |
18.800 |
21.200 |
/ |
12.96 |
|
SS80(7x7) |
8.00 |
33.400 |
37.600 |
/ |
23.04 |
|
SS100(7x7) |
10.00 |
52.100 |
58.800 |
/ |
36.00 |
|
SS120(7x7) |
12.00 |
75.100 |
84.600 |
/ |
51.84 |
|
SS160(7x7) |
16.00 |
133.400 |
/ |
/ |
92.16 |
|
SS200(7x7) |
20.00 |
210.000 |
/ |
/ |
144.00 |
|
CONTURCTION COMPACTED STRAND 7x19 |
|||||
|
Product Code |
Diameter (mm) |
Min.Breaking Load (kn) |
Weight Kg/100m |
||
|
|
|
1570/mm² |
1770/mm² |
1960/mm² |
|
|
SS15(7x19) |
1.50 |
1.090 |
1.220 |
1.350 |
0.81 |
|
SS20(7x19) |
2.00 |
1.920 |
2.170 |
2.400 |
1.44 |
|
SS25(7x19) |
2.50 |
3.010 |
3.390 |
3.750 |
2.25 |
|
SS30(7x19) |
3.00 |
4.340 |
4.890 |
5.420 |
3.24 |
|
SS40(7x19) |
4.00 |
7.710 |
8.690 |
9.630 |
5.76 |
|
SS50(7x19) |
5.00 |
12.050 |
13.580 |
15.040 |
9.00 |
|
SS60(7x19) |
6.00 |
17.400 |
19.600 |
21.700 |
12.96 |
|
SS80(7x19) |
8.00 |
30.800 |
34.800 |
38.500 |
23.04 |
|
SS100(7x19) |
10.00 |
48.200 |
54.300 |
60.200 |
36.00 |
|
SS120(7x19) |
12.00 |
69.400 |
78.200 |
/ |
51.84 |
|
SS160(7x19) |
16.00 |
123.400 |
139.100 |
/ |
92.16 |
|
SS200(7x19) |
20.00 |
193.000 |
/ |
/ |
144.00 |
|
SS220(7x19) |
22.00 |
232.800 |
/ |
/ |
174.24 |
|
SS240(7x19) |
24.00 |
277.000 |
/ |
/ |
207.36 |

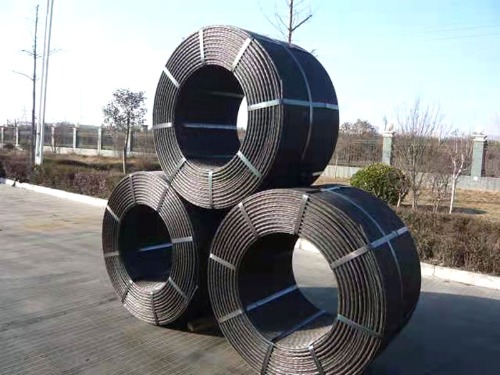

Product Overview:

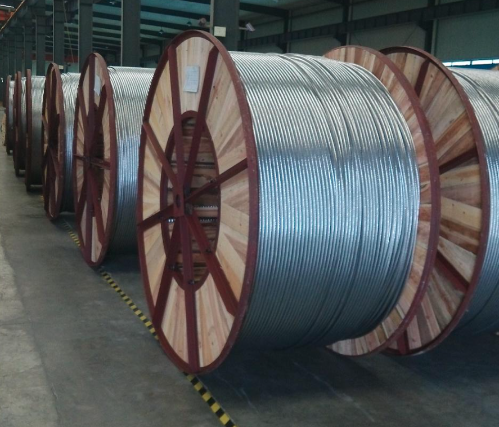

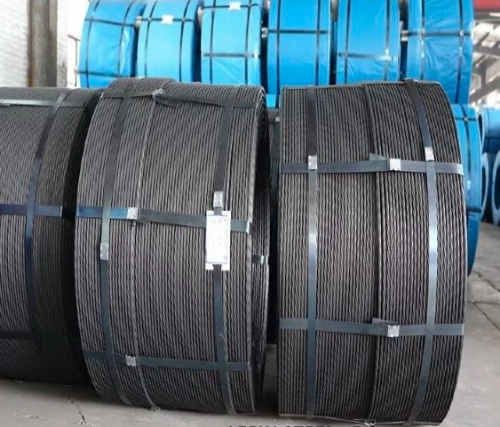

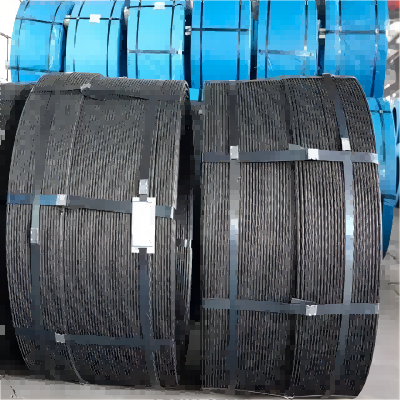

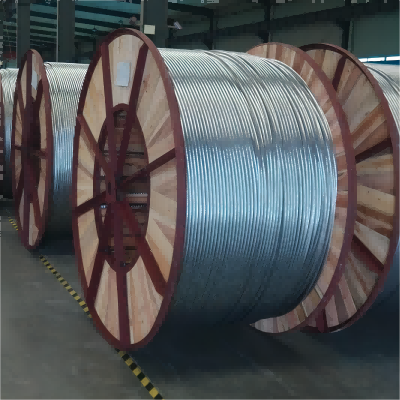

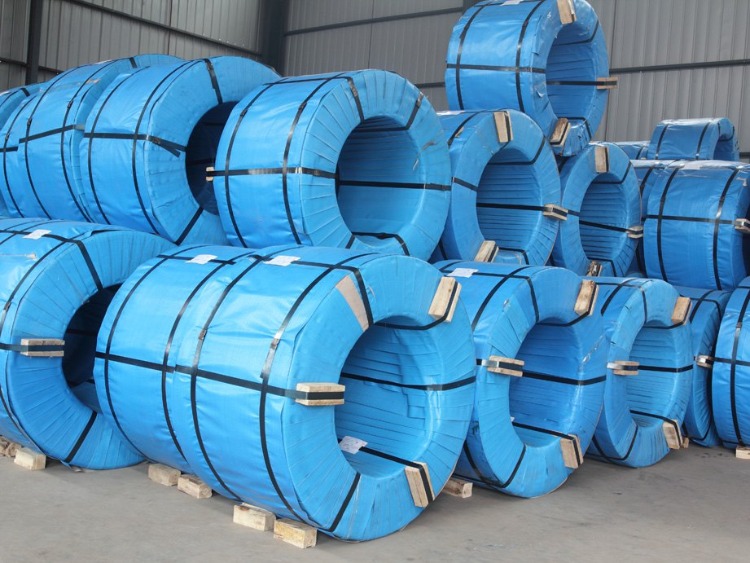

Packagement:
About Us- Qingdao Altai Tower Co., Ltd
Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
Special-shaped seamless steel pipe is a general term for seamless steel pipes with other cross-sectional shapes except round pipes. Compared with round pipes, special-shaped pipes generally have a larger moment of inertia and section modulus, and have greater bending and torsion resistance, which can greatly reduce the structural weight and save steel.
Channel steel is a long strip of steel with a groove-shaped cross-section. It is a carbon structural steel used in construction and machinery. It is a profile steel with a complex cross-section and has a groove-shaped cross-section. Channel steel is mainly used in building structures, curtain wall engineering, mechanical equipment and vehicle manufacturing.
Seamless steel pipes are perforated from a whole round steel and are mainly used as petroleum geological drilling pipes, cracking pipes for petrochemical industry, boiler pipes, bearing pipes, and high-precision structural steel pipes for automobiles, tractors, and aviation.
I-beam or H-beam is a type of steel commonly used in industrial construction. It has good tensile strength and corrosion resistance and is widely used in beams, columns, bridges, viaducts and other places.
1. key Details:Place of Origin: Shandong, China (Mainland) Brand Name: Altai Tower or OEM Model Number: AT-G20 Surface treatment: Hot Dip Galvanizied or painted. 2.Packaging & Delivery: Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements. Deliver: Shipped in 30 days after payment from Qingdao / designated port. Tower members: One steel tower is separated into several bundles. Bolts: Packing material is robust nylon bag or steel drum. 3. Technical Data 1. Design Code ALT/294/ASC-AC Structure Steel 2. Grade High Tensil Steel GB/T1591:Q345B, Q345C,Q3455D ASTM A572 Gr50 EN10025: S355JR, S355J0,S355J2 3. Design Wind Speed Max. 250 km/h 4. Allowable deflection 0.5 ~1.0 degree at operational speed 5. Tension strength (Mpa) 470~630 6. Yield strength (t≤16mm) (Mpa) 235 7. Elongation (%) 24 8. Impact strength KV (J) 27(20°C)---Q345B(S355JR) 27(0°C)---Q345C(S355J0) 27(-20°C)---Q345D(S355J2) Bolts & Nuts 9. Grade Grade 4.8, 6.8, 8.8 10. Standards for mechanical properties 10.1 Bolts ISO 898-1 10.2 Nuts ISO 898-2 10.3 Washers ISO 6507-1 11. Standards for Dimensions 11.1 Bolts DIN7990, DIN931, DIN933 11.2 Nuts ISO4032, ISO4034 11.3 Washers DIN7989, DIN127B, ISO7091 Welding 12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) 13. Standard AWS D1.1 Marking 14. Method of marking of the members Hydraulic Press Stamping or Laser Engraving Galvanizing 15. Galvanization standard of steel sections ISO 1461 or ASTM A123 16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153 Test 17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test Capacity 18. Maximum Production Capacity 2,000 Metric Ton per Month Packaging Detail: With standard sea-worthy packaging or as per requirements. Hot-dip Galvanization: The galvanizing workshop we have invested in is equipped with equipment imported from Italy and is galvanized in strict accordance with the American ASTM A123 standard. 1 1 Why Choose Us? 1. Strict quality control system and abundant technical reserves have created world-class products.2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves.3. Facilitating supports and low labor cost make the product price have great advantages in the world.4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice.5. China Power Grid Certification Level 1 supplier, you can safely choose and cooperate.6. We are not only manufacturers and suppliers, but also your partners and technical support. Full Experience in the Industry Mature Production Line 1 1 Sophisticated Equipments Professional Design & Engineering Team
