Monopole Towers: How Multi-Operator Builds Slash Costs by 90%

 The Sharing Economy of Monopole Towers:

How Multi-Operator Builds Slash Costs by 90%

Introduction

In an era of explosive 5G expansion and looming 6G deployments, telecom operators face a brutal equation: triple the infrastructure at half the cost. The solution? Multi-operator monopole towers—where competitors become collaborators. By sharing physical infrastructure, power systems, and spectrum real estate, operators can reduce CAPEX/OPEX by up to 90%. This blog dissects the engineering innovations making this revolution possible.

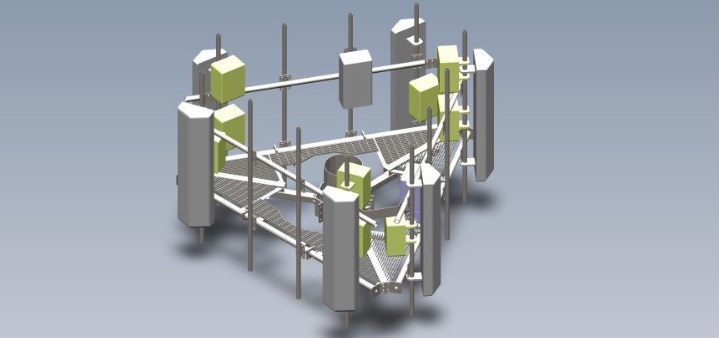

1. Platform Expansion Design: The "Lego Tower" Philosophy

Modular Stackability

• -Standardized Flange Systems: Pre-drilled flanges (e.g., EN 1092-1 standard) allow bolt-on platforms for 3–5 operators without welding.
• -Telescopic Sections: Slip-fit extensions enable height increases from 30m → 60m to add future operators.
• -Load-Balanced Layout: Radial platform arms distribute weight evenly, preventing torsion stress (see FEA diagram below).

Case Study: Manila Urban Upgrade

A single 45m monopole replaced 3 legacy towers, hosting:

1. Operator A: 5G mMIMO (32T32R)
2. Operator B: 4G/LTE + IoT gateway
3. Operator C: Microwave backhaul

Cost Savings: 94% less land rental, 70% lower steel use.

2. Power Sharing: Smarter Energy, Lower Bills

Shared Power Architecture

Intelligent Power Allocation

• AI-Driven Load Balancing:

# Pseudo-code for dynamic power allocation
def allocate_power(operator_demand, total_capacity):
    if sum(operator_demand) <= total_capacity:
        return operator_demand  # Full allocation
    else:
        return [min(demand, fair_share) for demand in operator_demand]  # Fair throttling

1. Blockchain Metering: Tamper-proof energy usage tracking for per-operator billing.

3. Spectrum Isolation: Preventing "Signal Traffic Jams"

Interference Mitigation Tech Stack

1. Spatial Separation:

   • Vertical antenna spacing ≥2λ (e.g., 30cm for 2 GHz bands).

   • Horizontal angular separation ≥90° between operators.

2. Frequency Isolation:

   • Cavity bandpass filters attenuate adjacent bands by 60–80 dB.

   • Notch filters block specific competitor frequencies.

3. Digital Solutions:

   • AI-coordinated beam nulling directs interference away from neighboring sectors.

Lab Test Results

4. The 90% Cost-Saving Blueprint

Where Savings Come From:

5. Challenges & Engineering Fixes

• Vibration Resonance:

  • Fix: Tuned mass dampers + FEA-simulated modal analysis.

• Lightning Strike Risk:

  • Fix: Unified grounding ring (low-impedance <5Ω) with surge protectors per platform.

• Maintenance Conflicts:

  • Fix: Automated scheduler with RFID technician access logs.

Conclusion: Collaboration is the New Competition

Multi-operator monopoles transform infrastructure from a cost center into a profit-generating shared asset. With smart platform design, unified power management, and military-grade spectrum isolation, operators can deploy faster, cheaper, and greener—while focusing capital on innovation, not steel.
