Item NO.:
AT-T65Order(MOQ):
10 MTGoods Stock:
10Payment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
Silver / As per CustomizationShipping Port:
Qingdao, ChinaLead Time：
2,000 MT / Month
Description：

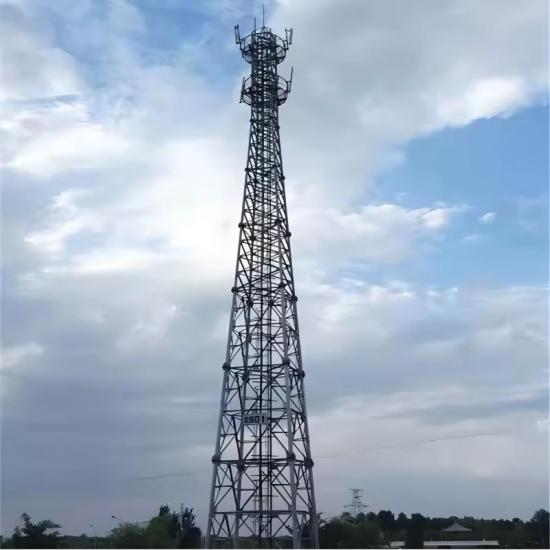

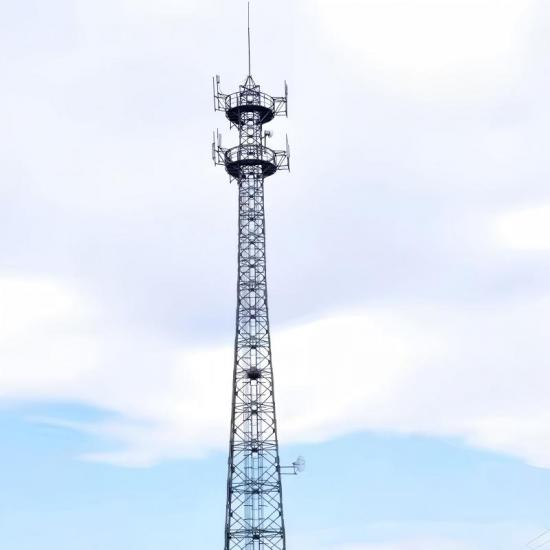

Product Name：Tubular Steel Tower
Type: Telecommunication Tower
Design Software：MS TOWER. ASM TOWER,PLS TOWER,SAP2000, ETC.
Height: 65 M
Wind Speed: 0--330KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.
ASTM A36, ASTM A575, GR50.
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization: ASTM A123/150 1461
Nuts or Bolts: Grade 8.8
Welding: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding ( SAW).
Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153
Life Time: More than 25 years
Supply Ability: 2,000 Tons Per Month
Product Details:
Compared with angle steel towers, the number of components is reduced, and the economic performance is good; it occupies a small area; it has a simple structure, is easy to transport and install, and has low requirements for secondary transportation; the structure is safe and reliable; the wind load coefficient is small.
Why Choose Us?
1.We have a strict quality management system and are certified to ensure that our customers will not have any problems when receiving and using the goods.
2.Imported advanced production equipment can ensure sufficient productivity and good operational stability, ensuring on-time delivery of quality and quantity for our customers.
3.Our long-term accumulation in this industry has given us a good reputation and credibility, and our high-quality products can be seen in major regions of the world.
Full Experience in the Industry
Precision Equipment
Large-scale laser cutting equipment can make the parameters of accessories on the tower smaller. Coupled with professional worker operation and technical guidance, excellence will be penetrated into each of our products.
Mature Production Line and Sophisticated Employees
Hot-dip Galvanization:

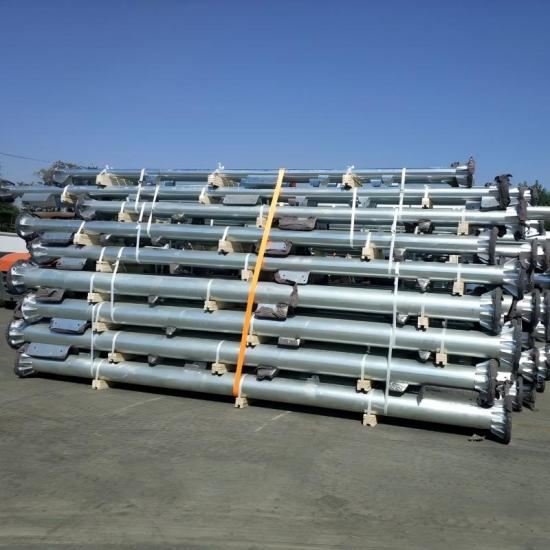

Hot-dip galvanization thickness over 100 microns, having strong anti-rust and anti-corrosion capabilities and strictly according to ASTM A123 standard.
Professional Technical Engineering Team

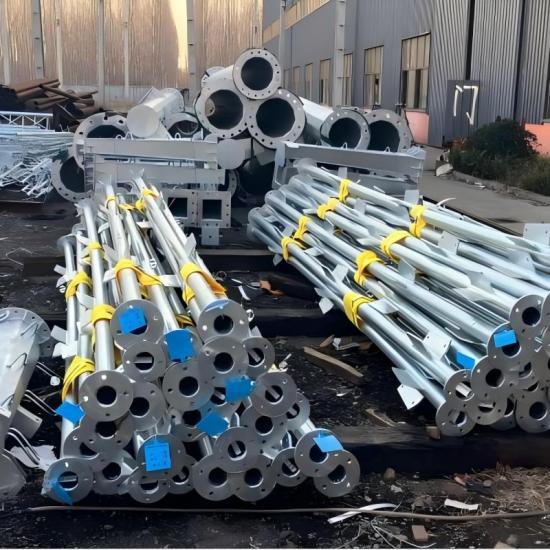

Seamless steel pipes are used as tower column materials. Through optimized design, the weight of the tower is minimized and land occupation is reduced. This comprehensively helps operators reduce the cost of communication tower construction projects and reduce operation and maintenance costs.
Tubular steel tower can mount more equipment, has a strong load capacity, has a small number of poles, and is easy to install.
The steel tube tower body is made of steel tubes. Three or four main steel tubes are planted on the ground as the skeleton, and are then fixed with auxiliary horizontal/inclined steel tubes.
Steel tube towers have a small number of poles, are easy to install, have a high unit price of materials, and require a large amount of manufacturing and welding, requiring high processing accuracy.

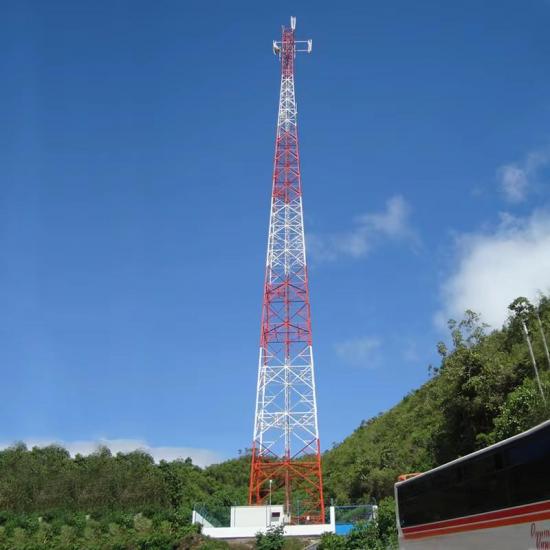

The tower body of the three-tube tower is made of steel pipes. The three main steel tubes are planted on the ground as the skeleton, and are supplemented by some horizontal and inclined steel materials for fixation. Compared with the traditional angle steel tower, the cross-section of the three-tube tower is triangular. , the figure is also slimmer. Therefore, it has a simple structure, a small number of parts, convenient construction, and a small footprint, so it saves money.
A 40-meter monopole tower is a tall, single-pole structure commonly used in the telecommunication industry to support antennas, microwave dishes, and other communication equipment for transmitting and receiving signals over long distances. These towers are designed to provide height and stability for various wireless communication applications, including cellular networks, radio communication, microwave links, and more.
110kV electric towers serve an important role in regional transmission and distribution at moderate voltages and tower heights. Lower than 230kV or 500kV systems. Set in concrete piers or steel grillage foundations anchoring the tower base.
A Radar Support Lattice Steel Tower is a specialized structure designed to elevate and support radar systems for applications such as air traffic control, weather monitoring, or military operations.
