60M Antenna and Microwave Guyed Wire Tower

Home Guyed Wire Tower

60M Antenna and Microwave Guyed Wire Tower

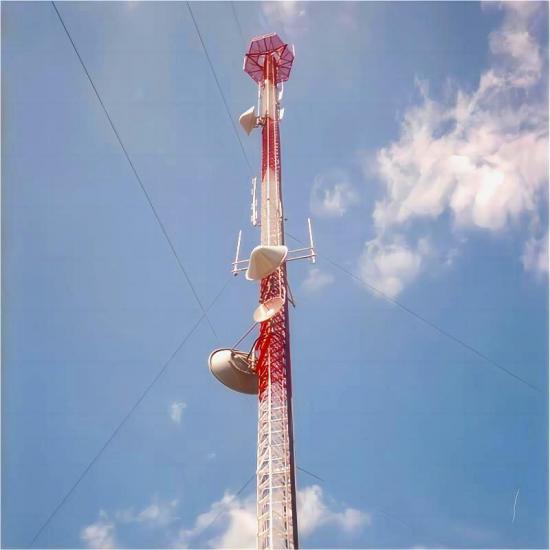

60M GW tower

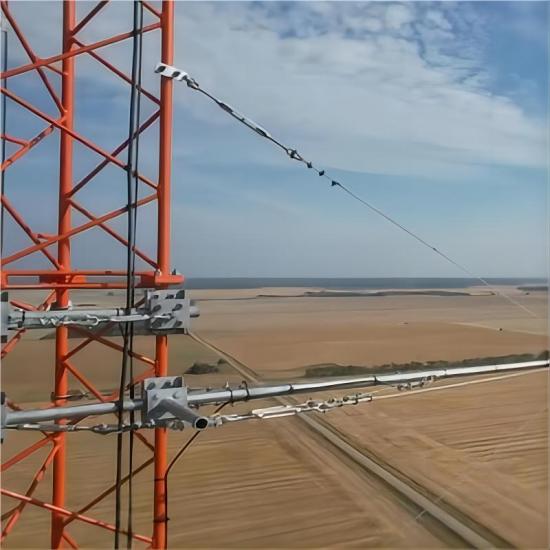

60M GW tower

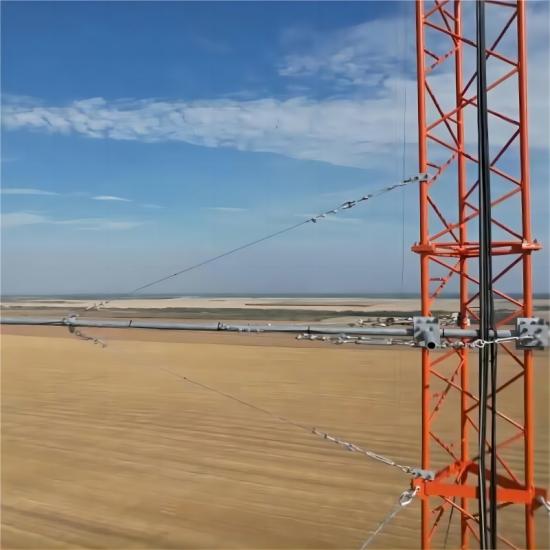

60M GW tower

60M Antenna and Microwave Guyed Wire Tower

Guyed Wire Tower needs to reserve a large space for cables and covers a large area. It is suitable for rural and urban roofs where land is not expensive.
  • Item NO.:

    AT-GW02
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    2,500 MT/ Month

The cable tower is composed of a tower head, a column and a cable. The tower head and columns are generally made of space trusses composed of angle irons, which have good overall stability and can withstand large axial pressure. The cables generally use high-strength steel strands, which can withstand large tensile forces, so The cable tower can make full use of the strength properties of the material and reduce material consumption.

antenna and microwave tower



Description:



Product Name: Guyed Wire Tower

Type: Telecommunication Tower

Design SoftwareMS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC.

Height: 9M-210M

Wind Speed: 0--330KM/H

Design standard: TIA/EIA-222-G/F/H

Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420

ASTM A36,  ASTM A575,  GR50.

EN/0025: S235JR   S235JO    S235JZ

EN/0025: S355JR   S355JO    S355JZ

Certificate: ISO9001:2008 SGS COC

Galvanized: Hot-dipped Galvanized

Galvanization: ASTM A123/150 1461

Nuts or Bolts: Grade 8.8

Welding: AWS D1.1

Method: CO2 Shielded Arc Welding.   Submerged Arc Welding (SAW).

Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153

Life Time: More than 25 years

Supply Ability: 2,500 Tons Per Month





Easy-to-assemble:

Guyed wire towers are often used in open mountainous areas and rural areas. They are quick to install and have a relatively simple structure.

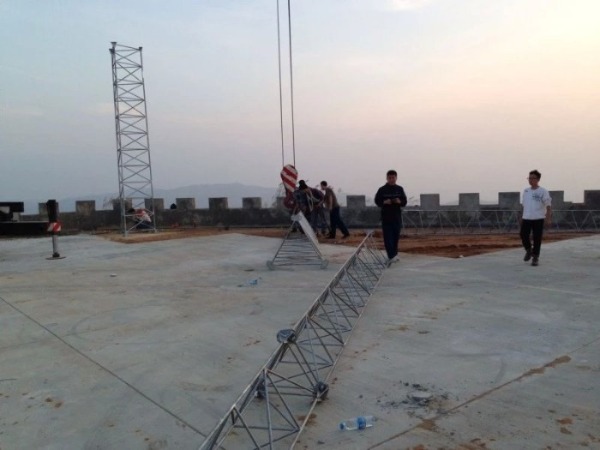

assembling





Galvanization:

Advanced galvanizing technology and a galvanized layer that far exceeds the international standard thickness can provide good anti-corrosion and anti-rust effects for the cable tower in subsequent use.









Packaging Details:

Good packaging can ensure that the product does not scratch the galvanized layer during transportation and ensures delivery quality.

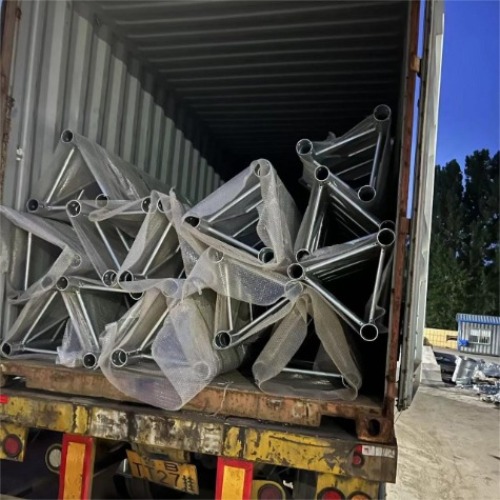

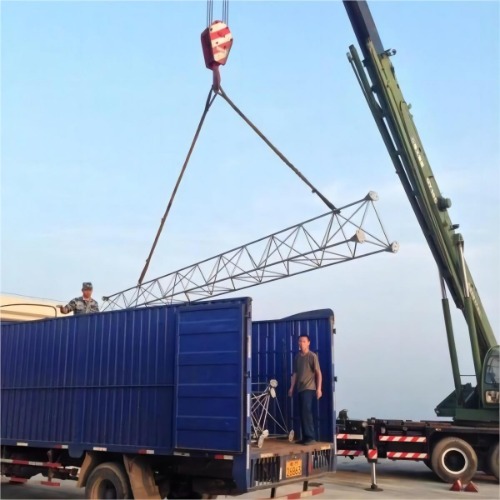

tower shipment




Altai Tower Introduction



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
