Item NO.:
AT-MCST-AOrder(MOQ):
1 SetGoods Stock:
2Payment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
As per CustomizationShipping Port:
Qingdao, China or as designatedLead Time：
6 Sets/ Month
| Parameter | Value |
|---|---|
| Stowed dimensions (L×W×H) | 7.9 m × 2.3 m × 3.4 m |
| Deployed footprint (L×W) | 7.9 m × 6.5 m |
| Lifting height (optional) | 25 m / 30 m |
| Telescopic sections | 5 |
| Total mast payload | 600 kg |
| Lifting / lowering speed | 0.25 m/s |
| Control interfaces | Wireless remote (RF) + local panel |
| Antenna mounting | 2 tiers, up to 6 antennas; each with frontal area ≤ 0.6 m² |
| Guy‑line system | 1 or 2 layers for wind resistance (survival wind speed ≥ 40 m/s) |

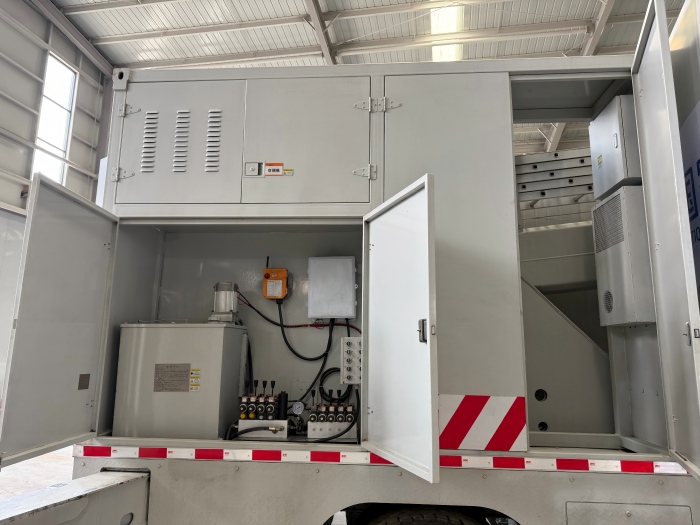

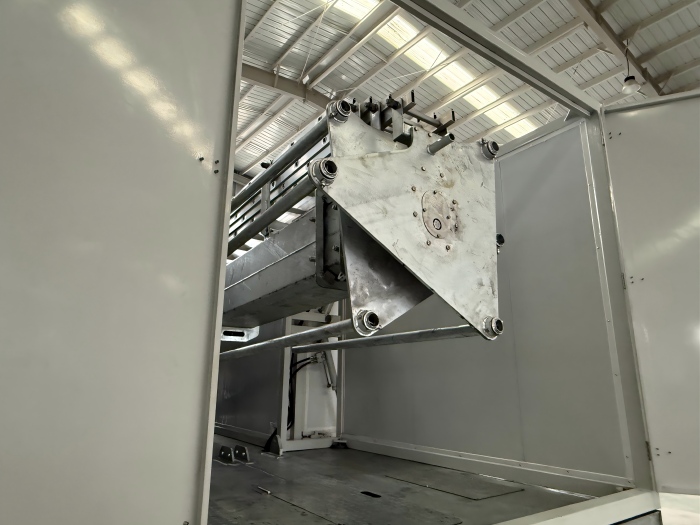

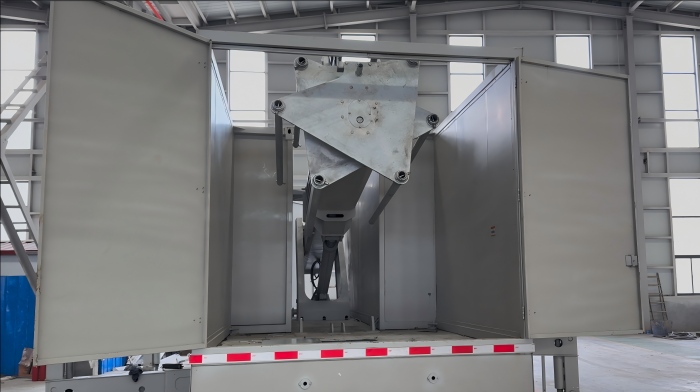

· Fully enclosed hydraulic system with automatic levelling and telescopic control.
· Operable via wireless remote from safe distance – single‑person deployment.

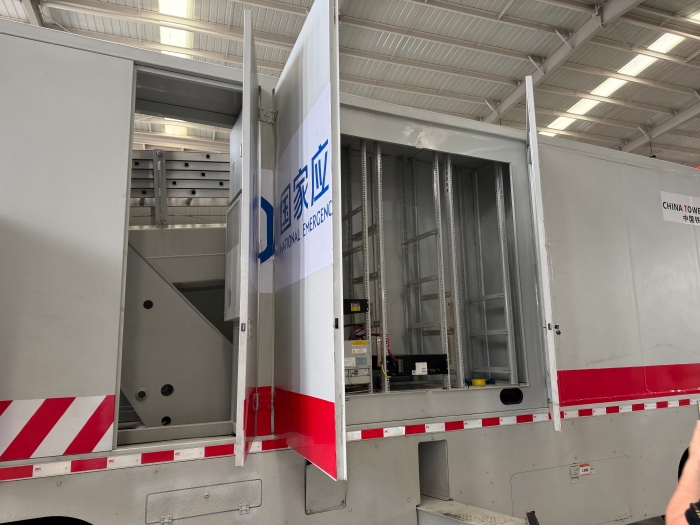

· Primary source: High‑frequency switching rectifier + online UPS (uninterruptible).
· Battery backup: LiFePO₄ battery pack with BMS (high energy density, long cycle life).
· Emergency generator: 10 kW diesel genset with auto‑start upon mains/battery failure.
· Renewable input: Solar panel charging interface for extended off‑grid endurance.

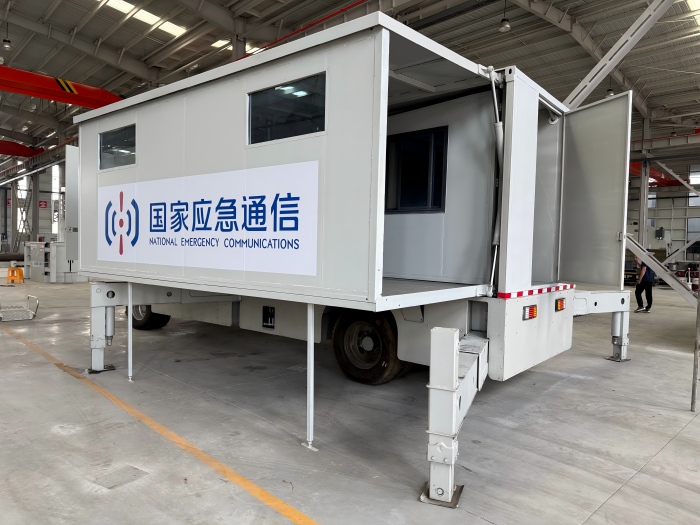

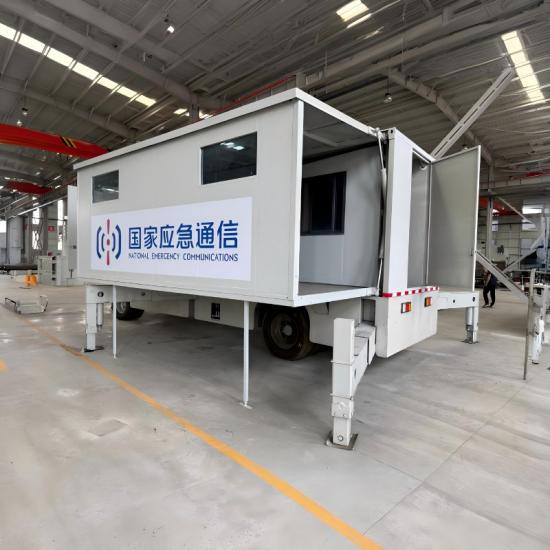

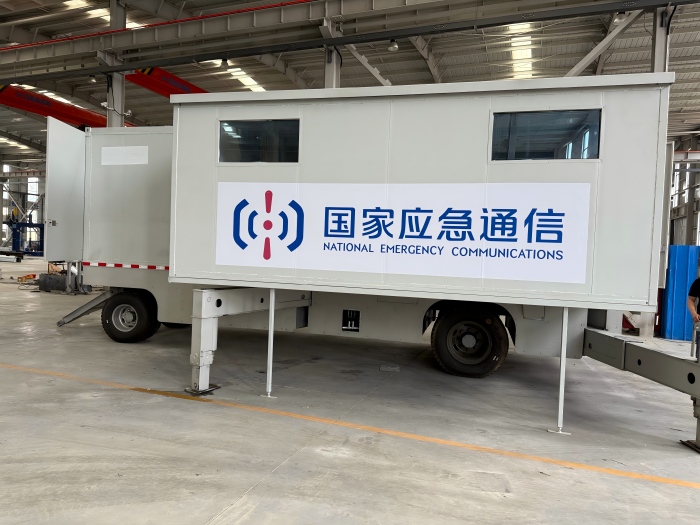

· Dimensions: 5.2 m (L) × 2.4 m (W), air‑conditioned.
· Equipped with conference table, large‑screen display, intercom and video conferencing terminals – serves as temporary Incident Command Post (ICP).
Dedicated compartment for storing rescue gear: inflatable boats, submersible pumps, sandbags, first‑aid kits, etc., enabling integrated “personnel‑vehicle‑material” coordination.
· Real‑time monitoring of: power voltage/current, battery status, enclosure temperature/humidity, smoke detection, door contact, and mast tilt.
· Remote alarm and status reporting via 4G/5G or satellite backhaul to NOC (Network Operations Centre).
· Dimensions: 2.2 m (L) × 1.2 m (W).
· Integrated charging interface (AC/DC) for drone batteries – supports aerial reconnaissance, delivery, and mapping missions without separate power sources.
· USB‑C and AC outlets for charging mobile phones, laptops, and portable radios – essential for evacuees and field crews.
· External LCD publicity screen (weatherproof) for broadcasting emergency alerts, public service announcements, or community information.
Standard mounting interfaces (pipe clamps, flanges) for additional equipment:
· Microwave or satellite backhaul antennas
· Weather sensors (anemometer, hygrometer, rain gauge)
· PTZ surveillance cameras with IR illumination
· High‑intensity LED floodlights for nighttime operations
· Rapid site acquisition: Compact stowed size enables transport on standard flatbed trucks; no crane or concrete foundation required.
· Sub‑minute deployment: Fully automated hydraulic lift – from stowed to 30 m operational height in less than 120 seconds.
· Island‑mode operation: Complete self‑containment (power, shelter, backhaul, monitoring) eliminates dependency on grid or fixed infrastructure.
· Multi‑RAT compatibility: Supports 2G/3G/4G/5G NR, TETRA, PMR, and Wi‑Fi – can be integrated with any baseband vendor’s RRU/BBU.
· Resilient backhaul options: Built‑in ports for fibre, microwave, or satellite (BGAN/VSAT) – ensures connectivity even when terrestrial links are severed.
· UAV synergy: Drone pad + charging extends operational reach, enabling aerial asset inspection and beyond‑line‑of‑sight relay.
· Extreme environment readiness: Guy‑line stabilisation, wide temperature range (-25°C to +55°C), and redundant power assure reliable performance in typhoons, floods, and high‑altitude regions.
· Natural disaster response: Earthquakes, floods, hurricanes, and forest fires – rapid restoration of public cellular and emergency services networks.

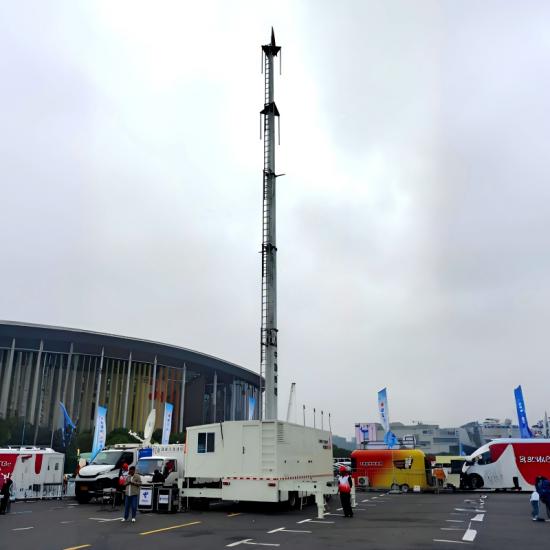

· Major event coverage: Sports tournaments, political summits, concerts – temporary capacity boost and dedicated security comms.
· Remote infrastructure projects: Oil/gas exploration, hydroelectric construction, mining – where fixed towers are impractical.
· Public safety & border patrol: Mobile command node for police, fire, and civil defence forces.
· 5G coverage on demand: Temporary fill‑in for coverage holes or during network upgrade periods.
Product Details

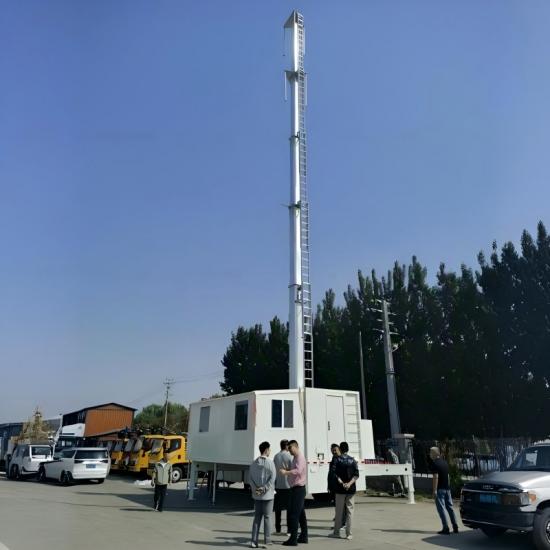

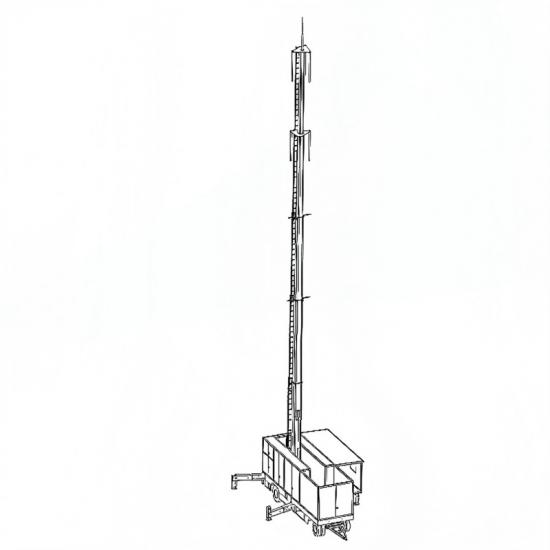

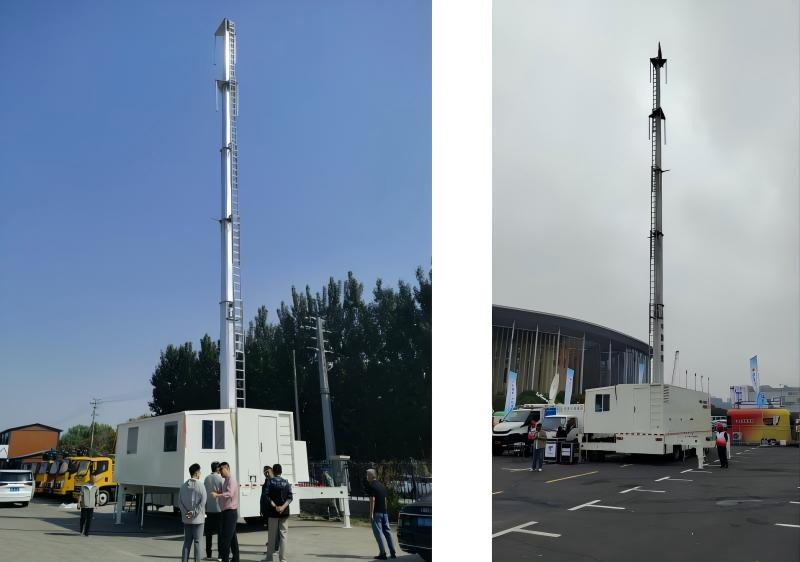

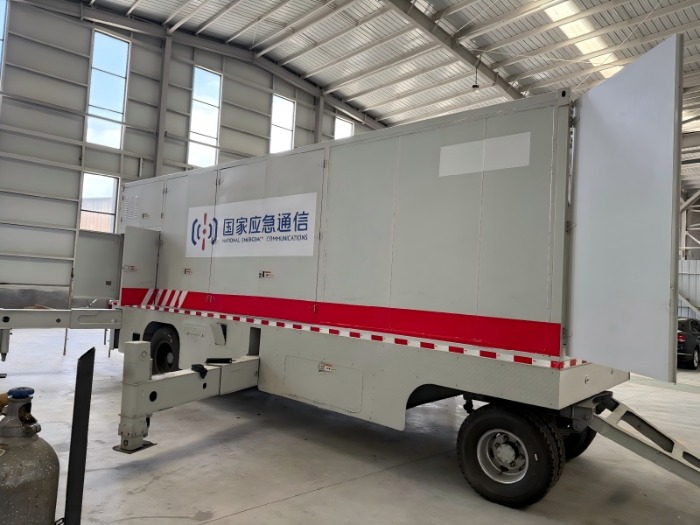

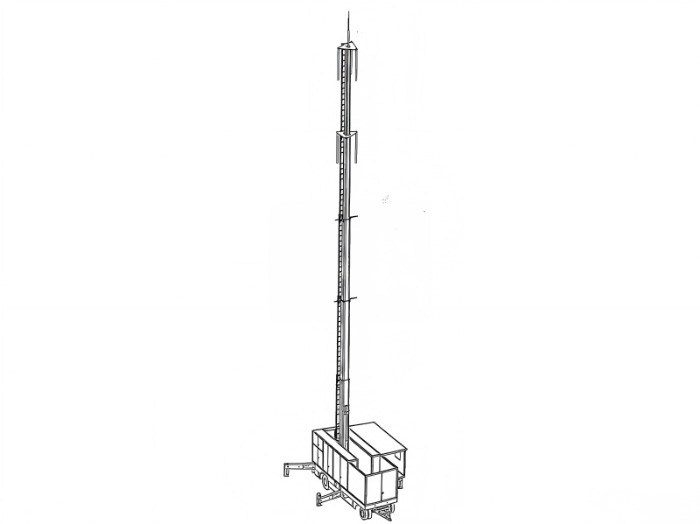

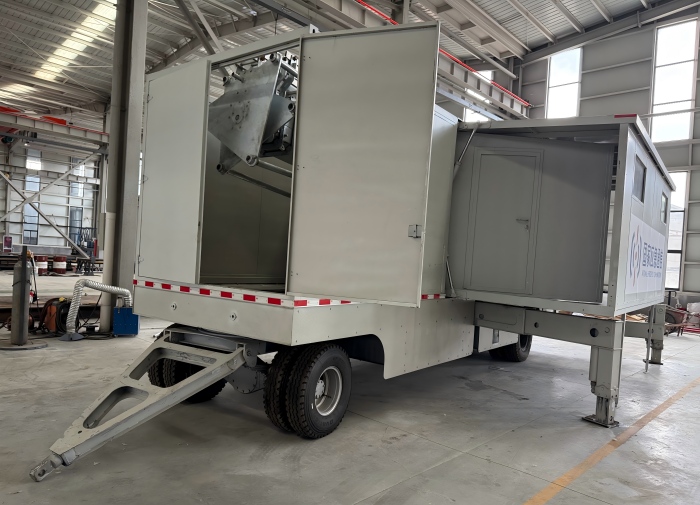

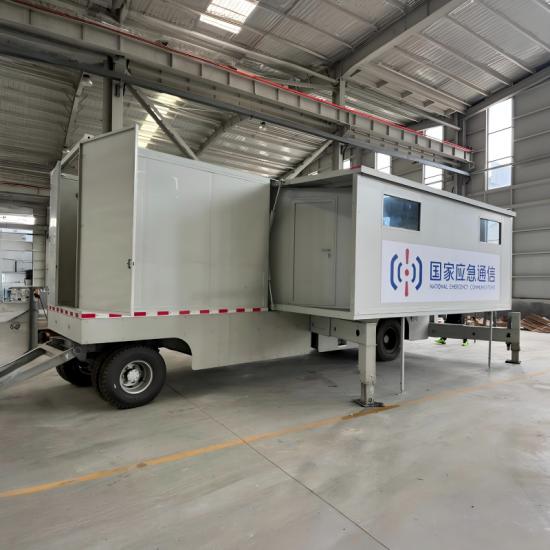

COWs are mobile trailer-mounted cell towers used to provide temporary cellular network coverage. The trailers contain antennas, transceivers, and all the electronics needed for cellular service mounted on a truck or trailer.
Cell on Wheels (COW) is a portable base station used to provide temporary cellular network coverage for high-profile events and emergency situations where existing base stations become damaged, or during natural disasters such as bush fires and floods.
The base station equipment installed on the flatbed trailer can be used in emergency situations, for example, when the transmission tower of a certain base station collapses, or when an accident occurs to the base station equipment, the vehicle-mounted base station can be quickly and temporarily replaced to maintain communication in the community.
Cell on Wheels are mobile, they don’t require a foundation and need only grounding and commercial power. Imagine all the possibilities for their use.
The latest design for emergency telecommunication, with its own battery, is smaller and lighter than ordinary cell on wheels, making it more suitable for flexible and mobile deployment. The maximum height can be raised to 10 meters, and each container can hold 4 pieces of equipment.
Multi-terrain 2x4 & 4x4 HD Commercial Trucks; 19,500-33,000 lb (8,843 kg- 14,966 kg) Capacity GVWR; Air or Hydraulic Brakes
A "hydraulic telecom cell on wheels" typically refers to a mobile unit that combines hydraulic components with telecommunication equipment, often used in emergency situations, temporary setups, or remote locations where rapid deployment of communication infrastructure is needed.
A 40-meter Cellular on Wheels (COW) unit is a versatile and mobile solution for extending cellular coverage and capacity in temporary or emergency situations, offering reliable communication services in areas where additional network support is required.
