10M Telecom Quick Deploy Cell on Wheels ( COW)

Home Cell on Wheels (COW)

10M Telecom Quick Deploy Cell on Wheels ( COW)

10M Cell on Wheels
10M Cell on Wheels
10M Cell on Wheels

10M Telecom Quick Deploy Cell on Wheels ( COW)

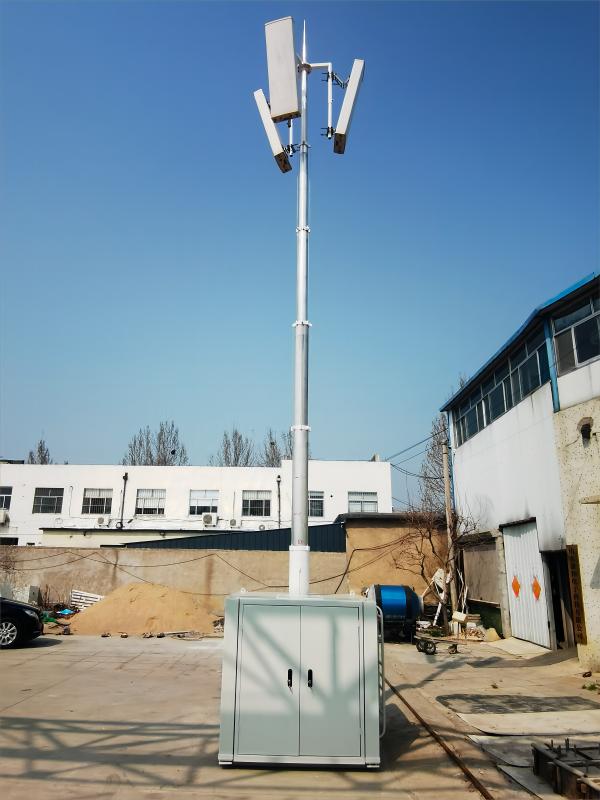

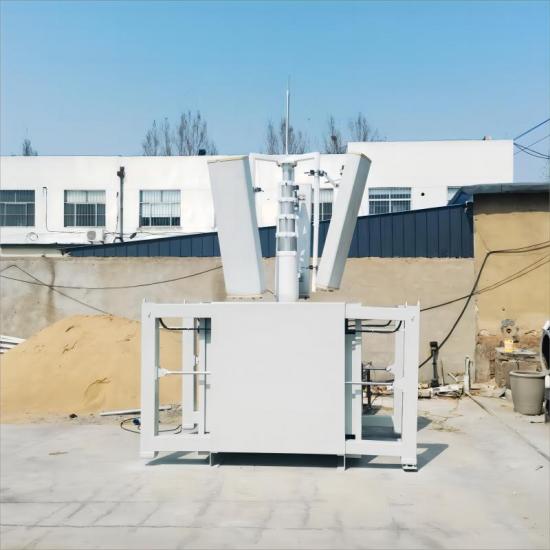

The latest COW design, with its own battery, is smaller and lighter than ordinary cell on wheels, making it more suitable for flexible and mobile deployment. The maximum height can be raised to 10 meters, and each container can hold 4 pieces of equipment.
  • Item NO.:

    AT-C10
  • Order(MOQ):

    1 Set
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    20 Sets/ Month

The newest mobile telecom cell on wheels, can sufficiently live up to the perfect equipment in emergency.

quick deploy telecom station



Description:

Product Name:COW( CELL ON WHEELS) TOWER

Type: Telecommunication Tower For Mobile

Design Software:MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC.

Height: 10 meters

Wind Speed: 0--300KM/H

Design standard: TIA/EIA-222-G/F/H

Material: GB/T700:Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420

ASTM A36,  ASTM A575,  GR50.

EN/0025: S235JR   S235JO    S235JZ

EN/0025: S355JR   S355JO    S355JZ

Certificate: ISO9001:2008 SGS COC

Galvanized: Hot-dipped Galvanized

Galvanization: ASTM A123/150 1461

Nuts or Bolts: Grade 8.8

Welding: AWS D1.1

Method: CO2 Shielded Arc Welding.   Submerged Arc Welding ( SAW).

Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153

Life Time: More than 20 years

Supply Ability: 20 SET/ SETS Per Month



Product Details:

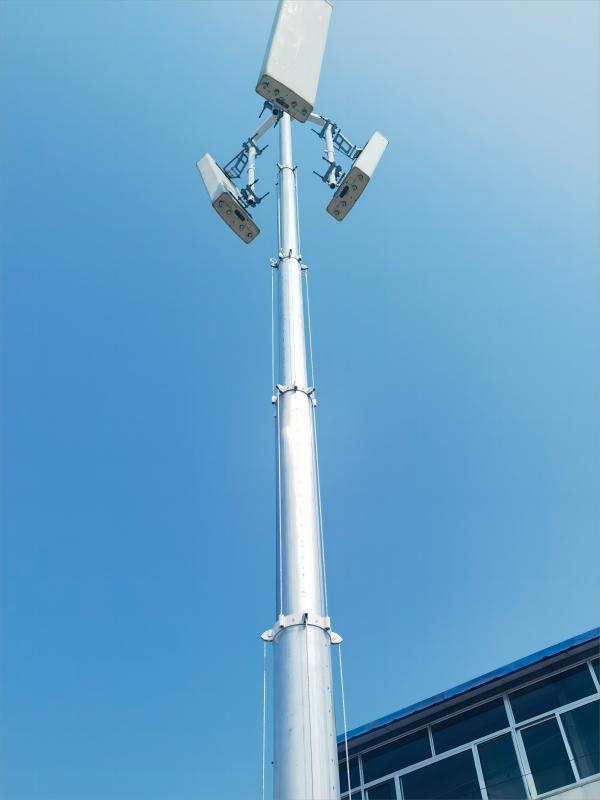

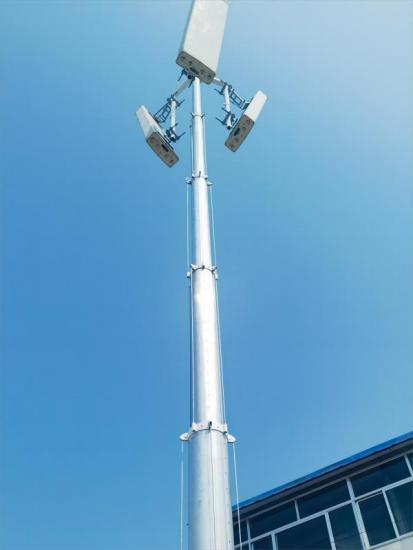

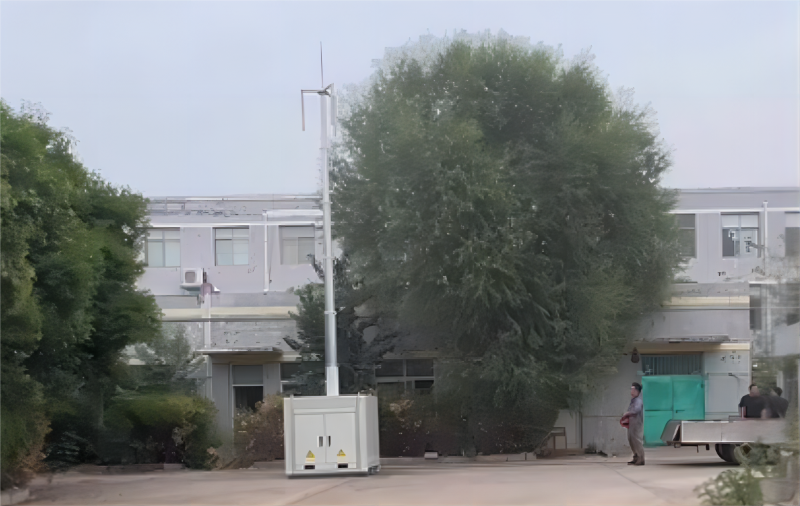

Small measurement ensures quick deploy, easy-to-use and less conditional limitation. Powered by battery and operation through remote control, it can be put into use fast when emergency. It can be loaded with 3 pairs of antenna and withstand over 360 kilos weight.

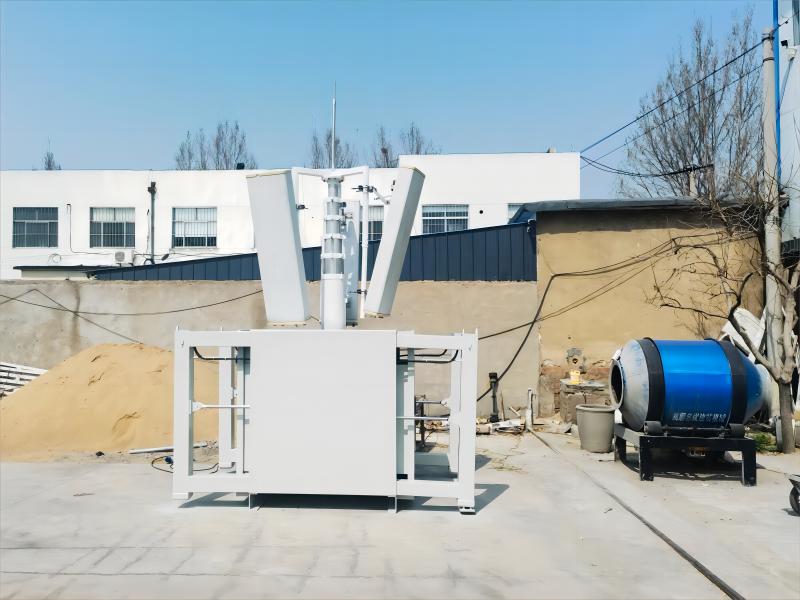

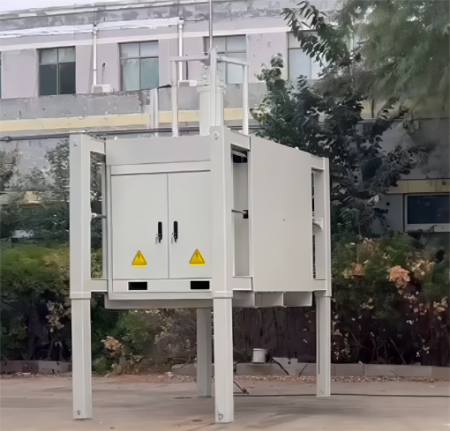

small cow  free-from installation





Shipment Reference

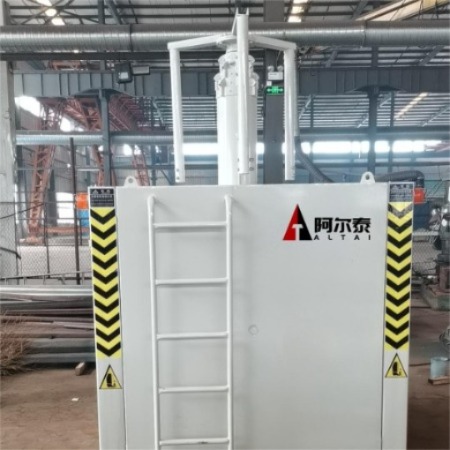

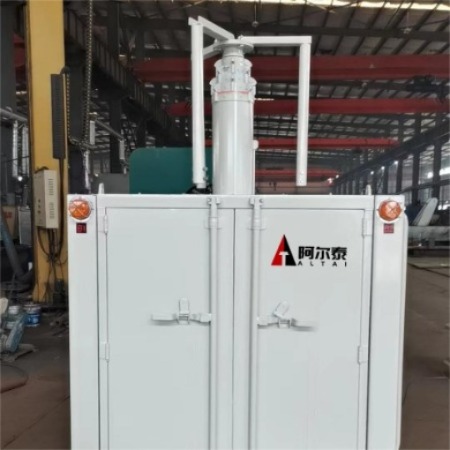

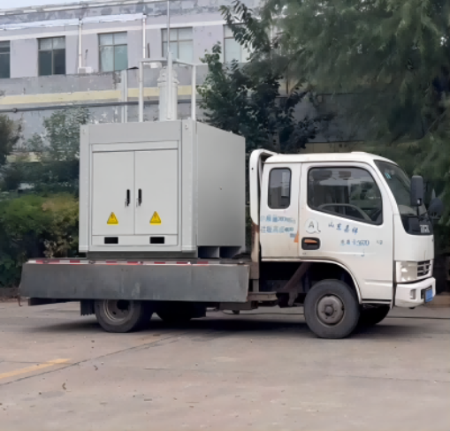

Only 2MT's weight and 1.6M3's size, perfect for quick reaction of deployment and retreat.

10m station base   quick appliance telecom tower



Similar Product Series

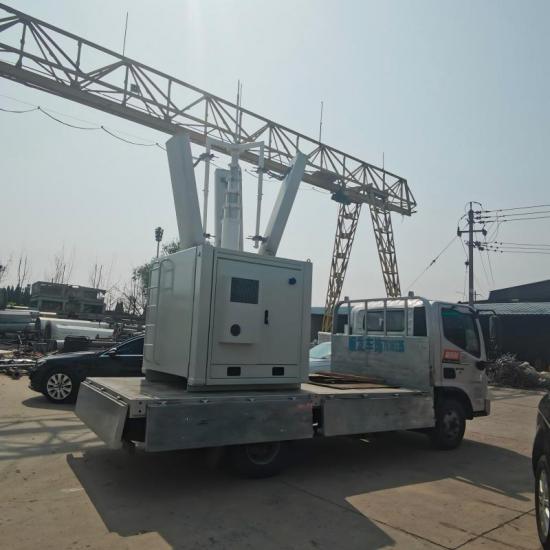

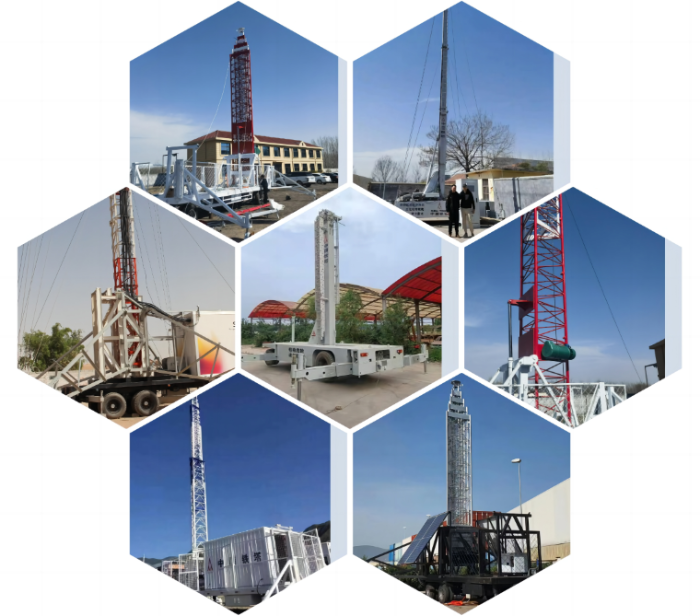

Down to 10meters' station, up to 35 meters' cell on wheels, we'll never bail on you.

quick deploy cow




Introduction-Altai Tower Co., Ltd



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
