Cable Rigging Screws Turnbuckle ( US Type)

Home Tower Accessories

Cable Rigging Screws Turnbuckle ( US Type)

US Turnbuckle
US Turnbuckle
US Turnbuckle
US Turnbuckle

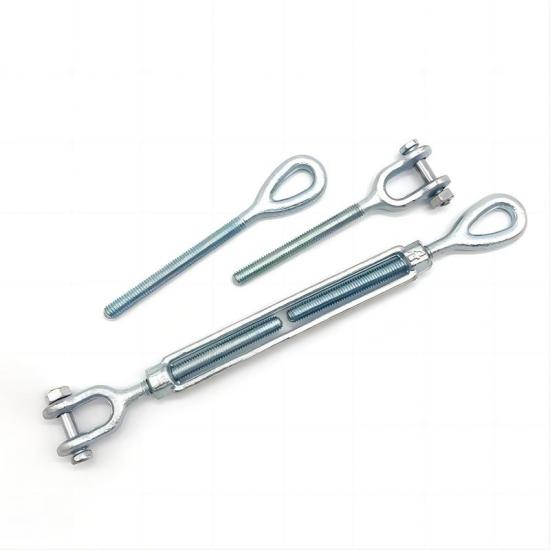

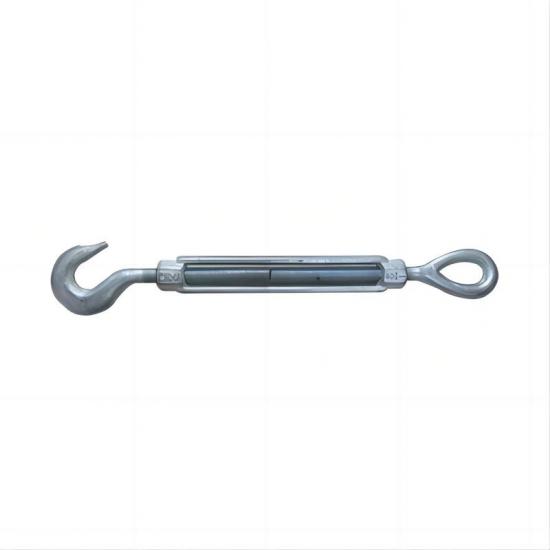

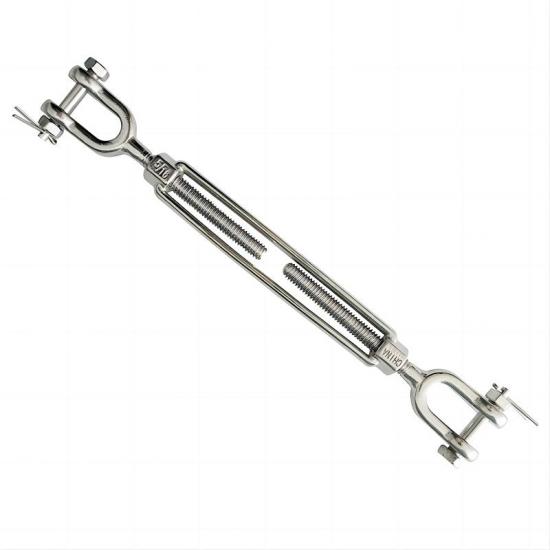

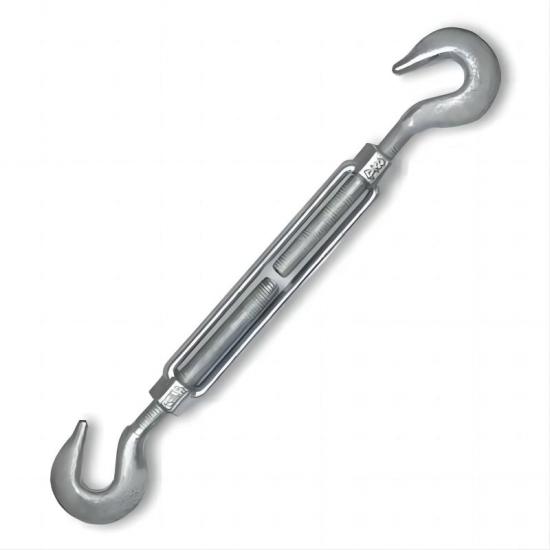

Cable Rigging Screws Turnbuckle ( US Type)

The turnbuckle uses a screw to expand and contract, and can adjust the tightness of the wire rope. The components can be bundled during component transportation and loosened during installation and correction.
  • Item NO.:

    AT-TB01
  • Order(MOQ):

    500 Sets
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    Silver / as per customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    6,000 Sets/ Month

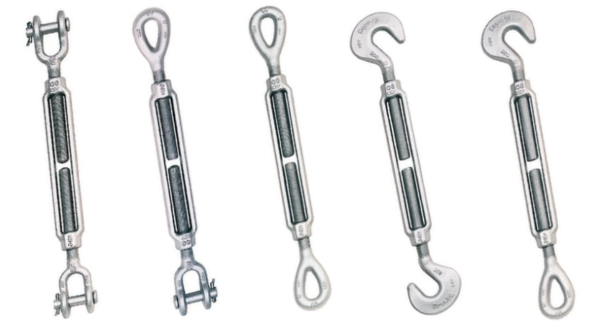

Turnbuckle screws are used to tighten the wire rope and adjust the tightness. The OO type is used in situations where disassembly is infrequent, the CC type is used in situations where disassembly is frequent, and the CO type is used in situations where one end is frequently disassembled and the other end is infrequently disassembled. Turnbuckle screws are mainly divided into three types: cast malleable steel, ordinary carbon steel, and forged according to different process forming methods.

Currently, there are two main types on the market: ordinary carbon steel and forged. Ordinary carbon steel turnbuckles are mainly used for static binding and stability in unimportant occasions. Scenes, such as garden windbreaks, agricultural greenhouses, etc. Forged turnbuckle screws are used for lifting and freight bundling reinforcement. Such as cargo bundling, sling connections, steel structure cable rod connectors, etc. in logistics.

Surface treatment: generally electroplating and hot plating, which mainly play a role in preventing rust.

turnbuckles

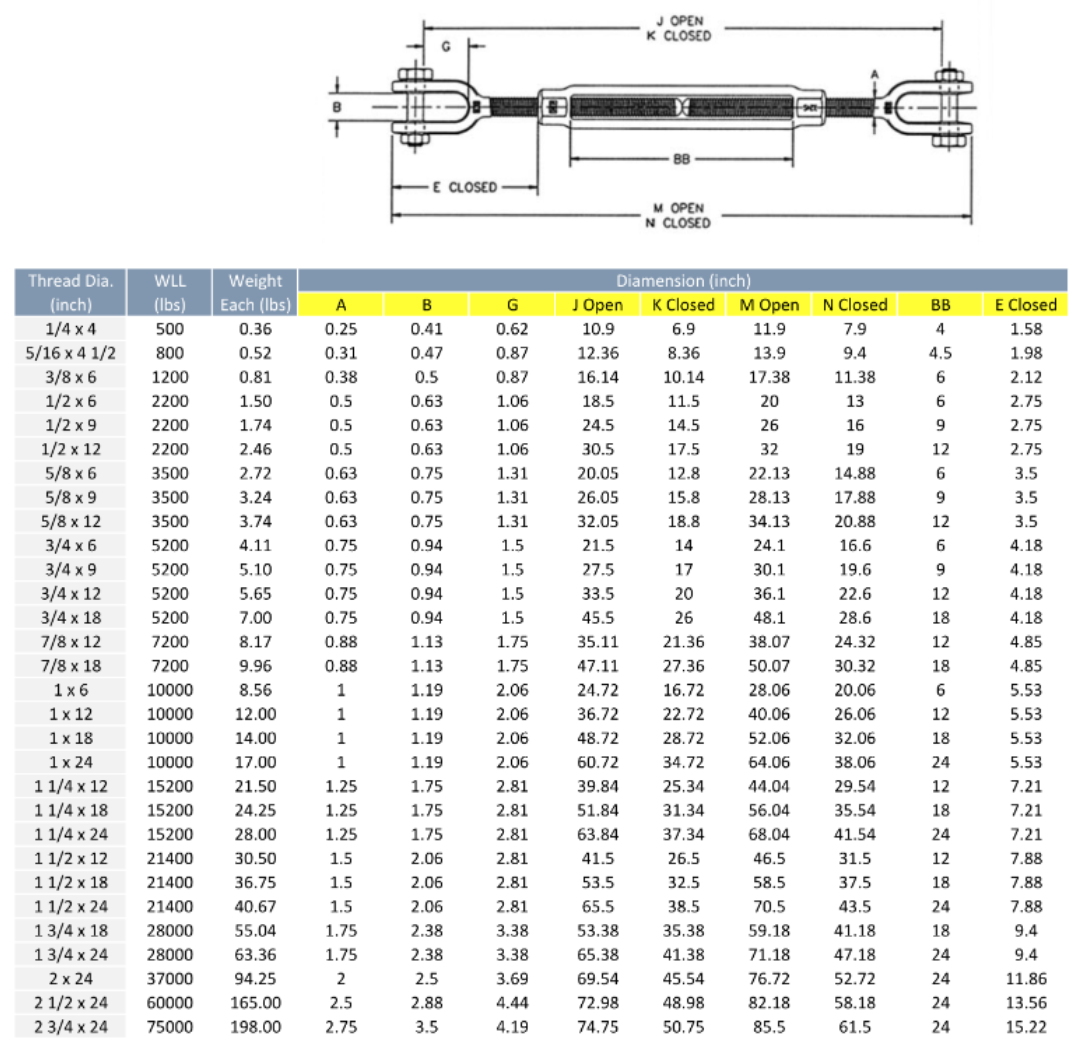

Product Description:

Product Name
US Type Turnbuckle
Material
Carbon steel,stainless steel
Size
“1/4---2-3/4”
Surface
Electrc-galvanized(Hot Dip Galvanized)
Structure
Cc.oo.co. Jaw and jaw

Packaging and Shipment:








Qingdao Altai Tower Co., Ltd



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
