Communication Tower Manufacturer

Wire Connector Copper Cable Lugs Terminal Crimp

Home Tower Accessories

Wire Connector Copper Cable Lugs Terminal Crimp

Lugs of copper
Lugs of copper
Lugs of copper

Wire Connector Copper Cable Lugs Terminal Crimp

Copper terminal blocks are devices used in electrical circuits to ensure reliable and convenient wiring. A special crimping plier is used at the end of the wire to connect the copper terminal block to the wire.
  • Item NO.:

    AT-CL
  • Order(MOQ):

    5,000 PCS
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    Copper or as per customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    20,000 pcs per month

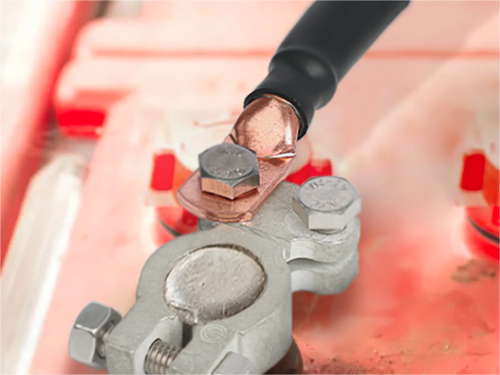

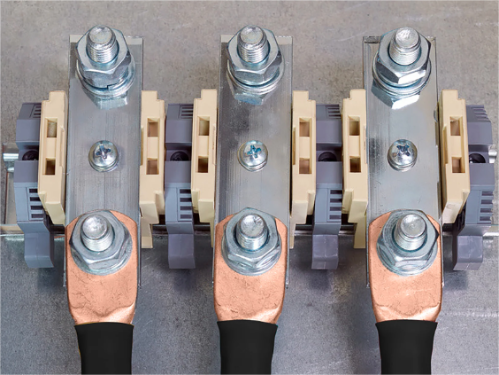

Wire lugs are often used for cable end connections and splices, making the connection between cables and electrical appliances stronger and safer. It is a commonly used material in construction, electrical equipment and connections, etc. When connecting general wires to terminal blocks, the corresponding wiring connection terminals must be used for cable end connections in accordance with national wiring regulations. If it is a multi-stranded copper wire above 4mm², a wiring lug must be installed and then connected to the terminal block. The product has good appearance specifications, good electrical conductivity and safety.

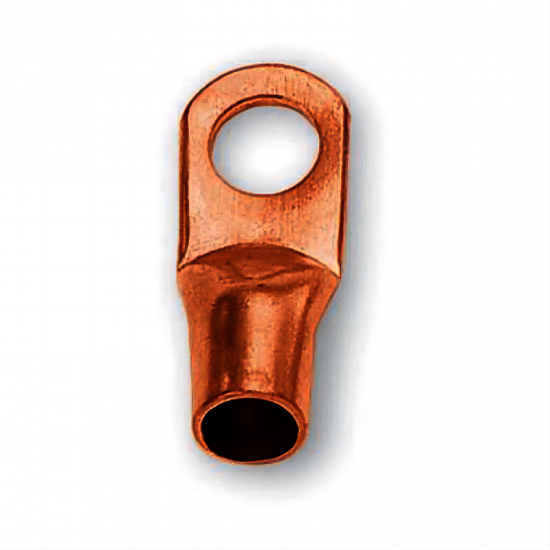

copper wire lugs connecter



Product Description:

Product Name: Copper Lugs

Place of Origin:Shandong, China

Type: Crimp Terminal

Material: Copper, PVC, Brass

Application: Low Voltage

Tensile Strength: 10.4Mpa

Imax: 19A

Rated Voltage: 220V

Certification: CE,ROSE

Wire Size: 0.5-1.5mm /1.5-2.5mm /2.5-4mm/ 4-6mm

A.W.G: 22-16 AWG /16-14 AWG /14-12 AWG /12-10 AWG

Color: Copper or Customized

Packaging Details: 100 pcs per Bag, 10 bagss per Box, 25 box per Cartoon

Lead-time: 15-30 Days

Productivity: 20,000 pcs per month

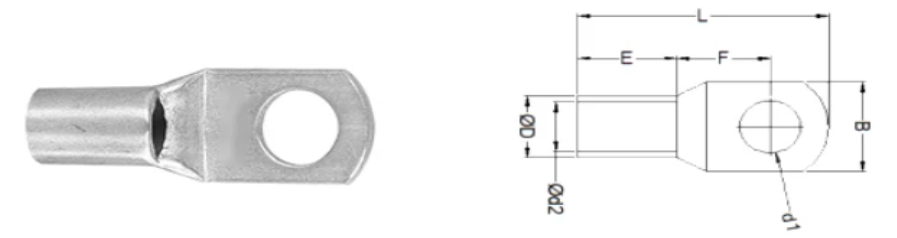

cable wire lugs





Items

d1

d2

D

B

E

F

L

AT-CL-01

6.2

5.3

6.6

11

12

9.5

28

AT-CL-02

8.5

5.3

6.6

13

12

10.5

30.5

AT-CL-03

10.5

5.3

6.6

14.5

12

10.5

30.5

AT-CL-04

6.5

7

8.5

12

13

10.5

31

AT-CL-05

8.5

7

8.5

14

13

11.5

33

AT-CL-06

10.5

7

8.5

15

13

11.5

33

AT-CL-07

8.5

8.3

10

14

15

13

37

AT-CL-08

8.5

8.3

10

14

15

13

37

AT-CL-09

10.5

8.3

10

16

15

14

38

AT-CL-10

12.5

8.3

10

17

15

14

38

AT-CL-11

8.5

9.5

11.5

18

17

16

43

AT-CL-12

10.5

9.5

11.5

18

17

16

43

AT-CL-13

12.5

9.5

11.5

19

17

16

45

AT-CL-14

14.5

9.5

11.5

20

17

16

45

AT-CL-15

8.5

11.5

14

20.5

20

20

52

AT-CL-16

10.5

11.5

14

20.5

20

20

52

AT-CL-17

12.5

11.5

14

20.5

20

20

52

AT-CL-18

14.5

11.5

14

20.5

20

20

52

AT-CL-19

8.5

13.7

16.5

24.5

23

22

58

AT-CL-20

10.5

13.7

16.5

24.5

23

22

58

AT-CL-21

12.5

13.7

16.5

24.5

23

22

58

AT-CL-22

14.5

13.7

16.5

24.5

23

22

58

AT-CL-23

16.5

13.7

16.5

24.5

23

22

58

AT-CL-24

8.5

15

18

27

24

25

63

AT-CL-25

10.5

15

18

27

24

25

63

AT-CL-26

12.5

15

18

27

24

25

63

AT-CL-27

14.5

15

18

27

24

25

63

AT-CL-28

16.5

15

18

27

24

25

63



Product Overview:

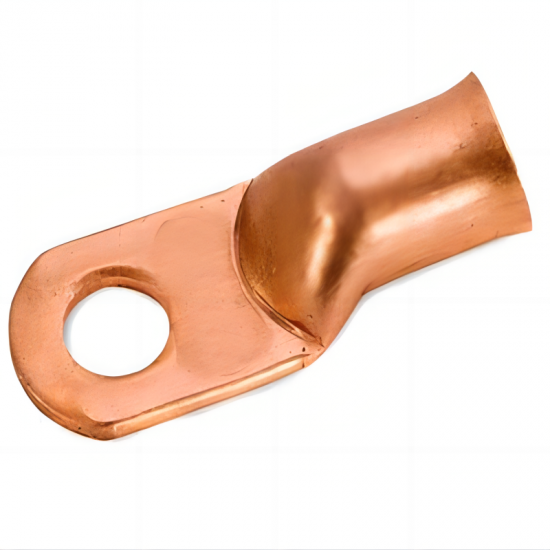

The copper lug are an accessory product used to achieve electrical connections. The copper nose is a connector used to connect wires and cables to electrical equipment. The top side is the fixed screw edge, and the end is the stripped copper core of the wire and cable.

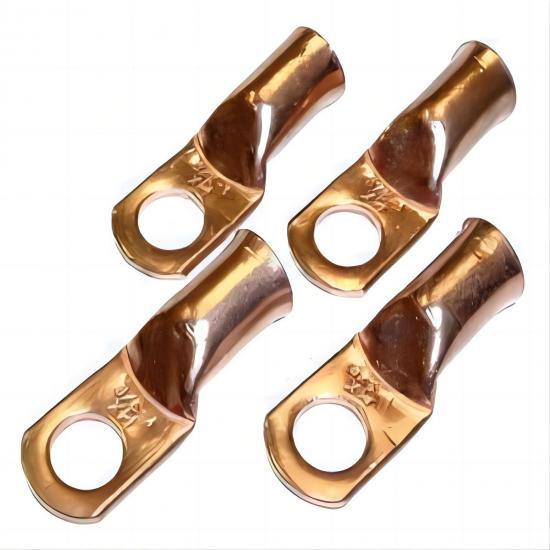

cable wire connector  wire connect





Packaging Details:

Cable lugs are packed in a plastic box, and then packaged in a carton.

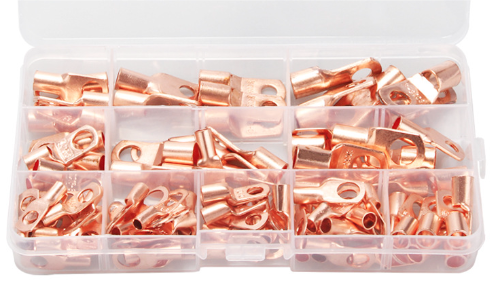

copper wire connectors package copper wire connecter package




About us--Altai Tower



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
